NEW QUESTION 1
While working with software images, an engineer observes that Cisco DNA Center cannot upload its software image directly from the device. Why is the image not uploading?

• A. The device must be resynced to Cisco DNA Center.
• B. The software image for the device is in install mode.
• C. The device has lost connectivity to Cisco DNA Center.
• D. The software image for the device is in bundle mode

Answer: B

NEW QUESTION 2

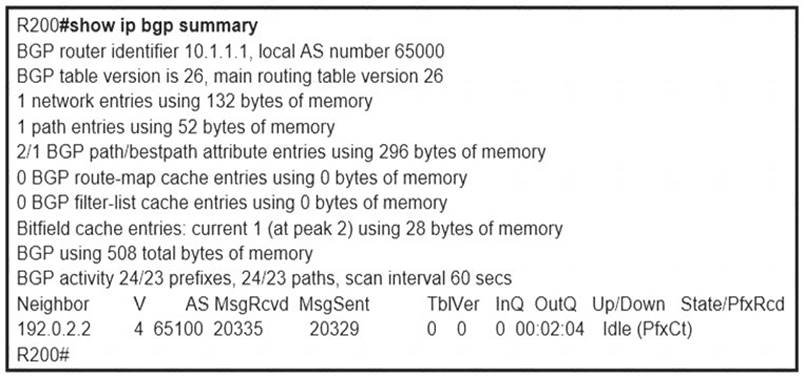

Refer to the exhibit.

In which circumstance does the BGP neighbor remain in the idle condition?

• A. if prefixes are not received from the BGP peer
• B. if prefixes reach the maximum limit
• C. if a prefix list is applied on the inbound direction
• D. if prefixes exceed the maximum limit

Answer: D

NEW QUESTION 3

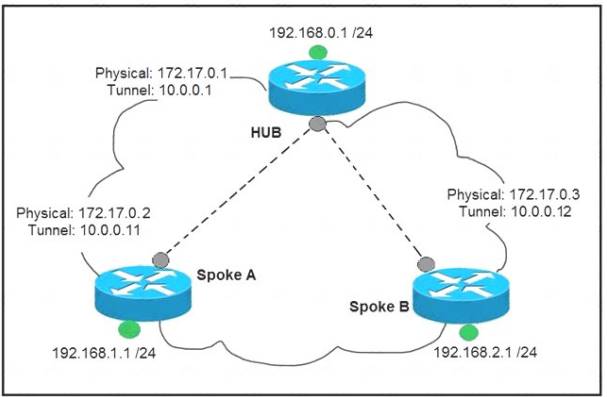

Refer to the exhibit.

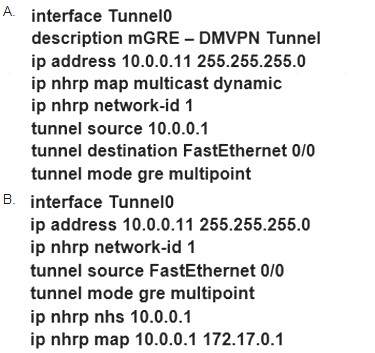

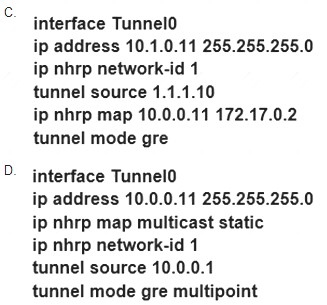

Which interface configuration must be configured on the spoke A router to enable a dynamic DMVPN tunnel with the spoke B router?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

NEW QUESTION 4
Which transport layer protocol is used to form LDP sessions?

• A. UDP
• B. SCTP
• C. TCP
• D. RDP

Answer: C

NEW QUESTION 5
Refer to the exhibit.

An administrator noticed that after a change was made on R1, the timestamps on the system logs did not match the clock. What is the reason for this error?

• A. An authentication error with the NTP server results in an incorrect timestamp.
• B. The keyword localtime is not defined on the timestamp service command.
• C. The NTP server is in a different time zone.
• D. The system clock is set incorrectly to summer-time hours.

Answer: D

NEW QUESTION 6
Which configuration enabled the VRF that is labeled “Inet” on FastEthernet0/0?

• A. R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0
• B. R1(config)#ip vrf Inet FastEthernet0/0
• C. R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0 R1(config-if)#ip vrf forwarding Inet
• D. R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0

Answer: C

NEW QUESTION 7

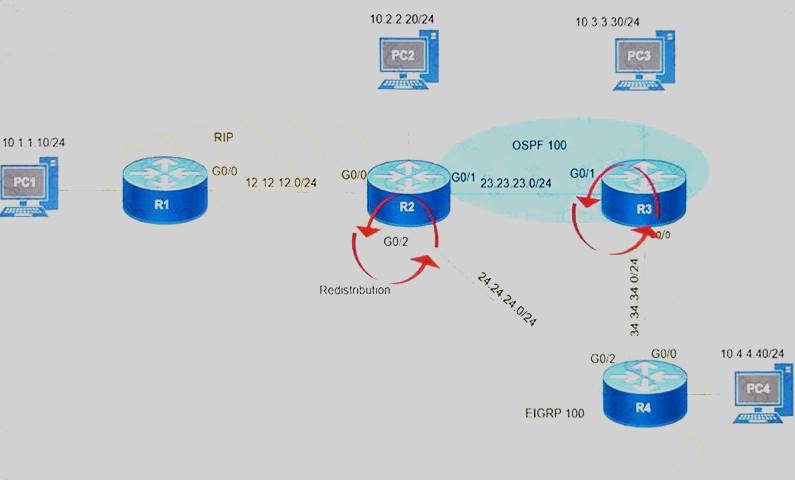

Refer to the exhibit.

After redistribution is enabled between the routing protocols; PC2, PC3, and PC4 cannot
reach PC1. Which action can the engineer take to solve the issue so that all the PCs are reachable?

• A. Set the administrative distance 100 under the RIP process on R2.
• B. Filter the prefix 10.1.1.0/24 when redistributed from OSPF to EIGRP.
• C. Filter the prefix 10.1.1.0/24 when redistributed from RIP to EIGRP.
• D. Redistribute the directly connected interfaces on R2.

Answer: B

NEW QUESTION 8

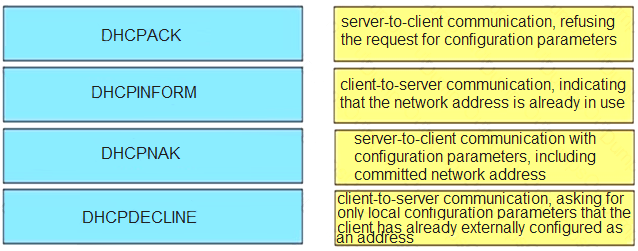

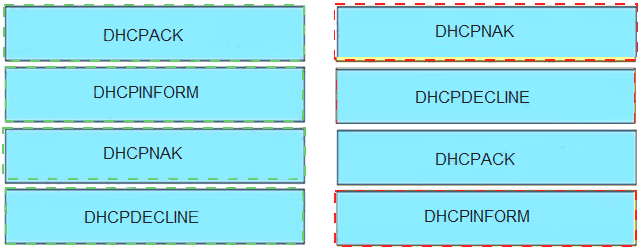

Drag and drop the DHCP messages from the left onto the correct uses on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 9

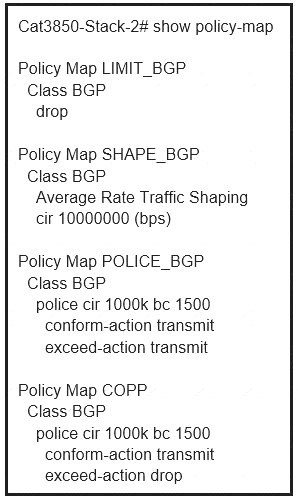

Refer to the exhibit.

Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and ignores BGP traffic that is sent at higher rate?

• A. policy-map SHAPE_BGP
• B. policy-map LIMIT_BGP
• C. policy-map POLICE_BGP
• D. policy-map COPP

Answer: D

NEW QUESTION 10
What is a prerequisite for configuring BFD?

• A. Jumbo frame support must be configured on the router that is using BFD.
• B. All routers in the path between two BFD endpoints must have BFD enabled.
• C. Cisco Express Forwarding must be enabled on all participating BFD endpoints.
• D. To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.

Answer: C

NEW QUESTION 11

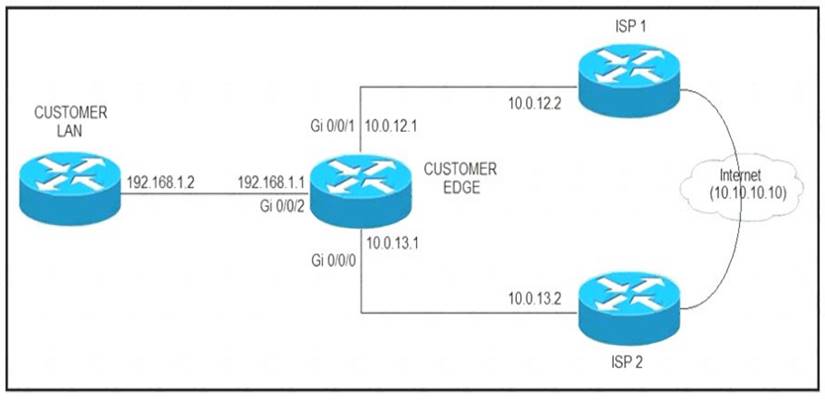

Refer to the exhibit.

ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to
achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?

• A. Start-time 00:00
• B. Start-time 0
• C. Start-time immediately
• D. Start-time now

Answer: D

NEW QUESTION 12
Which statement about IPv6 RA Guard is true?

• A. It does not offer protection in environments where IPv6 traffic is tunneled.
• B. It cannot be configured on a switch port interface in the ingress direction.
• C. Packets that are dropped by IPv6 RA Guard cannot be spanned.
• D. It is not supported in hardware when TCAM is programmed.

Answer: A

NEW QUESTION 13
Refer to the exhibit.

Network operations cannot read or write any configuration on the device with this
configuration from the operations subnet. Which two configurations fix the issue? (Choose two.)

• A. Configure SNMP rw permission in addition to community ciscotest.
• B. Modify access list 1 and allow operations subnet in the access list.
• C. Modify access list 1 and allow SNMP in the access list.
• D. Configure SNMP rw permission in addition to version 1.
• E. Configure SNMP rw permission in addition to community ciscotest 1.

Answer: AB

NEW QUESTION 14
An engineer is trying to copy an IOS file from one router to another router by using TFTP. Which two actions are needed to allow the file to copy? (Choose two.)

• A. Copy the file to the destination router with the copy tftp: flash: command
• B. Enable the TFTP server on the source router with the tftp-server flash: <filename> command
• C. TFTP is not supported in recent IOS versions, so an alternative method must be used
• D. Configure a user on the source router with the username tftp password tftp command
• E. Configure the TFTP authentication on the source router with the tftp-server authentication local command

Answer: AB

NEW QUESTION 15
A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?

• A. service timestamps log uptime
• B. clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00
• C. service timestamps log datetime localtime show-timezone
• D. clock calendar-valid

Answer: A

NEW QUESTION 16

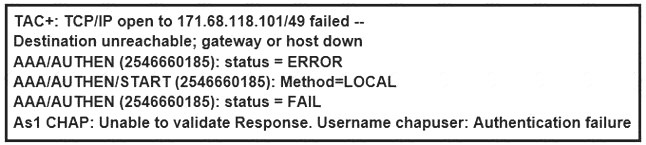

Refer to the exhibit.

Why is user authentication being rejected?

• A. The TACACS+ server expects “user”, but the NT client sends “domain/user”.
• B. The TACACS+ server refuses the user because the user is set up for CHAP.
• C. The TACACS+ server is down, and the user is in the local database.
• D. The TACACS+ server is down, and the user is not in the local database.

Answer: D

NEW QUESTION 17
Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?

• A. router ospfv3 1address-family ipv4
• B. Router(config-router)#ospfv3 1 ipv4 area 0
• C. Router(config-if)#ospfv3 1 ipv4 area 0
• D. router ospfv3 1address-family ipv4 unicast

Answer: B

NEW QUESTION 18

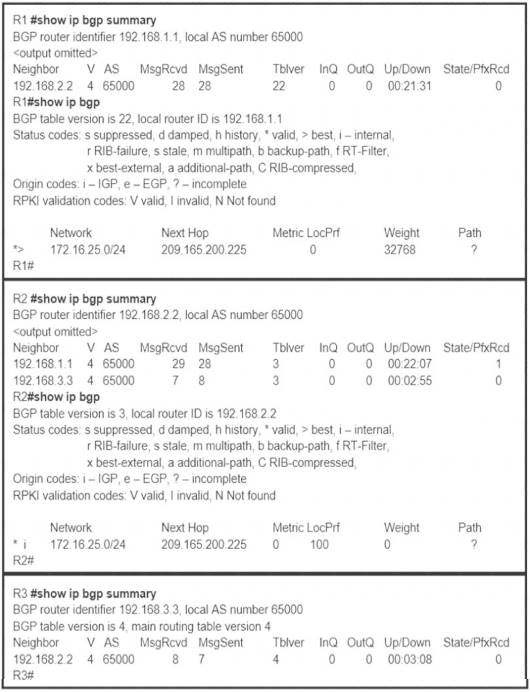

Refer to the exhibit.

R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns
the route to 172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?

• A. R2 does not have a route to the next hop, so R2 does not advertise the prefix to other clients.
• B. Route reflector setup requires full IBGP mesh between the routers.
• C. In route reflector setup, only classful prefixes are advertised to other clients.
• D. In route reflector setups, prefixes are not advertised from one client to another.

Answer: A

NEW QUESTION 19

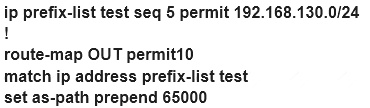

R2 has a locally originated prefix 192.168.130.0/24 and has these configurations:

What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?

• A. R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.
• B. R1 does not accept any routes other than 192.168.130.0/24
• C. R1 does not forward traffic that is destined for 192.168.30.0/24
• D. Network 192.168.130.0/24 is not allowed in the R1 table

Answer: A

NEW QUESTION 20

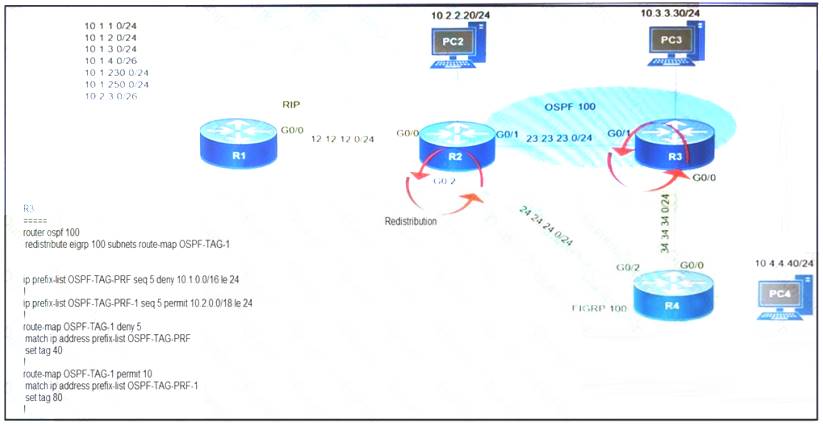

Refer to the exhibit.

Which subnet is redistributed from EIGRP to OSPF routing protocols?

• A. 10.2.2.0/24
• B. 10.1.4.0/26
• C. 10.1.2.0/24
• D. 10.2.3.0/26

Answer: A

NEW QUESTION 21
Which command displays the IP routing table information that is associated with VRF-Lite?

• A. show ip vrf
• B. show ip route vrf
• C. show run vrf
• D. show ip protocols vrf

Answer: B

NEW QUESTION 22

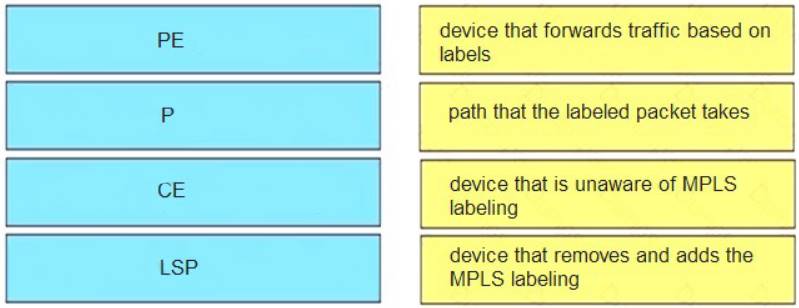

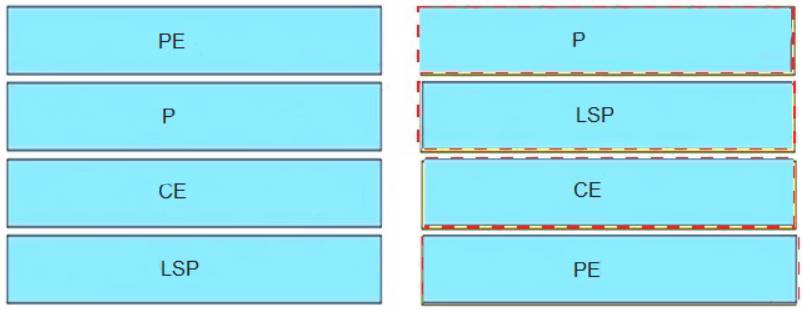

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 23
Which statement about MPLS LDP router ID is true?

• A. If not configured, the operational physical interface is chosen as the router ID even if a loopback is configured.
• B. The loopback with the highest IP address is selected as the router ID.
• C. The MPLS LDP router ID must match the IGP router ID.
• D. The force keyword changes the router ID to the specified address without causing any impact.

Answer: B

NEW QUESTION 24

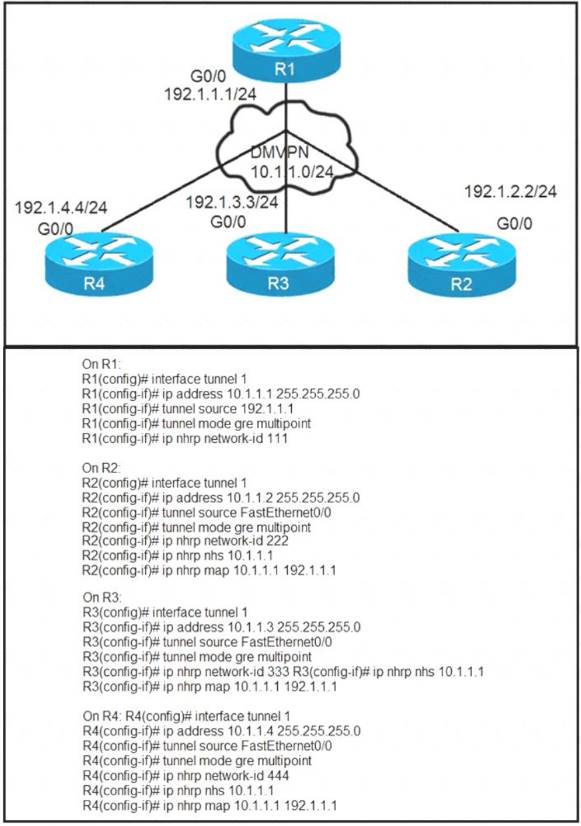

Refer to the exhibits.

Phase-3 tunnels cannot be established between spoke-to-spoke in DMVPN. Which two commands are missing? (Choose two.)

• A. The ip nhrp redirect command is missing on the spoke routers.
• B. The ip nhrp shortcut command is missing on the spoke routers.
• C. The ip nhrp redirect command is missing on the hub router.
• D. The ip nhrp shortcut command is missing on the hub router.
• E. The ip nhrp map command is missing on the hub router.

Answer: BC
