NEW QUESTION 1
Two sites have one WAN Edge each. Each WAN Edge has two public TLOCs with no restrict configured. There is full reachability between the TLOCs. How many data tunnels are formed on each Edge router?

• A. 6
• B. 2
• C. 4
• D. 8

Answer: A

NEW QUESTION 2
DRAG DROP
Drag and drop the policies from the left onto the correct policy types on the right.

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 3
A voice packet requires a latency of 50 msec. Which policy is configured to ensure that a voice packet is always sent on the link with less than a 50 msec delay?

• A. localized data
• B. centralized control
• C. localized control
• D. centralized data

Answer: A

NEW QUESTION 4
Which two mechanisms are used to guarantee the integrity of data packets in the Cisco SD-WAN architecture data plane? (Choose two.)

• A. certificates
• B. transport locations
• C. authentication headers
• D. encapsulation security payload
• E. TPM chip

Answer: BD

NEW QUESTION 5
Which two services are critical for zero touch provisioning on- boarding? (Choose two.)

• A. EMAIL
• B. SNMP
• C. AAA
• D. DHCP
• E. DNS

Answer: DE

NEW QUESTION 6

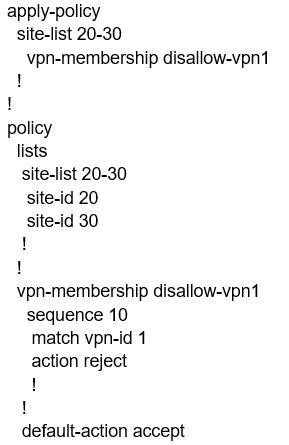

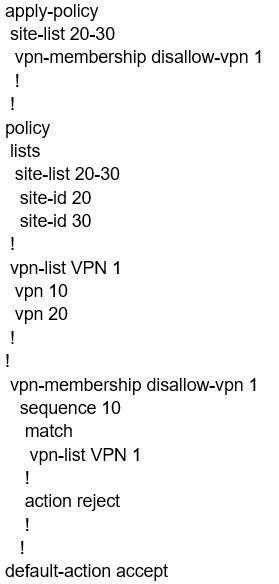

When the VPN membership policy is being controlled at the vSmart controller, which policy disallows VPN 1 at sites 20 and 30?

• A.
• B.
• C.
• D.

Answer: C

NEW QUESTION 7
An engineer is troubleshooting a vEdge router and identifies a “DCONFAIL – DTLS connection failure” message. What is the problem?

• A. memory issue
• B. certificate mismatch
• C. organization mismatch
• D. connectivity issue

Answer: D

NEW QUESTION 8
Which configuration changes the packet loss priority from low to high?

• A.
• B.
• C.
• D.

Answer: B

NEW QUESTION 9
Which component of the Cisco SD-WAN control plane architecture should be located in a public Internet address space and facilitates NAT-traversal?

• A. WAN Edge
• B. vSmart
• C. vBond
• D. vManage

Answer: C

NEW QUESTION 10
Refer to the exhibit. Which configuration change is needed to configure the tloc-extention on Branch1-Edge1? A.

• A.
• B.
• C.
• D.

Answer: D

NEW QUESTION 11
A vEdge platform is sending VRRP advertisement messages every 10 seconds. Which value configures the router back to the default timer?

• A. 2 seconds
• B. 5 seconds
• C. 1 second
• D. 3 seconds

Answer: C

NEW QUESTION 12
An engineer is troubleshooting a certificate issue on vEdge. Which command is used to verify the validity of the certificates?

• A. show control local-properties
• B. show control summary
• C. show certificate installed
• D. show certificate status

Answer: A

NEW QUESTION 13
Which logs verify when a device was upgraded?

• A. ACL
• B. Email
• C. SNMP
• D. Audit

Answer: D

NEW QUESTION 14
Which two hardware platforms support Cisco IOS XE SD-WAN images? (Choose two.)

• A. ISR4000 series
• B. ISR9300 series
• C. vEdge-1000 series
• D. ASR9000 series
• E. ASR1000 series

Answer: AE

NEW QUESTION 15

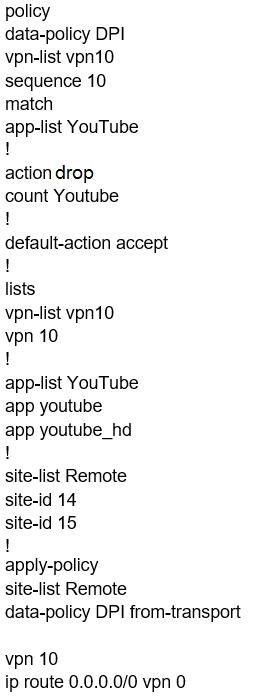

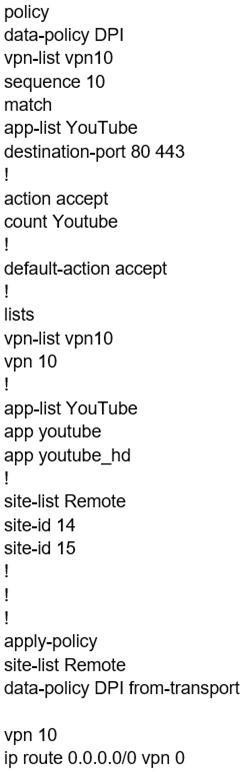

Which configuration allows users to reach YouTube from a local Internet breakout?

• A. B.
• B.

Answer: C

NEW QUESTION 16
Which policy configures an application-aware routing policy under
Configuration > Policies?

• A. Data policy
• B. Centralized policy
• C. Localized policy
• D. Control policy

Answer: A

NEW QUESTION 17
Which component of the Cisco SD-WAN architecture oversees the control plane of overlay network to establish, adjust, and maintain the connections that form the Cisco SD-WAN fabric?

• A. APIC-EM
• B. vSmart
• C. vManage
• D. vBond

Answer: B

NEW QUESTION 18
Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

• A. System Status
• B. Troubleshooting
• C. Real Time
• D. Events

Answer: B

NEW QUESTION 19
Which command disables the logging of syslog messages to the local disk?

• A. no system logging disk local
• B. system logging server remote
• C. no system logging disk enable
• D. system logging disk disable

Answer: C

NEW QUESTION 20

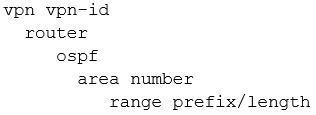

Which OSPF command makes the WAN Edge router a less preferred exit from a site with a dual WAN Edge design?

• A.
• B.
• C.
• D.

Answer: A

NEW QUESTION 21
Which component of the Cisco SD-WAN control plane architecture facilitates the storage of certificates and configurations for network components?

• A. vSmart
• B. WAN Edge
• C. vManage
• D. vBond

Answer: C

NEW QUESTION 22
How is the scalability of the Manage increased in Cisco SD-WAN Fabric?

• A. Increase the bandwidth of the WAN link connected to the vManage
• B. Increase licensing on the vManage
• C. Deploy more than one vManage controllers on different physical server
• D. Deploy multiple vManage controllers in a cluster

Answer: D

NEW QUESTION 23
Which SD-WAN component is configured to enforce a policy to redirect branch-to-branch traffic toward a network service such as a firewall or IPS?

• A. vBond
• B. vSmart
• C. WAN Edge
• D. Firewall

Answer: B
