NEW QUESTION 1
Due to a major version change, an engineer must perform a software upgrade on a Cisco Nexus Series switch.
Which two technologies can be implemented to reduce disruptions to the network during the upgrade? (Choose two.)

• A. vPC
• B. HSRP
• C. VDC
• D. MLAG
• E. PAgP

Answer: AC

NEW QUESTION 2
An engineer is seeking the most optimal on demand CPU performance while configuring the BIOS settings of a UCS C-series rack mount server.
What setting will accomplish this goal?

• A. C6 Retention
• B. C6 non-Retention
• C. C2 state
• D. C0/C1 state

Answer: A

NEW QUESTION 3

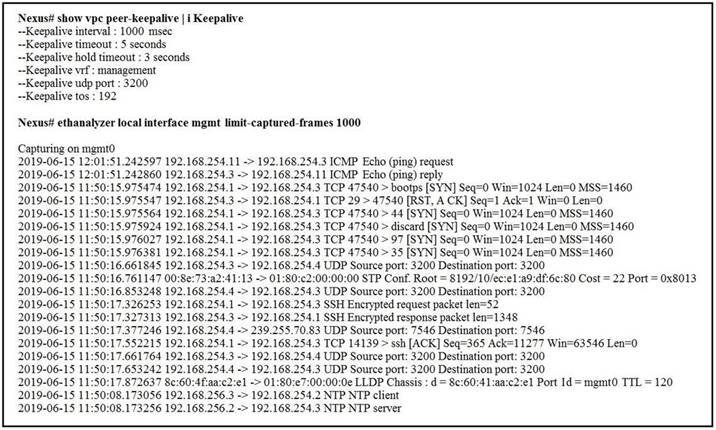

Refer to the exhibit.

A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch. What is the destination IP address of the vPC keepalive packets that are sent by the switch?

• A. 192.168.254.4
• B. 192.168.254.1
• C. 192.168.254.2
• D. 239.255.70.83

Answer: A

NEW QUESTION 4

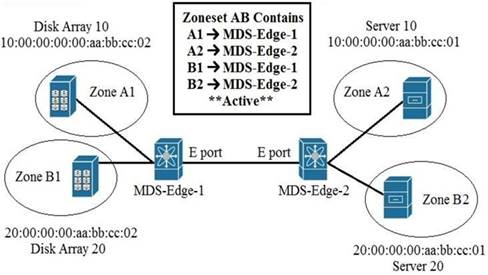

Refer to the exhibit.

An engineer is implementing zoning on two Cisco MDS switches. After the implementation is finished, E Ports that connect the two Cisco MDS switches become isolated. What is wrong with the implementation?

• A. Zones are local to the MDS switch and name service must be used to activate the connection between E Ports.
• B. Different zone set names must be configured on both MDS switches.
• C. Zones must have the same name on both MDS switches for the E Ports to function.
• D. E Ports on both MDS switches must be configured as F Ports for the zoning to function.

Answer: A

NEW QUESTION 5
Refer to the exhibit.

What is the result of implementing this configuration?

• A. The Fibre Channel interface is configured for SPAN.
• B. The Fibre Channel interface is configured for source distribution.
• C. The Fibre Channel interlace is configured for FSPF.
• D. The Fibre Channel interface is configured for synchronization distribution.

Answer: A

NEW QUESTION 6
A network engineer is adding a Cisco HyperFlex data platform to the Cisco Intersight management portal.
Which two components are required for Intersight to claim the Cisco HyperFlex data platform? (Choose two.)

• A. device FQDN
• B. device claim code
• C. device public IP address
• D. device ID
• E. device serial number

Answer: BD

NEW QUESTION 7
In an FCoE environment, for which two sets of data must an interface that implements the PAUSE mechanism always provision sufficient ingress buffer? (Choose two.)

• A. frames that were sent with high credit
• B. frames that were sent on the link but not yet received
• C. frames that were processed and transmitted by the transmitter after the PAUSE frame left the sender
• D. frames that were processed and transmitted by the transmitter before the PAUSE frame left the sender
• E. frames that were sent on the link and received

Answer: BD

NEW QUESTION 8
A POAP-enabled Cisco Nexus switch will not enter POAP mode.
Which two conditions should be verified? (Choose two.)

• A. No startup configuration is available.
• B. The switch is in bootup process.
• C. The license file is missing on the switch.
• D. Bootflash must contain a special directory named POAP with poap.py file.
• E. No Cisco NX-OS image is present on the bootflash.

Answer: AB

NEW QUESTION 9
Multiple roles are applied to a user on the Cisco MDS 9000 Series Switch.
Which statement is true?

• A. The last role assigned takes precedence over previous roles.
• B. Access to a command takes priority over being denied access to a command.
• C. Any commands that have conflicting settings between roles are denied.
• D. The first role assigned takes precedence over subsequent roles.

Answer: B

NEW QUESTION 10
Port security is enabled on a Cisco MDS 9000 Series Switch.
Which statement is true?

• A. Port security can be enabled only globally and affects all VSANs.
• B. Any devices currently logged in must be added manually to the device database.
• C. Auto-learning is always enabled automatically when port security is enabled.
• D. Cisco Fabric Services must be disabled before enabling port security.

Answer: C

NEW QUESTION 11
An engineer must configure RBAC in Cisco UCS Manager in an existing data center environment.
Which two roles can be used to configure LAN connectivity policies? (Choose two.)

• A. server-profile
• B. network-admin
• C. operations
• D. enable
• E. admin

Answer: BE

NEW QUESTION 12
An engineer is running an ACI fabric, has VMM integration with VMware vCenter, and wants to enable microsegmentation based on vCenter VM attributes. Which statement about microsegmentation is true?

• A. ACI does not support microsegmentation based on vCenter VM attribute
• B. You should use network attributes for microsegmentation.
• C. When enabled, microsegmentation performs distributed switching and routing on the ESXi hosts.
• D. Microsegmentation is supported only using AVE or AVS.
• E. An ACI microsegmented EPG automatically creates a port group with a private VLAN configured on a VMware vCenter distributed virtual switch.

Answer: D

NEW QUESTION 13
The engineer must configure SPAN on a Cisco Nexus 5000 Series Switch to get a capture of the traffic from these applications for an in-depth packet analysis. Which two SPAN characteristics must be considered? (Choose two.)

• A. SPAN source ports can be monitored in multiple SPAN sessions.
• B. The Ethernet, FC, vFC, port channel, SAN port channel can be used as SPAN source ports.
• C. A SPAN source port cannot be a destination SPAN port.
• D. Only Ethernet, FC, vFC, port channel port types can be used as SPAN source ports.
• E. The rx/tx option is available for VLAN or VSAN SPAN sessions.

Answer: BC

NEW QUESTION 14
An engineer is converting a Cisco MDS switch to support NPIV mode.
What should be considered when implementing the solution?

• A. It requires mapping of external interface traffic.
• B. It must be enabled on VSAN 1 only.
• C. It must be enabled globally on all VSANs.
• D. It requires the FLOGI database to be disabled.

Answer: C

NEW QUESTION 15
DRAG DROP

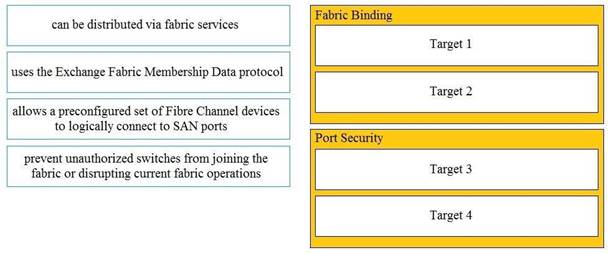

An engineer is implementing security on the Cisco MDS 9000 switch.
Drag and drop the descriptions from the left onto the correct security features on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 16
Which mroute state is created when Bidirectional PIM is deployed at a site?

• A. *.G
• B. MVPN Type-6
• C. MVPN Type-7
• D. S.G

Answer: A

NEW QUESTION 17

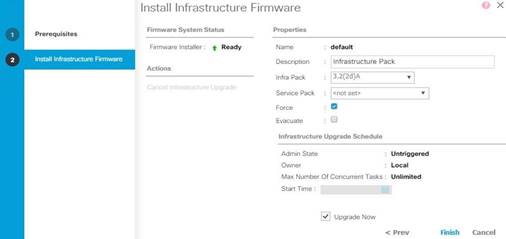

Refer to the exhibit.

Which two Cisco UCS components are upgraded as a result of the configuration? (Choose two.)

• A. IOMs
• B. Cisco UCS Manager
• C. board controller
• D. adapters
• E. BIOS

Answer: AC

NEW QUESTION 18
DRAG DROP

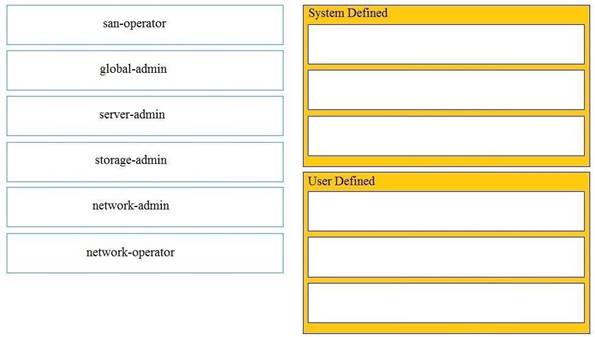

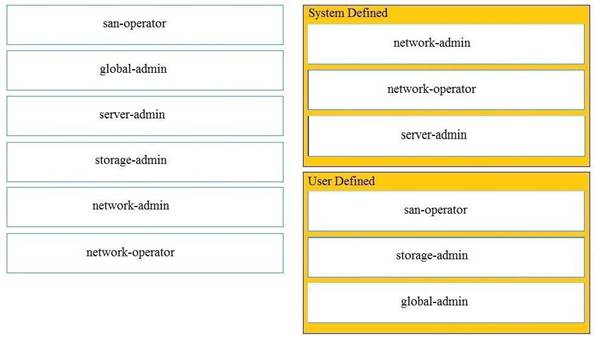

A network engineer must implement RBAC on Cisco MDS 9000 Series Multilayer Switches.
Drag and drop the Cisco MDS 9000 Series roles from the left onto the correct categories on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 19

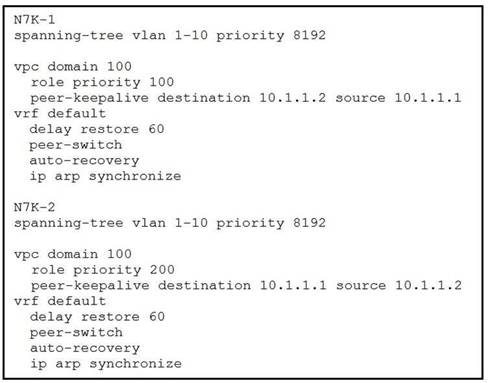

Refer to the exhibit.

The STP priority of N7K-1 and N7K-2 are the lowest in the network. Which statement describes STP on the vPC?

• A. N7K-1 and N7K-2 appear as a single STP root.
• B. N7K-1 appears as the STP root.
• C. N7K-1 preempts N7K-2 as the STP root.
• D. N7K-2 appears as the STP root.

Answer: A

NEW QUESTION 20
Refer to the exhibit.

What is configured as a result of running these commands?

• A. loose unicast RPF
• B. strict unicast RPF
• C. IP Source Guard
• D. reverse lookup for outbound packets

Answer: B

NEW QUESTION 21
Which command reduces the amount of time it takes to complete the ISSU on a Cisco Nexus 7000 Series Switch that has dual supervisor modules and two I/O modules?

• A. install all epld bootflash:<image> parallel
• B. install all kickstart <image> system <image> parallel
• C. install all kickstart <image> system <image>
• D. install all epld bootflash: <image>

Answer: B

NEW QUESTION 22
Refer to the exhibit.

Which action must be taken before the maintenance policy can be committed?

• A. Specify a maintenance time by selecting a schedule.
• B. Associate a service profile to the maintenance policy.
• C. Set the soft shutdown timer to a specific time.
• D. Set the policy to apply the changes on the next reboot.

Answer: A

NEW QUESTION 23

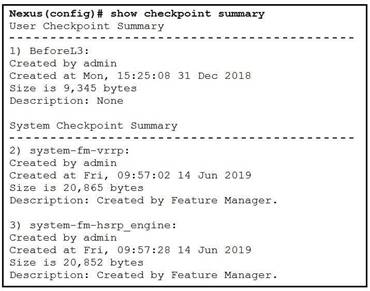

Refer to the exhibit.

What is the reason the system-fm-vrrp checkpoint was created?

• A. The VRRP process crashed and the checkpoint was automatically created.
• B. The VRRP service restarted and the checkpoint was automatically created.
• C. The network administrator manually created it.
• D. The VRRP-enabled feature has been disabled.

Answer: D

NEW QUESTION 24
Refer to the exhibit.

Which result of running the command is true?

• A. Multicast traffic forwarding is suspended.
• B. MRIB is flushed.
• C. The PIM database is deleted.
• D. PIM join messages are suspended.

Answer: C

NEW QUESTION 25
An engineer has a primary fabric that is named UCS-A and a secondary fabric that is named UCS-B. A certificate request that has a subject name of sjc2021 for a keyring that is named kr2021 needs to be created. The cluster IP address is 10.68.68.68.
Which command set creates this certificate request?

• A. UCS-A # scope keyring kr2021UCS-A /keyring # create certreq 10.68.68.68 sjc2021UCS-A /keyring* # commit-buffer
• B. UCS-B # scope keyring kr2021UCS-B /keyring # create certreq ip 10.68.68.68 subject-name sjc2021 UCS- B /keyring* # commit-both
• C. UCS-B# scope securityUCS-B /security # scope keyring kr2021UCS-B /security/keyring # set certreq 10.68.68.68 sjc2021UCS-B /security/keyring* # commit-both
• D. UCS-A# scope securityUCS-A /security # scope keyring kr2021UCS-A /security/keyring # create certreq ip 10.68.68.68 subject-name sjc2021 UCS- A /security/keyring* # commit-buffer

Answer: D
