NEW QUESTION 1
You have a Skype for Business Server 2015 infrastructure.
You configure the Skype for Business Server to require that each user has a location. You configure a location for each subnet.
Users report that when they sign in, they are prompted for their location information.
You need to prevent the users from being prompted for their location information when they sign in to Skype for Business on the internal network.
Which Skype for Business Management Shell cmdlet should you run?

• A. Publish-CsLISConfiguration
• B. Publish-CsTopology
• C. Set-CsNetworkSubnet
• D. Export-CsLISconfiguration

Answer: A

Explanation: References: https://technet.microsoft.com/en-us/library/gg398364.aspx References: https://technet.microsoft.com/en-us/library/gg398364.aspx

NEW QUESTION 2
You have a Skype for Business Server 2015 infrastructure.
You have one Enterprise Edition pool named pool1.contoso.com. Enterprise Voice is enabled for all users.
You have a public switched telephone network (PSTN) gateway named mg1.contoso.com that does not support secure signaling. The Encryption support level of the global trunk configuration is set to Not Supported.

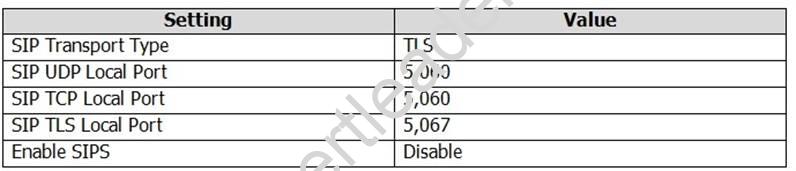

You add a second PSTN gateway named mg2.contoso.com. The SIP General parameters for mg2.contoso.com are configured as shown in the following table.

On mg2.contoso.com, you generate and install a certificate from an internal certification authority (CA).
You need to ensure that Skype for Business Server 2015 can use both PSTN gateways to make calls on the PSTN.

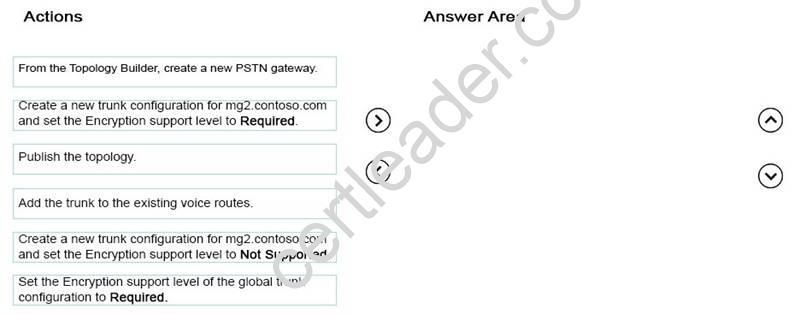

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Answer:

Explanation: References: https://technet.microsoft.com/en-us/library/jj721915.aspx

NEW QUESTION 3

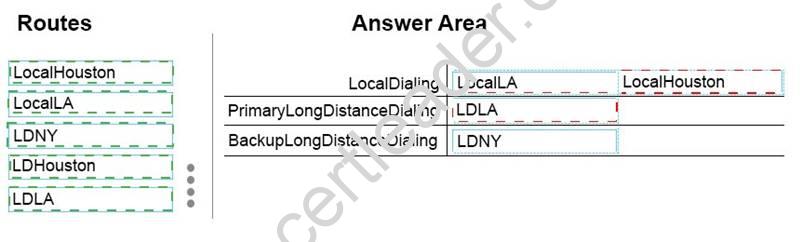

You need to ensure that least cost routing is used in the Los Angeles and Houston offices for local calls after the gateway is deployed. The solution must meet the technical requirements.
Which route should you assign to each public switched telephone network (PSTN) usage?

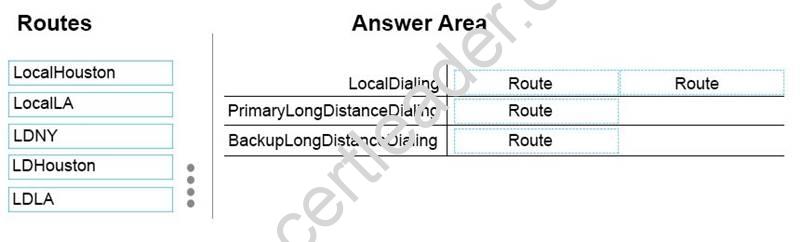

To answer, drag the appropriate route to the correct PSTN usage in the answer area. Each route may be used once, more than once, or not at all. Additionally, you may need to drag the split bar between panes or scroll to
view content.

Answer:

Explanation:

NEW QUESTION 4
You need to design the Quality of Service (QoS) configuration for the solution.

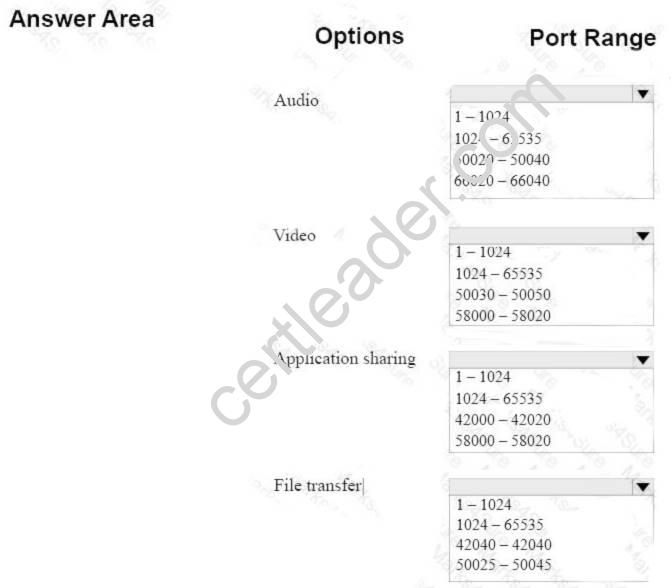

For each solution option, which port range should you use? To answer, select the appropriate port range from each list in the answer area.

Answer:

Explanation: All services can use ports 1024-65535. However, for QoS, we need to use port ranges that do not overlap.

NEW QUESTION 5

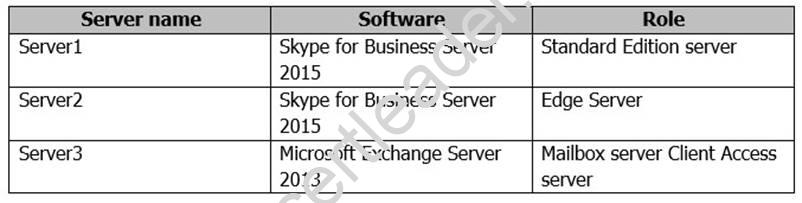

Your network contains the servers shown in the following table.

You configure the infrastructure to use Exchange Unified Messaging (UM). You need to create a new contact object for the UM auto attendant.
What should you do?

• A. From Server1, run ocsumutil.exe.
• B. From Server1, run the New-CsExUmContact Skype for Business Management Shell cmdlet.
• C. From Server3, run the New-MailContact Exchange Management Shell cmdlet.
• D. From Server3, run the exchucutil.ps1 script.

Answer: D

Explanation: References:
http://blog.schertz.name/2015/10/skype-for-business-and-exchange-um-integration/

NEW QUESTION 6
A company plans to implement Skype for Business Server 2015. Before they start deploying the solution, they want to ensure that the network can handle the media traffic that the solution produces.
You must perform a network traffic simulation on their network.
You need to ensure that the correct network metrics are collected during the network traffic simulation. Which three network metrics should you collect? Each Answer presents part of the solution.

• A. packet loss
• B. one-way network delay
• C. average jitter
• D. forward error correction overhead
• E. number of media streams

Answer: ABC

Explanation: References:
http://i.crn.com/custom/UC_Strategies_Report.pdf Page 4

NEW QUESTION 7
You support a customer whose network environment includes Skype for Business Server 2015 servers. All of the company servers are located in the company datacenter. All users have Skype for Business client installed on their local computers.
You deploy a virtual desktop infrastructure (VDI) environment to a pilot group of users. You install the Lync VDI plug-in and plug Skype for Business compatible devices to the users’ computers.
Users report that Skype for Business fails intermittently when pairing with the Lync VDI plug-in. You need to ensure reliable access to Skype for Business Server 2015 for this pilot group of users. What should you do?

• A. For all VDI users, set the value of the EnableMediaRedirection property to $FALSE.
• B. Configure the remote desktop client settings so that audio plays on the local computer and remote recordingis disabled.
• C. Run Windows 10 or higher on the local computers.
• D. Uninstall Skype for Business from the local users’ computers.

Answer: D

Explanation: References: https://technet.microsoft.com/en-us/library/jj204713(v=ocs.15).aspx

NEW QUESTION 8

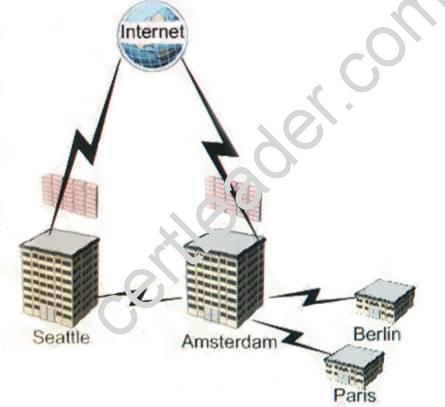

Your company has four offices. The offices are configured as shown in the exhibit. Click the Exhibit button.

You have a Skype for Business Server 2015 infrastructure that has the following configuration:
Two regions named EMEA and US. The Paris, Berlin, and Amsterdam offices are assigned to EMEA. The Seattle office is assigned to US.
A bandwidth policy named Policy1 that has a limit of 1,024 kilobits per second (Kbps) for audio and video.
A bandwidth policy named Policy2 that has a limit of 2,048 Kbps for audio and video. You need to configure Call Admission Control (CAC) to meet the following requirements:
Limit the Skype for Business server-related wide area network (WAN) traffic between the Seattle and Amsterdam offices to 2,048 Kbps.
In the Paris office, limit the Skype for Business server-related WAN traffic for audio to 1,024 Kbps and limit the Skype for Business server-related WAN traffic for video to 1,024 Kbps.
Which three actions should you perform? Each correct answer presents part of the solution.

• A. Assign Policy2 to the network in the Amsterdam office.
• B. Assign Policy1 to the network in the Paris office.
• C. Assign Policy2 to the network in the Seattle office.
• D. Create a region link and assign Policy2 to the region link.
• E. Modify region EMEA and region US to enable an Audio/Video alternate path.
• F. Create a region route.

Answer: BDF

Explanation: References:
https://docs.microsoft.com/en-us/skypeforbusiness/deploy/deploy-enterprise-voice/create-network-interregional-

NEW QUESTION 9
You need to replace the existing call group pickup solution in Denmark with a Skype for Business solution. You need to prepare the Skype for Business Server 2015 environment to provide call group pickup functionality.

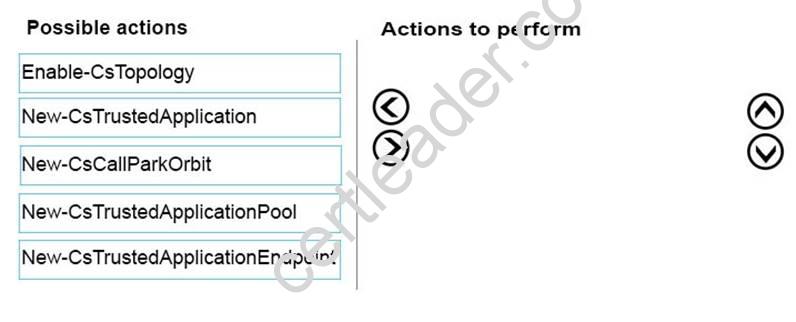

Which three Skype for Business Management Shell cmdlets should you run in sequence? To answer, move the appropriate Skype for Business Management Shell cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.

Answer:

Explanation: “You need to prepare the Skype for Business Server 2015 environment to provide call group pickup functionality.”
We’re just preparing the environment. We’re not creating the call park yet. After running the three cmdlets above, you can then run the NewCsCallParkOrbit cmdlet.

NEW QUESTION 10
You need to identify the metric that is causing poor quality in Skype for Business calls by analyzing the user activity report collected by the help desk department.
Which metric should you choose?

• A. burst gap duration
• B. round trip
• C. packet loss
• D. jitter

Answer: C

NEW QUESTION 11
Your company has a Skype for Business Server 2015 infrastructure.
You need to ensure that users can answer calls placed to other users by using the Group Call Pickup feature.
Which Skype for Business Management Shell cmdlet should you run?

• A. New-CsDialPlan
• B. New-CsRoutingConfiguration
• C. New-CsCallParkOrbit
• D. New-CsVoiceRoutingPolicy

Answer: C

Explanation: References: https://technet.microsoft.com/en-us/library/jj945627.aspx

NEW QUESTION 12
You have a Skype for Business Server 2015 infrastructure. You have a Virtual Desktop Infrastructure (VDI) that uses Hyper-V.
You use VDI templates based on Windows 8.1. All thin clients run Windows 8.1. Each thin client has a Skype for Business-qualified headset.
You need to prepare all of the thin clients and all of the VDI templates so that users can place calls by using the headset.

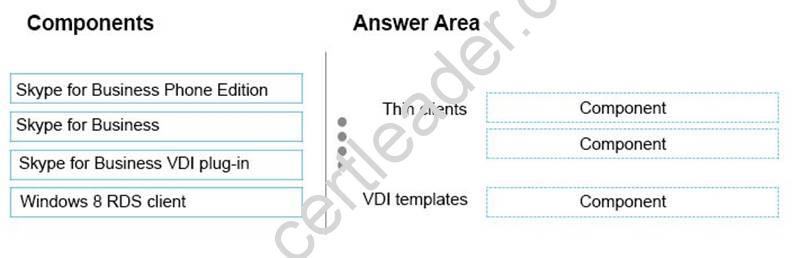

Which components should you install on the thin clients and the VDI templates? To answer, drag the appropriate components to the correct location in the answer area. Each component may be used once, more than once, or not at all. Additionally, you may need to drag the split bar between panes or scroll to view content. Each correct answer is worth one point.

Answer:

Explanation: References:
https://itbasedtelco.wordpress.com/2013/06/17/lync-deployment-using-virtual-desktops-vdi/ https://technet.microsoft.com/en-us/library/jj205304(v=ocs.15).aspx

NEW QUESTION 13
Contoso, Ltd., has a headquarters in London and has 20 branch sites. Each branch site connects to the headquarters by using a Virtual Private Network (VPN) over the Internet. The company plans to implement Skype for Business Server 2015. Before they start deploying the solution, they want to ensure that the network is capable of the required media traffic that the new solution will produce. The following image shows the results of the network traffic simulation.

You complete the network traffic simulation.
You need to improve media quality on the network.
Which three actions should you perform? Each correct answer presents part of the solution.

• A. Change network links to a managed Multiprotocol Label Switching (MPLS) network.
• B. Enable Forward Error Correction to address the packet loss.
• C. Enable Quality of Service (QoS) for Skype for Business.
• D. Disable Forward Error Correction to reduce the network overhead.
• E. Ensure all network devices respect Quality of Service (QoS) tagging.

Answer: ACE

NEW QUESTION 14
Parnell Aerospace has a Skype for Business Server 2015 environment. The company plans to implement response groups for their internal Help Desk and Accounting teams.
The two teams have the following requirements for their individual response groups: Help Desk Response Group
*Agents must sign in to the response group before they can accept calls.
*Must offer new calls to the agents in the order in which they are listed in the Agent list.
*Need to share queues with other Response Groups. Accounting Response Group
*Agents must not need to sign in to the response group before they can accept calls.
*Must offer new calls to each agent in turn.
*Must be managed by a dedicated Response Group Manager.
You need to configure the response groups for the Help Desk and Accounting teams.

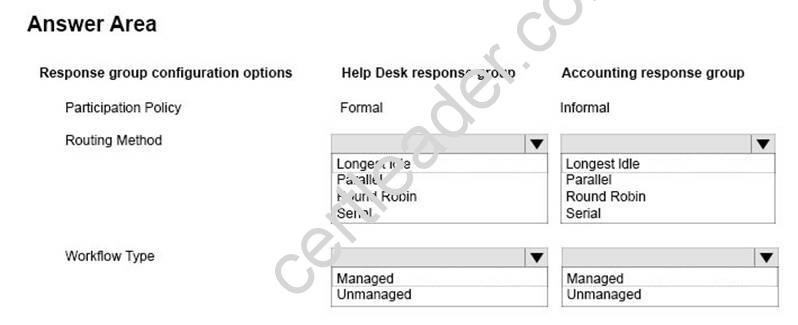

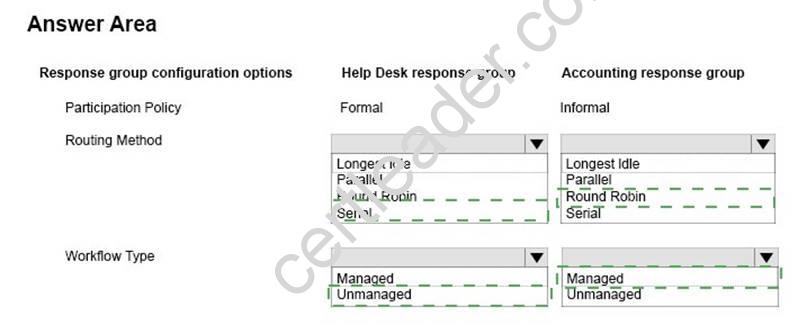

How should you configure the response groups? To answer, select the appropriate configuration option from each list in the answer area.

Answer:

Explanation:

NEW QUESTION 15

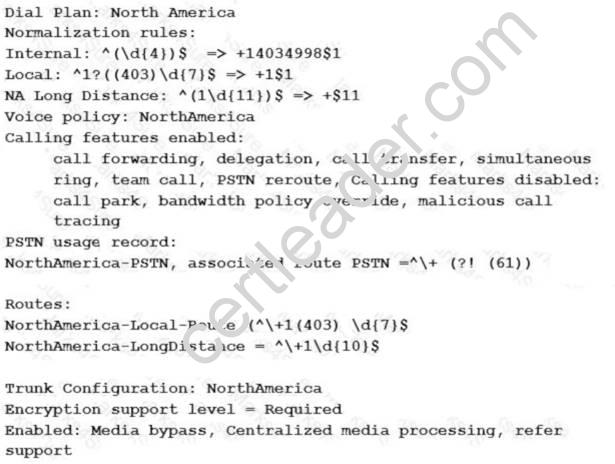

Your network environment includes Skype for Business Server 2015 with Enterprise Voice enabled. The current voice configuration settings include the following:

When users attempt to call to an outside number, they receive the following error: “User is not authorized.” You need to ensure that users are able to dial outside numbers.
Which two actions should you perform? Each correct answer presents part of the solution.

• A. Modify public switched telephone network (PSTN) usage record NorthAmerica–PSTN and its associated route PSTN for voice policy from ^+(?!(61)) to ^+1d{10}$.
• B. Modify route NorthAmerica–LongDistance- from ^+1d{10}$ to ^+1d{11}$.
• C. Under Dial Plan, modify normalization rule Local from ^1?((403)d{7}$ = > +1$1 to ^(3d{7})$ =>+403$1.
• D. Under Dial Plan, modify normalization rule NA Long Distance from ^(1d{11})$ => +$11 to^(1d{10})$ => +$1.

Answer: AD

NEW QUESTION 16
You have a Skype for Business Server 2015 infrastructure. You plan to configure Exchange Online to host voice mail. You need to perform the following actions:
✑ Configure the hosted voice mail policy.
✑ Set the external access number for the voice mail.
✑ Enable a user for Unified Messaging (UM).
✑ Configure the Contact object used for the hosted voice mail.
✑ Define a Unified Messaging (UM) IP gateway.

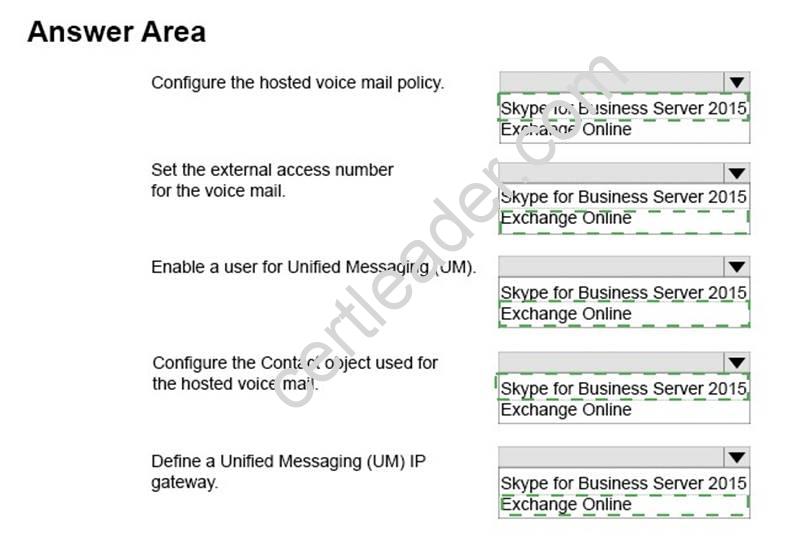

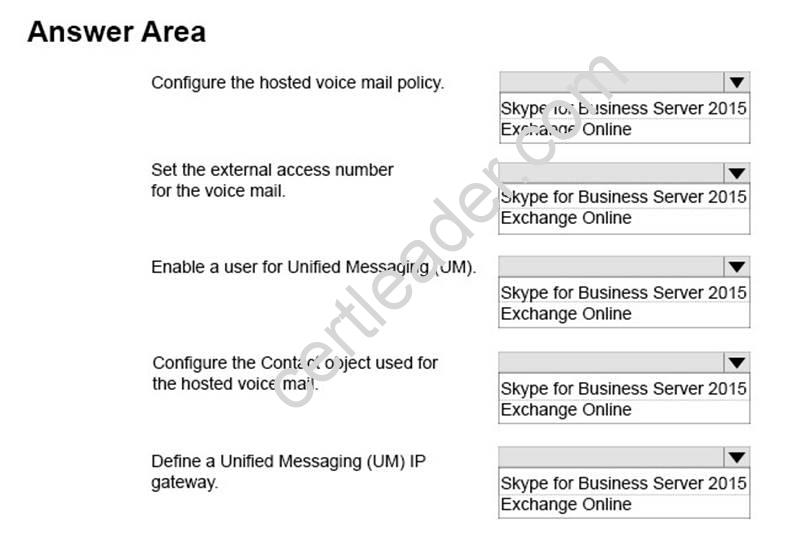

Where should you perform each action? To answer, select the appropriate environment for each task in the answer area.

Answer:

Explanation:

NEW QUESTION 17

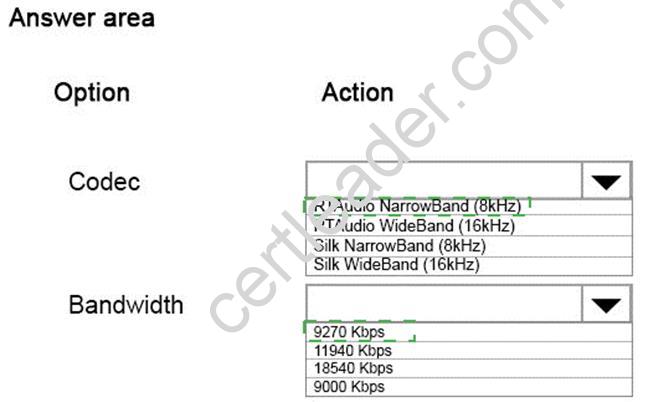

You need to configure the Enterprise Voice deployment for the Hong Kong site.

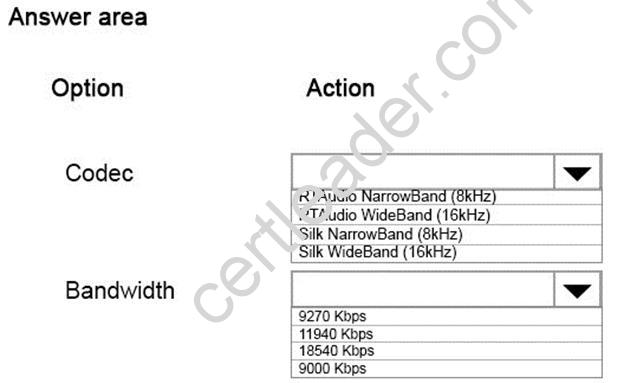

How should you configure the Hong Kong network link? To answer, select the appropriate codec and bandwidth in kilobits per second (Kbps) from the list in the answer area.

Answer:

Explanation:
