NEW QUESTION 1

You have an Azure IoT hub that uses a Device Provisioning Service instance to automate the deployment of Azure IoT Edge devices.
The IoT Edge devices have a Trusted Platform Module (TPM) 2.0 chip.
From the Azure portal, you plan to add an individual enrollment to the Device Provisioning Service that will use the TPM of the IoT Edge devices as the attestation mechanism.
Which detail should you obtain before you can create the enrollment.

• A. the scope ID and the Device Provisioning Service endpoint
• B. the primary key of the Device Provisioning Service shared access policy and the global device endpoint
• C. the X.509 device certificate and the certificate chain
• D. the endorsement key and the registration ID

Answer: D

Explanation:
The TPM simulator's Registration ID and the Endorsement key, are used when you create an individual enrollment for your device.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-auto-provision-simulated-device-linux

NEW QUESTION 2

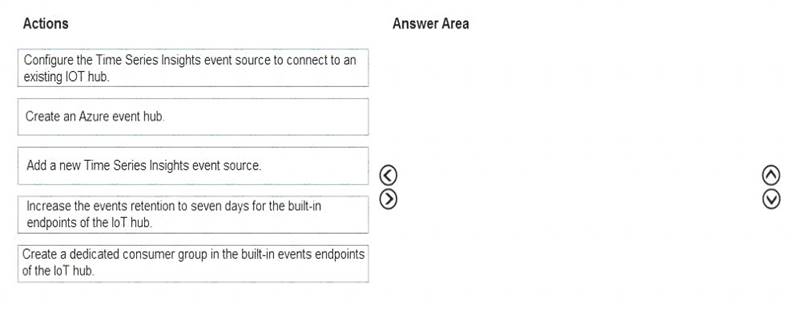

You have an instance of Azure Time Series Insights and an Azure IoT hub that receives streaming telemetry from IoT devices.
You need to configure Time Series Insights to receive telemetry from the devices.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create a dedicated consumer group.. Add a consumer group to your IoT hub.
Applications use consumer groups to pull data from Azure IoT Hub. To reliably read data from your IoT hub, provide a dedicated consumer group that's used only by this Time Series Insights environment.
Step 2: Add a new Time Series Insights event source. Add a new event source
Sign in to the Azure portal.
In the left menu, select All resources. Select your Time Series Insights environment.
Under Settings, select Event Sources, and then select Add.
In the New event source pane, for Event source name, enter a name that's unique to this Time Series Insights environment. For example, enter event-stream.
Step 3: Configure the Time Series event source to connect to an existing IOT hub Step 4: For Source, select IoT Hub.
Step 5: Select a value for Import option:
If you already have an IoT hub in one of your subscriptions, select Use IoT Hub from available subscriptions. This option is the easiest approach.
Reference:
https://docs.microsoft.com/en-us/azure/time-series-insights/time-series-insights-how-to-add-an-event-source-iot

NEW QUESTION 3

What should you do to identify the cause of the connectivity issues?

• A. Send cloud-to-device messages to the IoT devices.
• B. Use the heartbeat pattern to send messages from the IoT devices to iothub1.
• C. Monitor the connection status of the device twin by using an Azure function.
• D. Enable the collection of the Connections diagnostics logs and set up alerts for the connected devices count metric.

Answer: D

Explanation:
Scenario: You discover connectivity issues between the IoT gateway devices and iothub1, which cause IoT devices to lose connectivity and messages.
To log device connection events and errors, turn on diagnostics for IoT Hub. We recommend turning on these logs as early as possible, because if diagnostic logs aren't enabled, when device disconnects occur, you won't have any information to troubleshoot the problem with.
Step 1:
*1.Sign in to the Azure portal.
*2.Browse to your IoT hub.
*3.Select Diagnostics settings.
*4.Select Turn on diagnostics.
*5. Enable Connections logs to be collected.
*6. For easier analysis, turn on Send to Log Analytics (see pricing).
Step 2:
Set up alerts for device disconnect at scale
To get alerts when devices disconnect, configure alerts on the Connected devices (preview) metric. Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-hub/iot-hub-troubleshoot-connectivity

NEW QUESTION 4

You develop a custom Azure IoT Edge module named temperature-module.
You publish temperature-module to a private container registry named mycr.azurecr.io
You need to build a deployment manifest for the IoT Edge device that will run temperature-module. Which three container images should you define in the manifest? Each correct answer presents part of the
solution.
NOTE: Each correct selection is worth one point.

• A. mcr.microsoft.com/azureiotedge-simulated-temperature-sensor:1.0
• B. mcr.microsoft.com/azureiotedge-agent:1.0
• C. mcr.microsoft.com/iotedgedev:2.0
• D. mycr.azurecr.io/temperature-module:latest
• E. mcr.microsoft.com/azureiotedge-hub:1.0

Answer: BDE

Explanation:
Each IoT Edge device runs at least two modules: $edgeAgent and $edgeHub, which are part of the IoT Edge runtime. IoT Edge device can run multiple additional modules for any number of processes. Use a deployment manifest to tell your device which modules to install and how to configure them to work together.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

NEW QUESTION 5

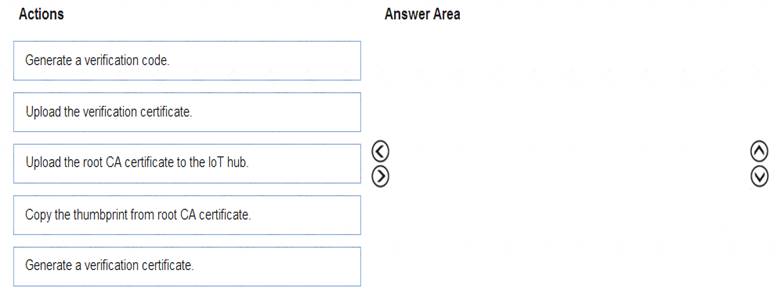

You have an Azure IoT solution that includes an Azure IoT hub.
You receive a root certification authority (CA) certificate from the security department at your company. You need to configure the IoT hub to use the root CA certificate.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-hub/iot-hub-security-x509-get-started

NEW QUESTION 6

You have an existing Azure IoT hub.
You need to connect physical IoT devices to the IoT hub.
You are connecting the devices through a firewall that allows only port 443 and port 80.
Which three communication protocols can you use? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

• A. MQTT over WebSocket
• B. AMQP
• C. AMQP over WebSocket
• D. MQTT
• E. HTTPS

Answer: ACE

Explanation:
MQTT over WebSockets, AMQP over WebSocket, and HTTPS use port 443. Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-protocols

NEW QUESTION 7

You have 100 devices that connect to an Azure IoT hub.
You plan to use Azure functions to process all the telemetry messages from the devices before storing the messages.
You need to configure the functions binding for the IoT hub.
Which two configuration details should you use to configure the binding? Each Answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. the name of the resource group that contains the IoT hub
• B. the IoT hub's connection string shared access key that has Service connect permissions
• C. the connection string of the Azure Event Hub-compatible endpoint from the IoT Hub built-in endpoints
• D. the Azure Event-Hub compatible name

Answer: CD

Explanation:
EventHubName: Functions 2.x and higher. The name of the event hub. When the event hub name is also present in the connection string, that value overrides this property at runtime.
Connection: The name of an app setting that contains the connection string to the event hub's namespace. Copy this connection string by clicking the Connection Information button for the namespace, not the event hub itself. This connection string must have send permissions to send the message to the event stream.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-bindings-event-iot-output

NEW QUESTION 8

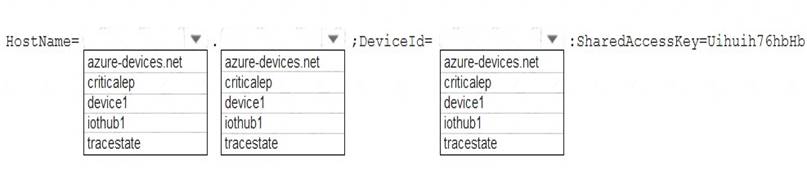

You create a new IoT device named device1 on iothub1. Device1 has a primary key of Uihuih76hbHb. How should you complete the device connection string? To answer, select the appropriate options in the
answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: iothub1
The Azure IoT hub is named iothub1.
Box 2: azure-devices.net
The format of the device connection string looks like:
HostName={YourIoTHubName}.azure-devices.net;DeviceId=MyNodeDevice;SharedAccessKey={YourShared Box 1: device1
Device1 has a primary key of Uihuih76hbHb. Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/quickstart-control-device-dotnet

NEW QUESTION 9

You have an Azure IoT hub that is being taken from prototype to production.
You plan to connect IoT devices to the IoT hub. The devices have hardware security modules (HSMs). You need to use the most secure authentication method between the devices and the IoT hub. Company
policy prohibits the use of internally generated certificates. Which authentication method should you use?

• A. an X.509 self-signed certificate
• B. a certificate thumbprint
• C. a symmetric key
• D. An X.509 certificate signed by a root certification authority (CA).

Answer: D

Explanation:
Purchase X.509 certificates from a root certificate authority (CA). This method is recommended for production environments.
The hardware security module, or HSM, is used for secure, hardware-based storage of device secrets, and is the most secure form of secret storage. Both X.509 certificates and SAS tokens can be stored in the HSM
Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/concepts-security

NEW QUESTION 10

You have an Azure IoT solution that includes several Azure IoT hubs.
A new alerting feature was recently added to the IoT devices. The feature uses a new device twin reported property named alertCondition.
You need to send alerts to an Azure Service Bus queue named MessageAlerts. The alerts must include alertCondition and the name of the IoT hub.
Which two actions should you perform? Each Answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Configure File upload for each IoT hu
• B. Configure the device to send a file to an Azure Storage container that contains the device name and status message.
• C. Add the following message enrichments: Name = iotHubNameValue = $twin.tag.location Endpoint = MessageAlert
• D. Create an IoT Hub routing rule that has a data source of Device Twin Change Events and select the endpoint for MessageAlerts.
• E. Add the following message enrichments: Name = iotHubName Value = $iothubnameEndpoint = MessageAlert
• F. Create an IoT Hub routing rule that has a data source of Device Telemetry Messages and select the endpoint for MessageAlerts.

Answer: BD

Explanation:
B: Message enrichments is the ability of the IoT Hub to stamp messages with additional information before the messages are sent to the designated endpoint. One reason to use message enrichments is to include data that can be used to simplify downstream processing. For example, enriching device telemetry messages with
a device twin tag can reduce load on customers to make device twin API calls for this information. D: Applying enrichments
The messages can come from any data source supported by IoT Hub message routing, including the following examples:
-->device twin change notifications -- changes in the device twin device telemetry, such as temperature or pressure
device life-cycle events, such as when the device is created or deleted Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-message-enrichments-overview

NEW QUESTION 11

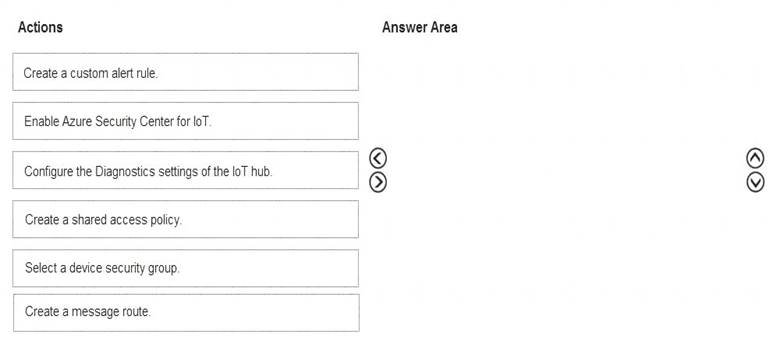

You have 100 devices that connect to an Azure IoT hub.
You need to be notified about failed local logins to a subnet of the devices.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Enable Azure Security Center for IoT
Security alerts, such as failed local IoT hub logins, are stored in AzureSecurityOfThings.SecurityAlert table in the Log Analytics workspace configured for the Azure Security Center for IoT solution.
Step 2: Select a device security group Update a device security group..
Step 3: Create a custom alert rule by creating a custom alert rule Reference:
https://docs.microsoft.com/bs-latn-ba/azure/asc-for-iot/how-to-security-data-access https://docs.microsoft.com/en-us/rest/api/securitycenter/devicesecuritygroups/createorupdate

NEW QUESTION 12

You need to enable telemetry message tracing through the entire IoT solution. What should you do?

• A. Monitor device lifecycle events.
• B. Upload IoT device logs by using the File upload feature.
• C. Enable the DeviceTelemetry diagnostic log and stream the log data to an Azure event hub.
• D. Implement distributed tracing.

Answer: D

Explanation:
IoT Hub is one of the first Azure services to support distributed tracing. As more Azure services support distributed tracing, you'll be able trace IoT messages throughout the Azure services involved in your solution.
Note:
Enabling distributed tracing for IoT Hub gives you the ability to:
Precisely monitor the flow of each message through IoT Hub using trace context. This trace context includes correlation IDs that allow you to correlate events from one component with events from another component. It can be applied for a subset or all IoT device messages using device twin.
Automatically log the trace context to Azure Monitor diagnostic logs.
Measure and understand message flow and latency from devices to IoT Hub and routing endpoints. Start considering how you want to implement distributed tracing for the non-Azure services in your IoT solution.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-distributed-tracing

NEW QUESTION 13

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure IoT solution that includes an Azure IoT hub, a Device Provisioning Service instance, and 1,000 connected IoT devices.
All the IoT devices are provisioned automatically by using one enrollment group. You need to temporarily disable the IoT devices from the connecting to the IoT hub.
Solution: From the IoT hub, you change the credentials for the shared access policy of the IoT devices. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-dps/how-to-unprovision-devices

NEW QUESTION 14

You have an Azure IoT Central application.
You need to connect an IoT device to the application.
Which two settings do you require in IoT Central to configure the device? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Group SAS Primary Key
• B. the IoT hub name
• C. Scope ID
• D. Application Name
• E. Device ID

Answer: CE

Explanation:

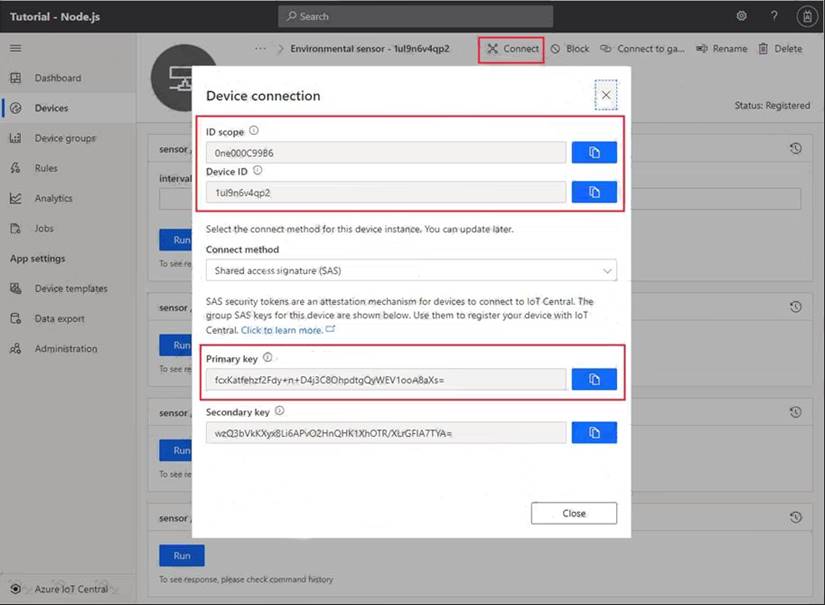

In your Azure IoT Central application, add a real device to the device template
*1. On the Devices page, select the Environmental sensor device template.
*2. Select + New.
*3. Make sure that Simulated is Off. Then select Create.
Click on the device name, and then select Connect. Make a note of the device connection information on the Device Connection page - ID scope, Device ID, and Primary key. You need these values when you create your device code:

Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-central/core/tutorial-connect-device-python

NEW QUESTION 15

You have 10 IoT devices that connect to an Azure IoT hub named Hub1.
From Azure Cloud Shell, you run az iot hub monitor-events --hub-name Hub1 and receive the following error message: "az iot hub: 'monitor-events' is not in the 'az iot hub' command group. See 'az iot hub
--help'."
You need to ensure that you can run the command successfully. What should you run first?

• A. az iot hub monitor-feedback --hub-name Hub1
• B. az iot hub generate-sas-token --hub-name Hub1
• C. az iot hub configuration list --hub-name Hub1
• D. az extension add -name azure-cli-iot-ext

Answer: D

Explanation:
Execute az extension add --name azure-cli-iot-ext once and try again.
In order to read the telemetry from your hub by CLI, you have to enable IoT Extension with the following commands:
Add: az extension add --name azure-cli-iot-ext Reference:
https://github.com/MicrosoftDocs/azure-docs/issues/20843
