NEW QUESTION 1
Click the Exhibit button.

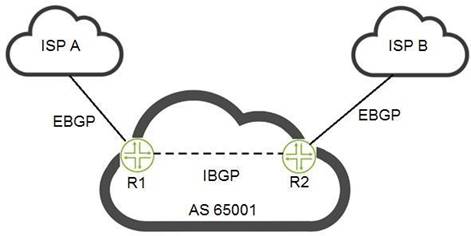

You are configuring BGP policies for a site with a dual-homed connection as shown in the exhibit. You must ensure that inbound traffic from Internet hosts flow through the ISP A connection.
Which statement is correct in this scenario?

• A. Apply a BGP export policy on R1 to assign a lower MED value to routes advertised to ISP A
• B. Apply a BGP export policy on R1 to assign a higher local preference value to routes advertised to ISP A
• C. Apply a BGP export policy onR2to assign a lower origin value to routes advertised to ISP B
• D. Apply a BGP export policy to R2 to prepend [65001 65001 65001 65001 65001] to the AS path of routes advertised to ISP B

Answer: D

NEW QUESTION 2
You are deploying IP phones in your Layer 2 network and are asked to ensure that the switch sends VLAN and CoS information to the IP phones automatically.
In this scenario, which protocol should be used?

• A. PoE
• B. PoE+
• C. LLDP
• D. LLDP_MED

Answer: D

NEW QUESTION 3

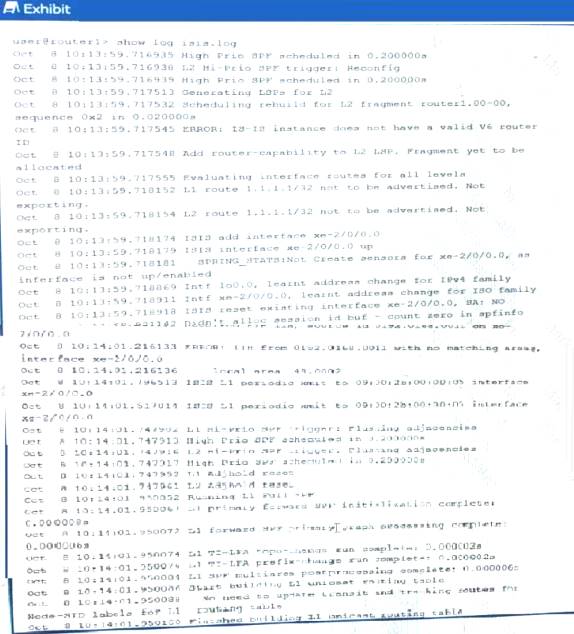

Exhibit.

Your IS-IS adjacency is not established as shown in the exhibit. What is the problem?

• A. There is an invalid IPv6 router ID
• B. There is an MTU mismatch
• C. There is an invalid IPv4 router ID
• D. There is an area mismatch

Answer: D

NEW QUESTION 4
Click the Exhibit button.

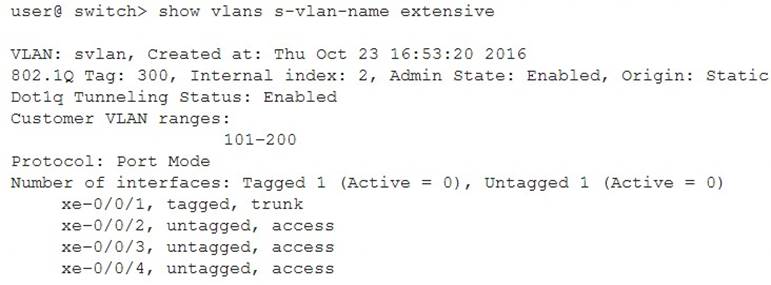

During an outage, you review the status of the Q-in-Q implementation on VLAN 300. Referring to the exhibit, what would be the cause of the outage?

• A. The S-VLAN is disabled.
• B. The VLAN range overlaps.
• C. The C-VLANs are disabled.
• D. There are no active ports.

Answer: D

NEW QUESTION 5

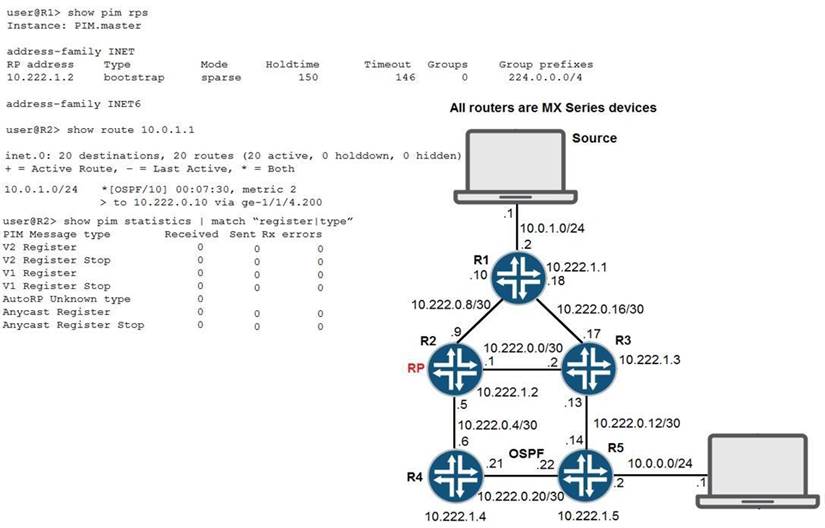

Click the Exhibit button.

Referring to the exhibit, the source is currently sending multicast traffic using group 224.1.1.1, which is being received by R1. R2 is not receiving PIM register messages.
What would be the cause of this problem?

• A. Tunnel services have not been enabled on R1.
• B. All routers have not been configured with the same Auto-RP discovery group.
• C. R5 has not received an IGMP report of 224.1.1.1.
• D. A(*,G) tree has not been built yet.

Answer: C

NEW QUESTION 6
In IS-IS advertising POUs with the overload bit has which effect?

• A. The local device will no longer be used for transit traffic
• B. The local device's POUs are marked with a metric of 65535
• C. The ISIS adjacencies become passive
• D. The IS-IS adjacencies enter the "new" state

Answer: A

NEW QUESTION 7
Which three types of ports are used for Junos Fusion Enterprise? (Choose three. )

• A. extended port
• B. authenticated port
• C. cascade port
• D. uplink port
• E. designated port

Answer: ACD

NEW QUESTION 8
What information is contained in an OSPF LSA header? (Choose two.)

• A. protocol
• B. options
• C. length
• D. subnet mask

Answer: BC

NEW QUESTION 9
You are using 802.1X in your access network consisting of EX Series switches. You recently had a failure with your RADIUS server which resulted in authenticating client devices being denied access to the network. You want to change this behavior so that authenticating clients are directed to a remediation VLAN.
Which RADIUS server failback setting satisfies this requirement?

• A. permit
• B. move
• C. sustain
• D. deny

Answer: B

NEW QUESTION 10
Which two statements are true about IS-IS levels? (Choose two.)

• A. Level 2 systems do not advertise Level 2 routes into a Level area by default.
• B. Level 2 systems must use the loopback address as a part of the ISO network address.
• C. Level 1 system only from adjacencies with other systems that have different area IDs.
• D. Level 1 systems use a default route to reach AS external routes located in other areas.

Answer: AD

NEW QUESTION 11

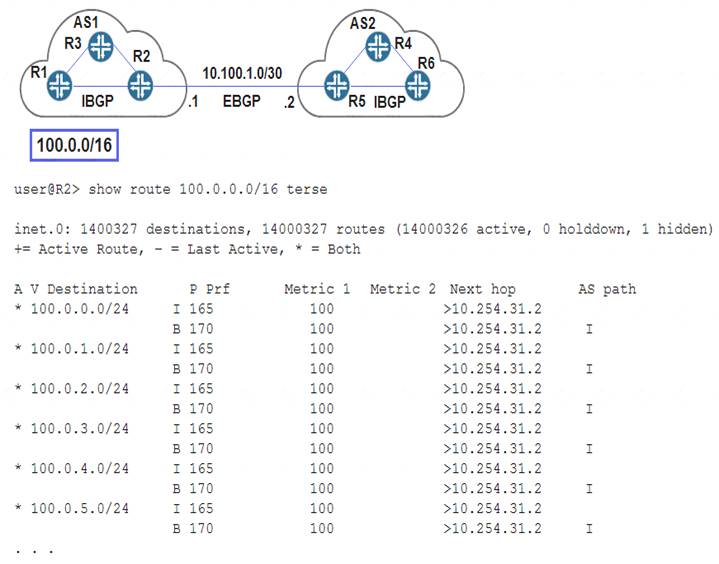

Click the Exhibit button.

Referring to the exhibit, you must advertise the 100.0.0.0/16 routes from AS1 to AS2, but R2 is not advertising any BGP routes to R5.
Why is this happening in this scenario?

• A. The IBGP routes will not be advertised because you must use a policy to advertise IBGP routes.
• B. The IBGP routes are not active and EBGP will advertise only active routes.
• C. The IBGP routes will not be advertised because the AS path shows as incomplete.
• D. The IBGP routes are not active because the next hop is not reachable.

Answer: B

NEW QUESTION 12
When redistributing IGP routes into BGP. what information .s used by default on Junos platforms to determine
the BGP route's MED attribute value?

• A. routing information base
• B. the IGP route preference
• C. the IGP Metric
• D. route protocol source

Answer: C

NEW QUESTION 13
Exhibit.

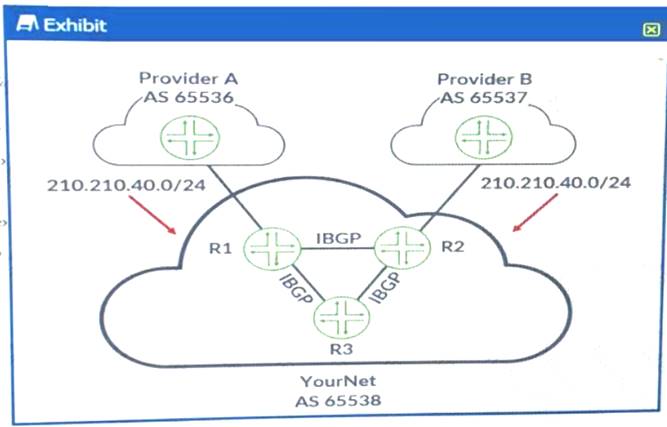

YourNet is learning the 210.210.40.0/24 route from Provider A and Provider B YourNet would like to forward traffic destined to the 210.210.40.0/24 networking using Provider B.
Referring to the exhibit, how would you accomplish this task?

• A. Add the well-known no-export community to the routes learned through R2.
• B. Apply an export policy to R1's IBGP peers to set a higher local preference.
• C. Add the well-known no-export community to the routes learned through R1.
• D. Apply an export policy to R2's IBGP peers to set a Their local preference.

Answer: D

NEW QUESTION 14
Click the Exhibit button.

You are configuring BGP policies for a site with a dual-homed connection as shown in the exhibit. You need all outbound traffic to egress the network through the link to ISP B by default. The ISPs should not be able to override this behavior through BGP attributes.
Which BGP attribute would you modify on the ISP-received routes to accomplish this objective?

• A. local preference
• B. next-hop
• C. MED
• D. origin

Answer: A

NEW QUESTION 15

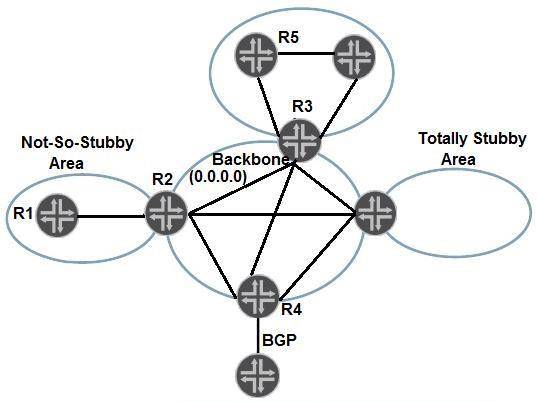

Click the Exhibit button.

Referring to the exhibit, how is R5 able to learn the networks that exist within the NSSA?

• A. R5 learns those networks from Type 3 LSAs advertised by R2.
• B. R5 learns those networks from Type 3 LSAs advertised by R3.
• C. R5 does not learn those networks and uses a default route advertised by R3 instead.
• D. R5 does not learn those networks but uses a default route advertised by R2 instead.

Answer: D

NEW QUESTION 16
You want to view the VLANs that have been created dynamically using MVRP. Which operational mode command will display this information?

• A. Show mvrp dynamic-vlan memberships
• B. Show mvrp interface
• C. Show mvrp registration-state
• D. Show mvrp applicant-state

Answer: A

NEW QUESTION 17
What are two supported PoE management modes? (Choose two.)

• A. mixed
• B. standalone
• C. class
• D. static

Answer: CD

NEW QUESTION 18

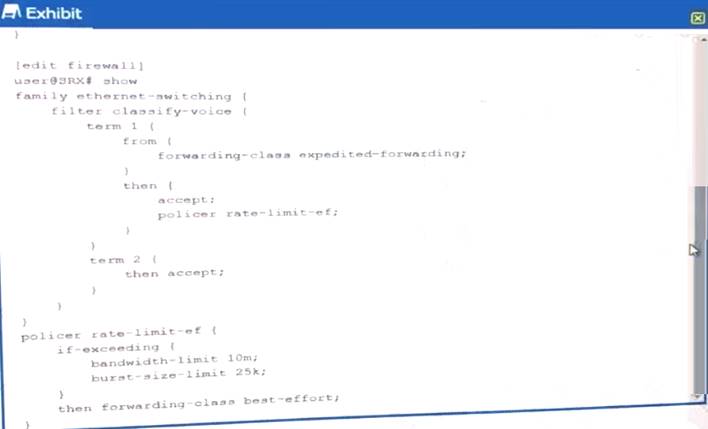

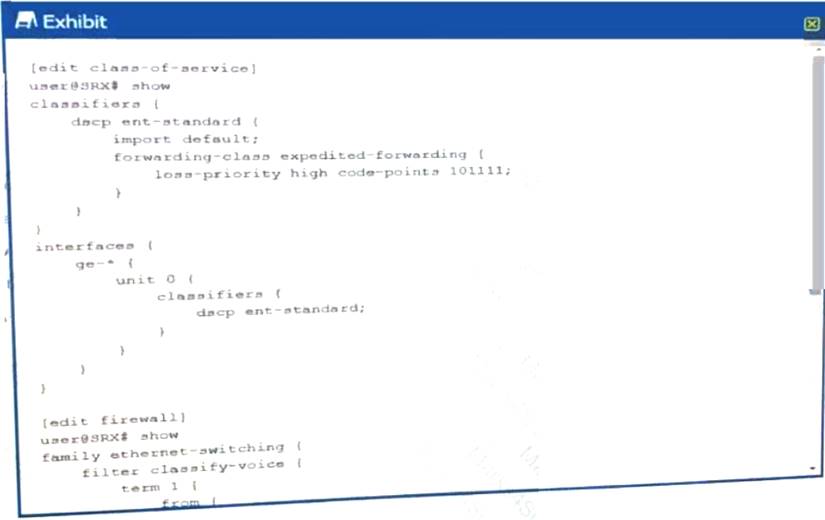

Exhibit.


You are implementing CoS for a custom application that is labeling its packets with DSCP code-point 101111. You have applied the configuration shown in the exhibit, but not that while some custom application traffic ingressin on ge-0/0/1 transits the SRX Series device successfully, packets ingressing all other ge-* interfaces are being dropped.
Which action should you take to solve this problem?

• A. Configure a scheduler and scheduler map for expedited-forwarding and apply to all interfaces.
• B. Modify the BA classifier to assign code point 101111 to loss priority low.
• C. Remove the BA classifier from all ge-interfaces.
• D. Apply the rate-limit-ef policer to all ge-interfaces.

Answer: D

NEW QUESTION 19

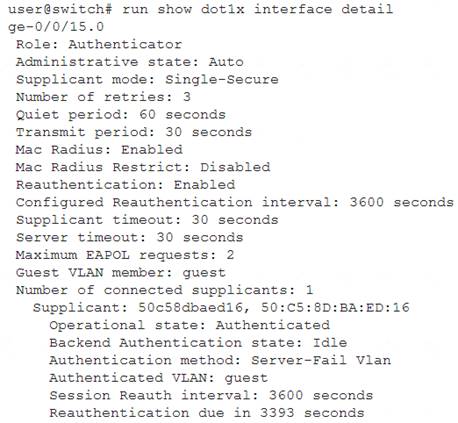

Click the Exhibit button.

Referring to the exhibit, which statement is true?

• A. Only 802. 1X authentication will be used for devices connecting to ge-0/0/15
• B. The current device is authenticated using MAC RADIUS
• C. Additional users will automatically be allowed to connect to ge-0/0/15
• D. The current device was allowed after authentication attempts to the RADIUS server failed

Answer: D

NEW QUESTION 20
A BA classifier, input policer, and a multifield classifier are applied to an interface in which order are these features processed?

• A. policer -> BA classifier -> multifield classifier
• B. BA classifier -> multifield classifier -> policer
• C. multifield classifier -> BA classifier -> policer
• D. policer > multifield classifier -> BA classifier

Answer: A

NEW QUESTION 21

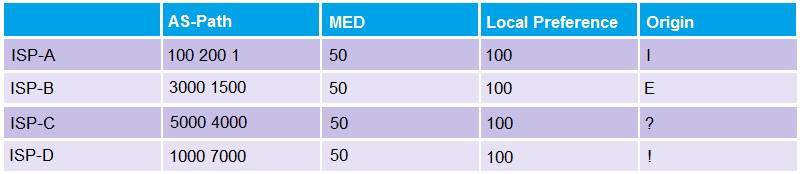

Click the Exhibit button.

You receive the same 75.100.0.0/16 route from all four ISPs to which you are connected. Referring to the exhibit, which ISP’s route will be selected as active?

• A. ISP-D
• B. ISP-C
• C. ISP-B
• D. ISP-A

Answer: A

NEW QUESTION 22
Which statement is correct about MSTP?

• A. MSTP enables mapping multiple independent spanning tree instances onto one physical topology
• B. MSTP enables dynamic discovery of Layer 2 neighbors.
• C. MSTP dynamically manages VLAN registration in a LAN
• D. MSTP uses slacked VLAN tags to extend a Layer 2 Ethernet connection between multiple sites

Answer: A
