NEW QUESTION 1
An engineer attempts to register Cisco UCS Manager to Cisco UCS Central, but the registration fails. The engineer can ping Cisco UCS Central from UCS Manager. Which two actions must the engineer attempt to resolve the problem? (Choose two.)

• A. Synchronize the date and time to NTP for Cisco UCS Central and the Cisco UCS domains.
• B. Apply the UCS Central license to UCS Central.
• C. Place Cisco UCS Manager on the same subnet as Cisco UCS Central.
• D. Allow port 443 between Cisco UCS Manager and Cisco UCS Central.
• E. Allow port 9443 between Cisco UCS Manager and Cisco UCS Central.

Answer: AD

NEW QUESTION 2
A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue? (Choose two.)

• A. Configure the NVE interfaces to be Up on both switches.
• B. Set a different distributed gateway virtual MAC address.
• C. Set a different secondary IP addresses on NVE source-interface.
• D. Configure the same VNI to multicast group maping.
• E. Set a different primary IP addresses on NVE source-interface.

Answer: AD

NEW QUESTION 3
DRAG DROP
An engineer is troubleshooting issues in Cisco UCS Director. Drag and drop the possible causes from the left onto the correct issues on the right.
Select and Place:

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 4

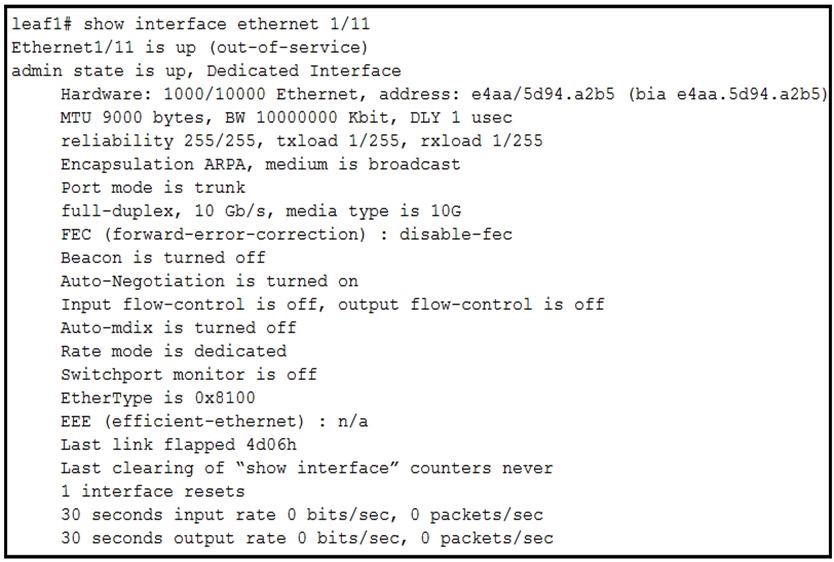

Refer to the exhibit. An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

• A. The interface is working correctly and fully operational, but it is not in use.
• B. The interface policy is misconfigured.
• C. “out-of-service” is the default interface status in ACI.
• D. “out-of-service” indicates that no service graph is in use for this interface.

Answer: B

NEW QUESTION 5
A user reports that they cannot reach from a UCS server to an FC Storage array. Which command is used to test communication between an FCF and a target?

• A. fcroute
• B. traceroute
• C. fcping
• D. ping

Answer: C

NEW QUESTION 6
An engineer must replace a failed memory on a Cisco UCS B-Series Blade Server. After the replacement was done, the server has a “resolve slot” warning. Which server maintenance action resolves the issue?

• A. Perform diagnostic interrupt on the server.
• B. Re-acknowlegement the server.
• C. Reset the server.
• D. Decomission the server.

Answer: B

NEW QUESTION 7

Refer to the exhibit. The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?

• A. event statement
• B. event-default action statement
• C. policy-default action statement
• D. IP address of the SNMP server

Answer: D

NEW QUESTION 8

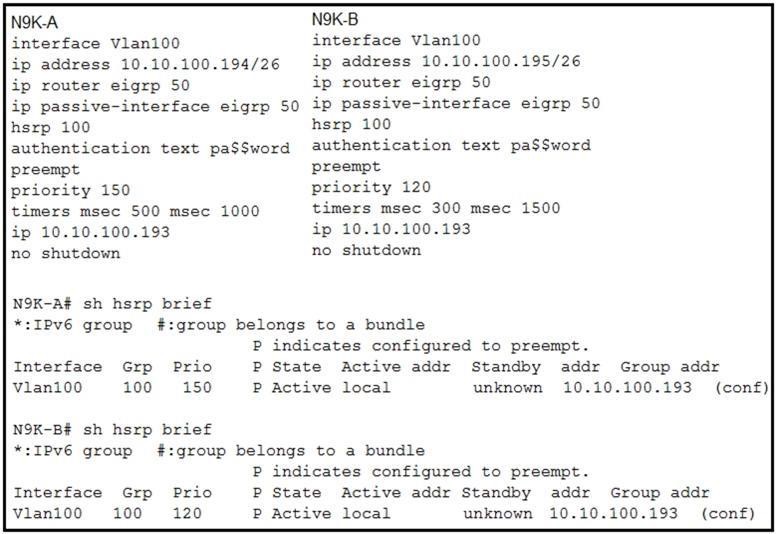

Refer to the exhibit. The HSRP instance on both switches is showing as active. Which action resolves the issue?

• A. Configure the HSRP timers to be the same.
• B. Allow VLAN 100 between the switches.
• C. Configure the IP address of N9K-B on the same subnet as N9K-A.
• D. Configure preempt on only one of the switches.

Answer: B

NEW QUESTION 9

Refer to the exhibit. After the configuration is performed, guestshell continues to use 2%CPU. Which action resolves the issue?

• A. Resync the database
• B. Recreate the guestshell
• C. Reboot the guestshell
• D. Reboot the switch

Answer: C

NEW QUESTION 10
An engineer is troubleshooting a fabric discovery failure. Which two requirements must an engineer verify about switch connectivity to solve the problem? (Choose two.)

• A. A Cisco APIC must be attached to a spine node only.
• B. A Cisco APIC must be attached to leaf nodes.
• C. Spine nodes must connect to other spine nodes.
• D. A Cisco APIC must be dual-attached to two separate spine nodes.
• E. Leaf nodes must connect to spine nodes only.

Answer: BE

NEW QUESTION 11
An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

• A. shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2
• B. shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2
• C. shell=Security_Domain_1/Read_Role_1|Read_Role_2
• D. shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Answer: A

NEW QUESTION 12

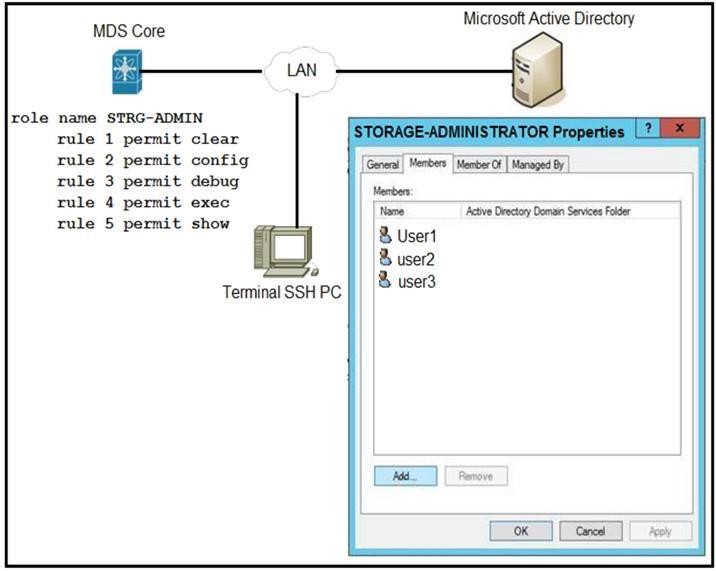

Refer to the exhibit. An engineer is troubleshooting why user1, user2, and user3 from group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

• A. Configure the role name to match the group name on Microsoft Active Directory.
• B. Include specific users into MDS role configuration.
• C. Configure SSH logins on Cisco MDS switch.
• D. Integrate Cisco MDS with Microsoft Active Directory.

Answer: A

NEW QUESTION 13
Refer to the exhibit. A switch is being downgraded to an earlier release because of a problem with the current release. After the switch is downgraded, it can no longer forward traffic. Which action resolves the issue?

• A. Enable ISSD after the downgrade is complete.
• B. Roll back to the original image.
• C. Reload the switch.
• D. Shut and no shut the interfaces to the FEX.

Answer: B

NEW QUESTION 14

Refer to the exhibit. An engineer is investigating a role mapping issue on a switch. The users report that they cannot view the IP addresses under the tenant “corp”. Which action resolves the issue?

• A. Add the users to the RADIUS server.
• B. Update the UNIX ID.
• C. Configure the correct secret password between the APIC and the RADIUS server.
• D. Add the updated avpair to include/corp/admin/

Answer: C

NEW QUESTION 15

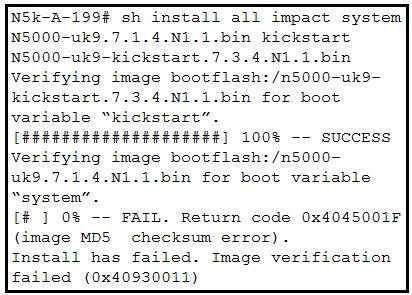

Refer to an exhibit. An engineer is troubleshooting an upgrade failure on a switch. Which action resolves the issue?

• A. Save the system image in NVRAM.
• B. Use the same system image as the kickstart image.
• C. Load a new system image.
• D. Reload the same system image.

Answer: C

NEW QUESTION 16
After upgrading a client’s fabric interconnect to the latest version, an engineer discovers that the appliance has lost its entire configuration. Which two locations should an engineer check to confirm that the appliance had backed up the configuration prior to the upgrade in order to retrieve the lost configuration? (Choose two.)

• A. Equipment FSM page, InternalBackup stage
• B. Service profiles page, InternalBackup stage
• C. Admin page, PollInternalBackup stage
• D. Equipment FSM page, PollInternalBackup stage
• E. Admin page, InternalBackup stage.

Answer: AC

NEW QUESTION 17
Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

• A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
• B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
• C. Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
• D. Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

Answer: B
