NEW QUESTION 1

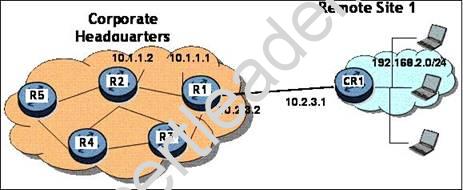

Based on the network diagram, (click on exhibit)

what is the command to use on CR1 to setup a default static route to R1?

• A. config router static-route 0.0.0.0/0 next-hop 10.2.3.2
• B. config router static-route 0.0.0.0 next-hop 10.2.3.2
• C. config router static-route 10.2.3.2 next-hop 0.0.0.0/0
• D. config router default-route 10.2.3.2
• E. config router static-route 0.0.0.0 next-hop 192.168.2.0

Answer: A

NEW QUESTION 2
How is Ethernet II different from Ethernet 802.3?

• A. Ethernet 802.3 can only be used on point-to-point links, while Ethernet II can be used on broadcast network
• B. In Ethernet II the 2 bytes after the source MAC address is used as a type indicato
• C. In Ethernet 802.3 these two bytes indicate the length of the fram
• D. In Ethernet 802.3, the 2 bytes after the source MAC address is used as a type indicato
• E. In Ethernet II these two bytes indicate the length of the fram
• F. Ethernet II and Ethernet 802.3 are two different names for the same protocol

Answer: B

NEW QUESTION 3
Which bit pattern identifies the network address in the subnet mask?

• A. A string of consecutive 1'
• B. A string of consecutive0'
• C. A string of alternating 10'
• D. The network address is determined by masking the source address with a port's ifIndex binary representatio

Answer: A

NEW QUESTION 4
Which of the following statements best describes ARPANET?

• A. ARPANET was an early packet switched network initially connecting 4 sites (Stanford, UC Santa Barbara, UCLA, and U of Utah).
• B. The mission of ARPANET was to connect packet switched networks and other diverse networks,making an international network of network
• C. ARPANET connected sites spread around the Hawaiian Islands to a central time-sharing computer on the University of Hawaii campu
• D. ARPANET was based on the use of TCP/IP to interconnect diverse system

Answer: A

NEW QUESTION 5
The TiMOS-m.n.Y.Z software image file is software that:

• A. Contains all the components required to configure and run protocols on the Alcatel-Lucent 7750 SR/7450 ES
• B. Loads the router configuratio
• C. Transfers the router configuration from the router to the network management syste
• D. Loads the router software imag

Answer: A

NEW QUESTION 6
What is required if devices on different VLANs wish to communicate with each other?

• A. Devices on different VLANs cannot communicate with each othe
• B. Devices on different VLANs can communicate with each other as long as they are connected to the same switc
• C. Devices on different VLANs can communicate with each other as long as the switches they are attached to are connected to each other with an Ethernet connectio
• D. Devices on different VLANs can communicate with each other if there is an IP router to connect the VLAN

Answer: D

NEW QUESTION 7
Which Ethernet frame field does the receiver use to verify the integrity of the received bits?

• A. Destination address
• B. Frame check sequence
• C. Preamble
• D. Length field

Answer: B

NEW QUESTION 8
What is the name for an organization that provides Internet services to its customers?

• A. A large corporatio
• B. An IS
• C. A home based busines
• D. A content provide

Answer: B

NEW QUESTION 9
Which protocol is used by ping to verify IP network reachability? A. DCHP

• A. ICMP
• B. ARP
• C. NAT

Answer: B

NEW QUESTION 10

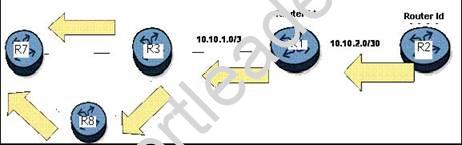

In the diagram, R3 receives an LSA with the sequence number 111 from R7 and then receives another copy of the LSA with a sequence number 112 from R1. What does R3 do with the LSA from R1?

• A. R3 discards the LSA received from R1 and sends a copy of the LSA from its link state base to R1.
• B. R3 installs the LSA received from R1 in its link state database and floods a copy to its neighbor
• C. R3 discards the LSA received from R1 and sends an ACK to R1.
• D. R3 installs the LSA received from R1 in its link state database, sends an ACK to R1 andfloods a copy to its neighbor

Answer: D

NEW QUESTION 11

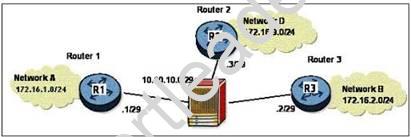

Based on the network diagram (click the Exhibit Button).

Router 1 installs network D in its routing table following a dynamic routing update from Router 2. Which of the following describes the information that will be installed in the routing table?

• A. 172.16.9.0/24 next-hop 10.10.10.1
• B. 172.16.9.0/24 next-hop 10.10.10.2
• C. 172.16.9.0.24 next-hop 10.10 10 3
• D. 0.0.0.0/32 next-hop 172.16.9.1

Answer: C

NEW QUESTION 12
Which of the following information can be seen within the FILE context of the SR 7x50? (Choose 2)

• A. File sizes
• B. Port statistics
• C. Log-id 100 files
• D. TiMOS image files

Answer: AD

NEW QUESTION 13
Which ATM adaptation layer is commonly used for transporting IP datagrams or non-real time data?

• A. AAL0
• B. AAL1
• C. AAL2
• D. AAL3/4
• E. AAL5

Answer: E

NEW QUESTION 14
What does a VPLS solution look like from a customers perspective?

• A. To the customer, it appears as if all sites are directly connected by a single cabl
• B. To the customer, it appears as if all sites are connected through a single switched LA
• C. To the customer, it appears as if all sites are connected through a single route
• D. To the customer, it appears as if all sites are connected through a series of private point-to-point connection

Answer: B

NEW QUESTION 15
Which of the following are protocols belonging to the OSI suite of protocols? (Choose two)

• A. OSPF
• B. BGP
• C. X.500
• D. IS-IS
• E. Ethernet

Answer: CD

NEW QUESTION 16
Which of the following describes an IP filter on the Alcatel-Lucent 7750 SR?

• A. An IP filter is used to examine an IP packet and its content
• B. An IP filter is applied to allow or deny IP packets into a networ
• C. Multiple ingress and egress filter policies can be applied to a network interfac
• D. Once an IP filter is applied it cannot be modifie

Answer: B

NEW QUESTION 17
Which device is responsible for removing the MPLS label before the packet reaches the CE device?

• A. The CE device removes the MPLS labe
• B. The last LSR on the LSP removes the MPLS labe
• C. MPLS labels are not removed until they reach the final destinatio
• D. The egress LER removes the MPLS labe

Answer: D

NEW QUESTION 18
What is the preference value in the routing table used for?

• A. It indicates the preferred egress interfac
• B. It differentiates between multiple routes to a destination learned by the same protoco
• C. It differentiates between multiple routes to a destination learned by different routing protocol
• D. It is used to differentiate local routes from remote route

Answer: C

NEW QUESTION 19

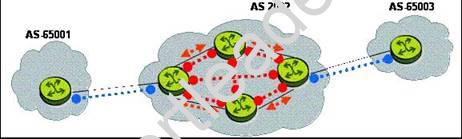

Which is the public AS in the diagram?

• A. 65001
• B. 65003
• C. 2002
• D. All of the abov
• E. None of the abov

Answer: C
