NEW QUESTION 1
When using the Cisco EVC software infrastructure, a double-tagged frame with a customer VLAN of 10 and a service provider VLAN of 150 will be best matched by which encapsulation configuration?

• A. encapsulation dot1q 10 second-dot1q any
• B. encapsulation dot1q 10 second-dot1q 150
• C. encapsulation dot1q 10 second-dot1q 50-200
• D. encapsulation dot1q 10
• E. encapsulation dot1q 150

Answer: E

NEW QUESTION 2
Which two statements regarding Cisco 6PE operations are correct? {Choose two.}

• A. The top label in the label stack is assigned by MP-BGP, and it is used to reach the egress PE.
• B. The inner label in the label stack is assigned by MP-BGP, and it is used for IPv6 forwarding at the egress PE.
• C. The top label in the label stack is assigned by LDP, and it is used to reach the egress PE.
• D. The inner label in the label stack is assigned by LDP, and it is used for IPv6 forwarding at the egress PE.

Answer: BC

Explanation:
http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6553/prod_presentation0900aecd80311df4.pdf

NEW QUESTION 3
Which three options are features of MPLS Layer 2 VPNs? {Choose three.}

• A. Routing occurs on customer devices.
• B. Routing occurs on service provider and customer devices.
• C. Customer sites appear to be on the same LAN.
• D. Customer sites appear to be on different LANs in the same routing domain.
• E. A routing protocol must be configured between the CE and PE device.
• F. Traffic between CE and PE is forwarded in Layer 2 format.

Answer: ACF

NEW QUESTION 4
Which Cisco IOS XR BGP configuration command is required to enable MP-BGP to carry IPv6 VPN routes?

• A. address-family ipv4 unicast
• B. address-family ipv6 unicast
• C. address-family vpnv4 unicast
• D. address-family vpnv6 unicast

Answer: D

Explanation:
http://www.cisco.com/en/US/tech/tk872/technologies_configuration_example09186a0080b3e11d.shtml

NEW QUESTION 5
Which Layer 2 protocol parameters can be carried inside the control word when implementing AToM service?

• A. PW ID
• B. Frame Relay FECN, BECN, and DE bits
• C. encapsulation type
• D. VC type

Answer: B

Explanation:
http://www.cisco.com/en/US/products/ps6603/products_qanda_item09186a008009d4e3.shtml#wp39173
Q. How does Frame Relay over MPLS work?
A. Traffic is encapsulated in MPLS packets and forwarded across the MPLS network. When encapsulating Frame Relay over MPLS, the Frame Relay header and the frame check sequence {FCS} are stripped from the packet. The bits for Backward Explicit Congestion Notification {BECN}, Forward Explicit Congestion Notification {FECN}, Discard Eligibility {DE} and Command/Response {C/R} are carried across the MPLS network in the "Control Word" header.

NEW QUESTION 6
When implementing VPLS on Cisco routers, which data structure resembles a virtual switch and is used for learning the MAC addresses?

• A. VRF
• B. VFI
• C. SVI
• D. BVI

Answer: B

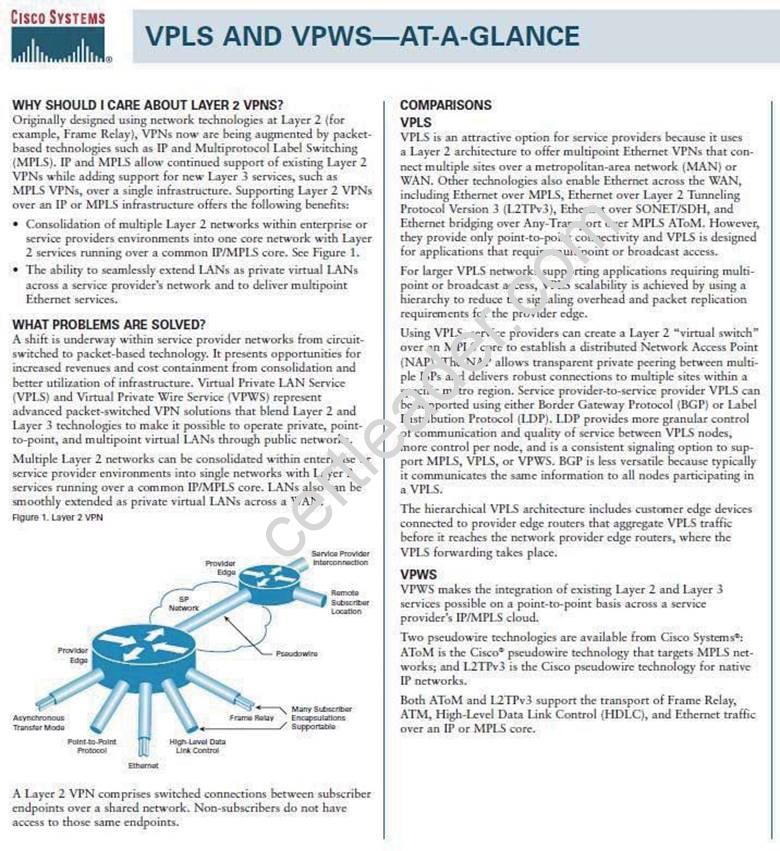

Explanation:

NEW QUESTION 7
Which three functions are performed by the PE router in an MPLS Layer 3 VPN? {Choose three.}

• A. exchanges routing updates with the CE router
• B. translates the CE routing information into VPNv4 routes
• C. exchanges VPNv4 routes with other PE routers over MP-BGP
• D. imports and exports RTs that are received from the P routers
• E. exchanges RDs with the P routers
• F. exchanges VPN labels with the CE routers

Answer: ABC

Explanation:
http://www.cisco.com/en/US/docs/routers/crs/software/crs_r4.1/lxvpn/configuration/guide/vc41v3.html How MPLS L3VPN Works
MPLS VPN functionality is enabled at the edge of an MPLS network. The PE router performs the following tasks:
•Exchanges routing updates with the CE router
•Translates the CE routing information into VPN version 4 {VPNv4} and VPN version 6 {VPNv6} routes
•Exchanges VPNv4 and VPNv6 routes with other PE routers through the Multiprotocol Border Gateway Protocol {MP- BGP}

NEW QUESTION 8
A routing entry on a PE router has an ext-hop address of ::ffff:[IP ADDRESS]. Which service provider technology is being deployed?

• A. 6VPE
• B. 6PE
• C. 4to6 tunnel
• D. 6to4 tunnel

Answer: B

NEW QUESTION 9
Which method can be used to discover targeted LDP neighbors dynamically when configuring VPLS between PE routers?

• A. BGP autodiscovery
• B. VPLS peers under the VFI
• C. VPWS
• D. BGP

Answer: A

NEW QUESTION 10
Which MP-BGP address family must be configured to use VPLS autodiscovery in a Cisco IOS XR router?

• A. address-family l2vpn vpls-vpws
• B. address-family vpnv4 unicast
• C. address-family ipv4 mdt
• D. address-family ipv4 tunnel
• E. address-family vpls vfi

Answer: A

Explanation:
http://www.cisco.com/en/US/docs/ios/12_2sr/12_2srb/feature/guide/srbgpl2v.html

NEW QUESTION 11
Refer the exhibit.

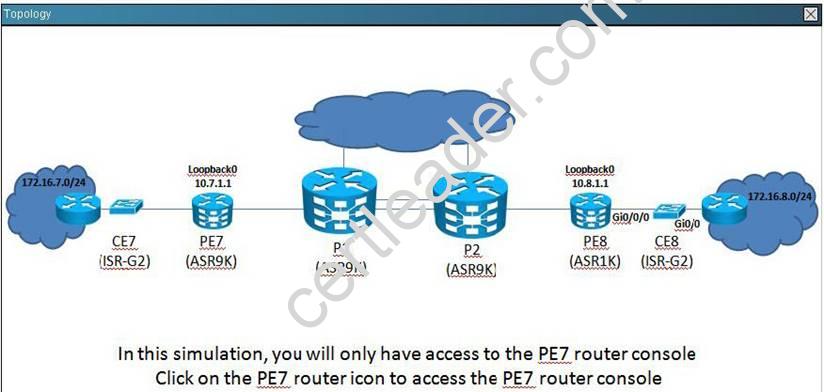

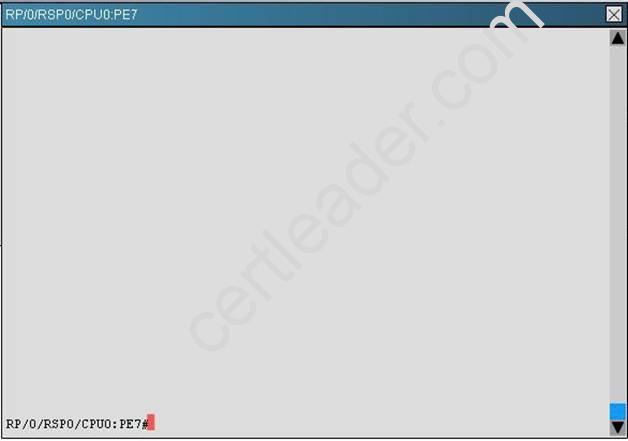

On PE7, what is the PWtype on the p2p ac-pw named "testpw"?

• A. MPLS
• B. L2TPv3
• C. PPP
• D. LDP
• E. Ethernet

Answer: B

Explanation:
show mpls l2transport vc testpw detail

NEW QUESTION 12
Which VPN technology uses the Group Domain of Interpretation as the keying protocol and IPsec for encryption that is often deployed over a private MPLS core network?

• A. DMVPN
• B. GET VPN
• C. SSL VPN
• D. L2TPv3

Answer: B

Explanation:
http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6586/ps6635/ps7180/deployment_guide_c07_554 713.html

NEW QUESTION 13
Which option is the correct command to define an interface as Layer 2 on the Cisco ASR 9000?

• A. RP/0/RSP0/CPU0:R1{config}#int gigabitEthernet 0/6/0/0 l2transport
• B. RP/0/RSP0/CPU0:R1{config}#int gigabitEthernet 0/6/0/0 layer2
• C. RP/0/RSP0/CPU0:R1{config}#int gigabitEthernet 0/6/0/0 switchport
• D. RP/0/RSP0/CPU0:R1{config}#int gigabitEthernet 0/6/0/0 xconnect

Answer: A

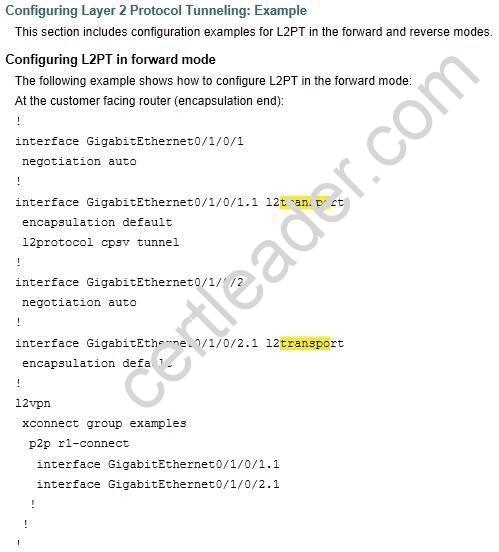

Explanation:

NEW QUESTION 14
Refer to the exhibit.

Which two descriptions outline the traffic flow among the three sites? {Choose two.}

• A. The MNL site communicates with the XYZ and ABC sites.
• B. The XYZ and ABC sites communicate using the default route that points to the MNL site.
• C. XYZ sees the MNL and ABC routes.
• D. ABC sees the MNL and XYZ routes.
• E. The MNL site acts as a central site for the ABC and XYZ sites.

Answer: AE

NEW QUESTION 15

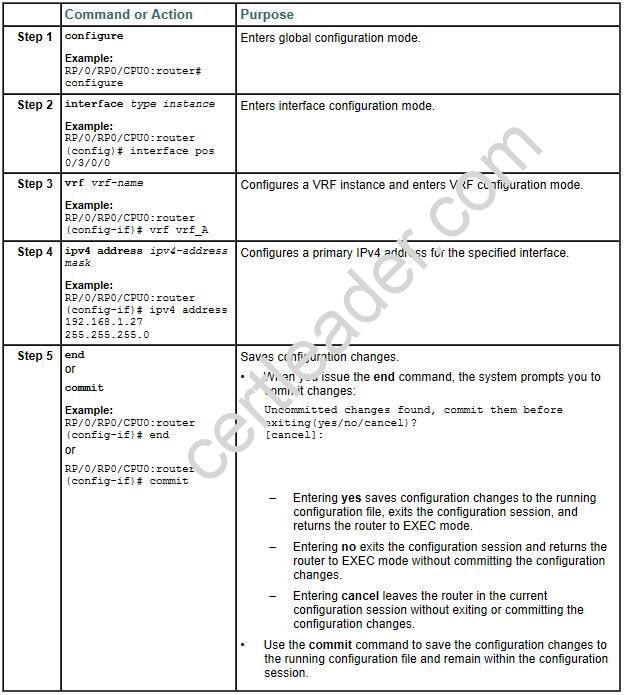

With Layer 3 MPLS VPN implementations on Cisco IOS XR PE routers, an interface is assigned to a VRF using the vrf command in which configuration mode?

• A. RP/0/RP0/CPU0:PE{config-vrf}#
• B. RP/0/RP0/CPU0:PE{config-if}#
• C. RP/0/RP0/CPU0:PE{config-bgp}#
• D. RP/0/RP0/CPU0:PE{config-bgp-af}#

Answer: B

Explanation:

NEW QUESTION 16
Which technology does an N-PE most likely use to pass traffic to the U-PE that is destined for the access switch?

• A. pseudowire
• B. MPLS TE
• C. OSPF
• D. IS-IS

Answer: A

NEW QUESTION 17
A customer wants two separated sites to be connected via a pseudo-wire. Which solution provides the simplest implementation?

• A. AToM
• B. Layer 3 VPN
• C. VPLS
• D. GETVPN

Answer: A

NEW QUESTION 18

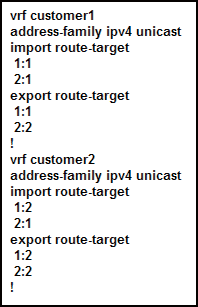

Refer to the partial Cisco IOS XR PE router VRF configuration exhibit.

To implement a central-service VPN supporting both customer1 and customer2, what will be the required corresponding VRF configuration on the central-service-server PE router?

• A. vrf central-service-server address-family ipv4 unicast import route-target3:12:2export route-target 3:12:1!
• B. vrf central-service-server address-family ipv4 unicast import route-target3:12:1export route-target 3:12:2!
• C. vrf central-service-server address-family ipv4 unicast import route-target3:11:11:2export route-target 3:11:11:2!
• D. vrf central-service-server address-family ipv4 unicastimport route-target 3:11:11:22:12:2export route-target 3:11:11:22:12:2!

Answer: A

NEW QUESTION 19

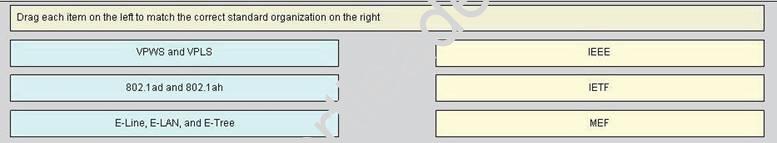

DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
http://www.cisco.com/application/pdf/en/us/guest/tech/tk891/c1482/cdccont_0900aecd80162184.pdf

NEW QUESTION 20
Refer to the partial Cisco IOS XR PE router configuration exhibit for supporting a Layer 3 MPLS VPN customer using BGP as the CE-to-PE routing protocol.

The service provider AS number is 64500, the customer AS number is 64501, and the customer CE router is 10.1.1.1. What is missing in the configuration?

• A. The route distinguisher has not been configured under router bgp 64500 vrf Customer_A.
• B. The import and export route targets have not been configured under router bgp 64500 vrf Customer_A.
• C. The 10.1.1.1 BGP neighbor has not been activated for IPv4 unicast routing.
• D. The 10.1.1.1 BGP neighbor has not been activated for the VPNv4 address family.

Answer: A

Explanation:

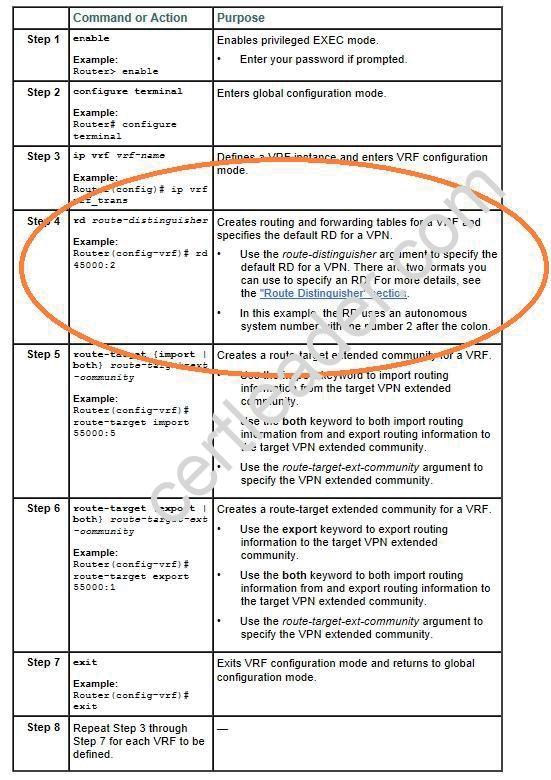

http://www.cisco.com/en/US/docs/ios/12_2sr/12_2sra/feature/guide/srbgprid.html Route Distinguisher
A router distinguisher {RD} creates routing and forwarding tables and specifies the default route distinguisher for a VPN. The RD is added to the beginning of an IPv4 prefix to change it into a globally unique VPN-IPv4 prefix. An RD can be composed in one of two ways: with an autonomous system number and an arbitrary number or with an IP address and an arbitrary number. You can enter an RD in either of these formats:
•Enter a 16-bit autonomous system number, a colon, and a 32-bit number. For example: 45000:3
•Enter a 32-bit IP address, a colon, and a 16-bit number. For example: 192.168.10.15:1

NEW QUESTION 21
A network engineer is tasked to implement an AToM VPN for a given customer to emulate a Frame Relay virtual circuit over the MPLS-enabled core network. Which command enables Frame Relay to forward frames from the attachment circuit over the emulated session in regular Cisco IOS Software?

• A. ip route 0.0.0.0 0.0.0.0 tailend_router_ip
• B. encapsulation frame-relay
• C. frame-relay switching
• D. frame-relay intf-type dce

Answer: C
