NEW QUESTION 1
An administrator has decreased all the TCP session timers to optimize the FortiGate memory usage. However, after the changes, one network application started to have problems. During the troubleshooting, the administrator noticed that the FortiGate deletes the sessions after the clients send the SYN packets, and before the arrival of the SYN/ACKs. When the SYN/ACK packets arrive to the FortiGate, the unit has already deleted the respective sessions. Which TCP session timer must be increased to fix this problem?

• A. TCP half open.
• B. TCP half close.
• C. TCP time wait.
• D. TCP session time to live.

Answer: A

Explanation:
http://docs-legacy.fortinet.com/fos40hlp/43prev/wwhelp/wwhimpl/common/html/wwhelp.htm?context=fgt
&file=CLI_get_Commands.58.25.html
The tcp-halfopen-timer controls for how long, after a SYN packet, a session without SYN/ACKremains in the table.
The tcp-halfclose-timer controls for how long, after a FIN packet, a session without FIN/ACKremains in the table.
The tcp-timewait-timer controls for how long, after a FIN/ACK packet, a session remains in thetable. A closed session remains in the session table for a few seconds more to allow any out-of-sequence packet.

NEW QUESTION 2
The CLI command set intelligent-mode <enable | disable> controls the IPS engine’s adaptive scanning behavior. Which of the following statements describes IPS adaptive scanning?

• A. Determines the optimal number of IPS engines required based on system load.
• B. Downloads signatures on demand from FDS based on scanning requirements.
• C. Determines when it is secure enough to stop scanning session traffic.
• D. Choose a matching algorithm based on available memory and the type of inspection being performed.

Answer: C

Explanation:
Configuring IPS intelligenceStarting with FortiOS 5.2, intelligent-mode is a new adaptive detection method. This command is enabled the default and it means that the IPS engine will perform adaptive scanning so that, for some traffic, the FortiGate can quickly finish scanning and offload the traffic to NPU or kernel. It is a balanced method which could cover all known exploits. When disabled, the IPS engine scans every single byte.
config ips globalset intelligent-mode {enable|disable}end

NEW QUESTION 3

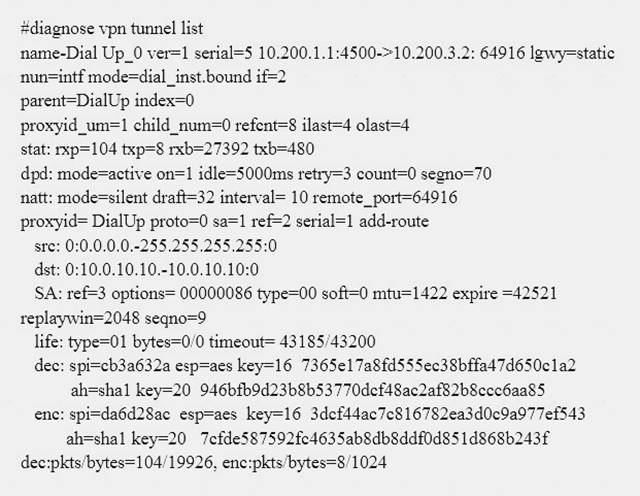

Examine the output from the ‘diagnose vpn tunnel list’ command shown in the exhibit; then answer the question below.

Which command can be used to sniffer the ESP traffic for the VPN DialUP_0?

• A. diagnose sniffer packet any ‘port 500’
• B. diagnose sniffer packet any ‘esp’
• C. diagnose sniffer packet any ‘host 10.0.10.10’
• D. diagnose sniffer packet any ‘port 4500’

Answer: D

Explanation:
NAT-T is enabled. natt: mode=silentProtocol ESP is used. ESP is encapsulated in UDP port 4500 when NAT-T is enabled.

NEW QUESTION 4
Examine the following partial outputs from two routing debug commands; then answer the question below.
# get router info kernel
tab=254 vf=0 scope=0type=1 proto=11 prio=0 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.1.254 dev=2(port1)
tab=254 vf=0 scope=0type=1 proto=11 prio=10 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.2.254 dev=3(port2)
tab=254 vf=0 scope=253type=1 proto=2 prio=0 0.0.0.0/0.0.0.0/.->10.0.1.0/24 pref=10.0.1.254 gwy=0.0.0.0 dev=4(port3)
# get router info routing-table all s*0.0.0.0/0 [10/0] via 10.200.1.254, portl [10/0] via 10.200.2.254, port2, [10/0] dO.0.1.0/24 is directly connected, port3 dO.200.1.0/24 is directly connected, portl d0.200.2.0/24 is directly connected, port2
Which outbound interface or interfaces will be used by this FortiGate to route web traffic from internal users to the Internet?

• A. port!
• B. port2.
• C. Both portl and port2.
• D. port3.

Answer: B

NEW QUESTION 5
Examine the following traffic log; then answer the question below.
date-20xx-02-01 time=19:52:01 devname=master device_id="xxxxxxx" log_id=0100020007 type=event subtype=system pri critical vd=root service=kemel status=failure msg="NAT port is exhausted."
What does the log mean?

• A. There is not enough available memory in the system to create a new entry in the NAT port table.
• B. The limit for the maximum number of simultaneous sessions sharing the same NAT port has been reached.
• C. FortiGate does not have any available NAT port for a new connection.
• D. The limit for the maximum number of entries in the NAT port table has been reached.

Answer: B

NEW QUESTION 6
Two independent FortiGate HA clusters are connected to the same broadcast domain. The administrator has reported that both clusters are using the same HA virtual MAC address. This creates a duplicated MAC address problem in the network. What HA setting must be changed in one of the HA clusters to fix the problem?

• A. Group ID.
• B. Group name.
• C. Session pickup.
• D. Gratuitous ARPs.

Answer: A

Explanation:
https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-high-availability-52/HA_failoverVMAC.htm

NEW QUESTION 7

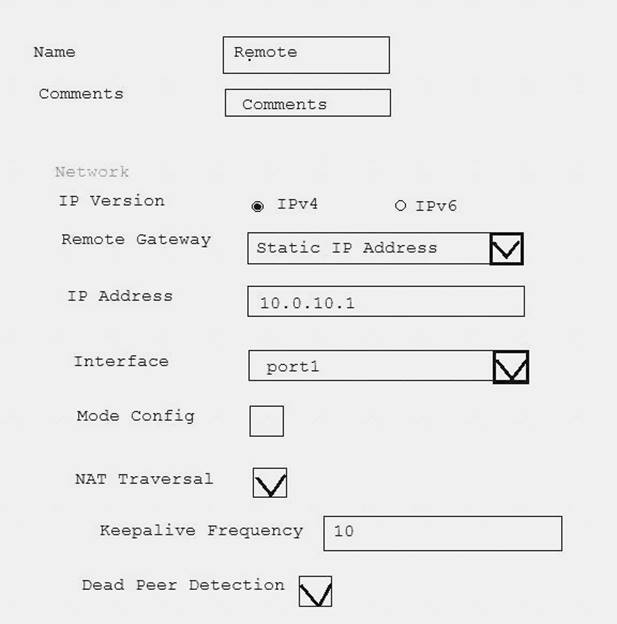

Examine the IPsec configuration shown in the exhibit; then answer the question below.

An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1
diagnose debug application ike -1
diagnose debug enable
The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output. Why isn’t there any output?

• A. The IKE real time shows the phases 1 and 2 negotiations onl
• B. It does not show any more output once the tunnel is up.
• C. The log-filter setting is set incorrectl
• D. The VPN’s traffic does not match this filter.
• E. The IKE real time debug shows the phase 1 negotiation onl
• F. For information after that, the administrator must use the IPsec real time debug instead: diagnose debug application ipsec -1.
• G. The IKE real time debug shows error messages onl
• H. If it does not provide any output, it indicates that the tunnel is operating normally.

Answer: B

NEW QUESTION 8
When using the SSL certificate inspection method for HTTPS traffic, how does FortiGate filter web requests when the browser client does not provide the server name indication (SNI)?

• A. FortiGate uses the Issued To: field in the server’s certificate.
• B. FortiGate switches to the full SSL inspection method to decrypt the data.
• C. FortiGate blocks the request without any further inspection.
• D. FortiGate uses the requested URL from the user’s web browser.

Answer: A

NEW QUESTION 9
When does a RADIUS server send an Access-Challenge packet?

• A. The server does not have the user credentials yet.
• B. The server requires more information from the user, such as the token code for two-factor authentication.
• C. The user credentials are wrong.
• D. The user account is not found in the server.

Answer: B

NEW QUESTION 10
Which statements about bulk configuration changes using FortiManager CLI scripts are correct? (Choose two.)

• A. When executed on the Policy Package, ADOM database, changes are applied directly to the managed FortiGate.
• B. When executed on the Device Database, you must use the installation wizard to apply the changes to the managed FortiGate.
• C. When executed on the All FortiGate in ADOM, changes are automatically installed without creating a new revision history.
• D. When executed on the Remote FortiGate directly, administrators do not have the option to review the changes prior to installation.

Answer: BD

Explanation:
CLI scripts can be run in three different ways:Device Database: By default, a script is executed on the device database. It is recommend you run the changes on the device database (default setting), as this allows you to check what configuration changes you will send to the managed device. Once scripts are run on the device database, you can install these changes to a managed device using the installation wizard.
Policy Package, ADOM database: If a script contains changes related to ADOM level objects and policies, you can change the default selection to run on Policy Package, ADOM database and can then be installed using the installation wizard.
Remote FortiGate directly (through CLI): A script can be executed directly on the device and you don’t need to install these changes using the installation wizard. As the changes are directly installed on the
managed device, no option is provided to verify and check the configuration changes through FortiManager prior to executing it.

NEW QUESTION 11
What is the purpose of an internal segmentation firewall (ISFW)?

• A. It inspects incoming traffic to protect services in the corporate DMZ.
• B. It is the first line of defense at the network perimeter.
• C. It splits the network into multiple security segments to minimize the impact of breaches.
• D. It is an all-in-one security appliance that is placed at remote sites to extend the enterprise network.

Answer: C

Explanation:
ISFW splits your network into multiple security segments. They serve as a breach containers from attacks that come from inside.

NEW QUESTION 12

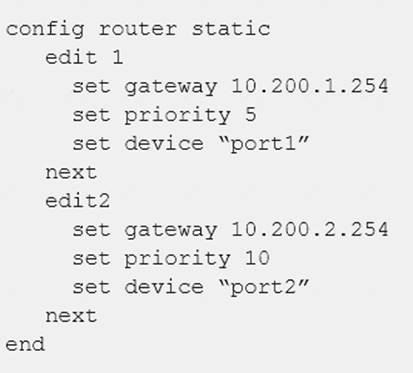

A FortiGate has two default routes:

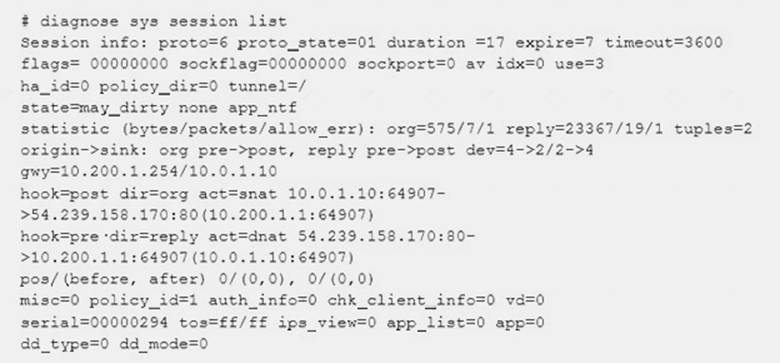

All Internet traffic is currently using port1. The exhibit shows partial information for one sample session of Internet traffic from an internal user:

What would happen with the traffic matching the above session if the priority on the first default route (IDd1) were changed from 5 to 20?

• A. Session would remain in the session table and its traffic would keep using port1 as the outgoing interface.
• B. Session would remain in the session table and its traffic would start using port2 as the outgoing interface.
• C. Session would be deleted, so the client would need to start a new session.
• D. Session would remain in the session table and its traffic would be shared between port1 and port2.

Answer: A

NEW QUESTION 13
View the exhibit, which contains the partial output of an IKE real-time debug, and then answer the question below.
ike 0: comes 10.0.0.2:500->10.0.0.1:500, ifindex=7....
ike 0: IKEv1 exchange=Aggressive id=baf47d0988e9237f/2f405ef3952f6fda len=430 ike 0: in
BAF47D0988E9237F2F405EF3952F6FDA0110040000000000000001AE0400003C0000000100000001000000
ike 0:RemoteSite:4: initiator: aggressive mode get 1st response...
ike 0:RemoteSite:4: VID RFC 3947 4A131c81070358455C5728F20E95452F ike 0:RemoteSite:4: VID DPD AFCAD71368A1F1C96B8696FC77570100
ike 0:RemoteSite:4: VID FORTIGATE 8299031757A36082C6A621DE000502D7
ike 0:RemoteSite:4: peer is FortiGate/Fortios (v5 b727)
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3C0000000
ike 0:RemoteSite:4: received peer identifier FQDN ‘remore’ ike 0:RemoteSite:4: negotiation result
ike 0:RemoteSite:4: proposal id = 1:
ike 0:RemoteSite:4: protocol id = ISAKMP: ike 0:RemoteSite:4: trans_id = KEY_IKE.
ike 0:RemoteSite:4: encapsulation = IKE/none
ike 0:RemoteSite:4: type=OAKLEY_ENCRYPT_ALG, val=AES_CBC, key –len=128 ike 0:RemoteSite:4: type=OAKLEY_HASH_ALG, val=SHA.
ike 0:RemoteSite:4: type-AUTH_METHOD, val=PRESHARED_KEY. ike 0:RemoteSite:4: type=OAKLEY_GROUP, val=MODP1024.
ike 0:RemoteSite:4: ISAKMP SA lifetime=86400
ike 0:RemoteSite:4: ISAKMP SA baf47d0988e9237f/2f405ef3952f6fda key 16:
B25B6C9384D8BDB24E3DA3DC90CF5E73
ike 0:RemoteSite:4: PSK authentication succeeded ike 0:RemoteSite:4: authentication OK
ike 0:RemoteSite:4: add INITIAL-CONTACT
ike 0:RemoteSite:4: enc BAF47D0988E9237F405EF3952F6FDA081004010000000000000080140000181F2E48BFD8E9D603F
ike 0:RemoteSite:4: out BAF47D0988E9237F405EF3952F6FDA08100401000000000000008C2E3FC9BA061816A396F009A12
ike 0:RemoteSite:4: sent IKE msg (agg_i2send): 10.0.0.1:500-10.0.0.2:500, len=140, id=baf47d0988e9237f/2 ike 0:RemoteSite:4: established IKE SA baf47d0988e9237f/2f405ef3952f6fda
Which statements about this debug output are correct? (Choose two.)

• A. The remote gateway IP address is 10.0.0.1.
• B. It shows a phase 1 negotiation.
• C. The negotiation is using AES128 encryption with CBC hash.
• D. The initiator has provided remote as its IPsec peer ID.

Answer: BD

NEW QUESTION 14
Which configuration can be used to reduce the number of BGP sessions in an IBGP network?

• A. Neighbor range
• B. Route reflector
• C. Next-hop-self
• D. Neighbor group

Answer: B

Explanation:
Route reflectors help to reduce the number of IBGP sessions inside an AS. A route reflector forwards the routers learned from one peer to the other peers. If you configure route reflectors, you dont’ need to create a full mesh IBGP network. All clients in a cluster only talck to route reflector to get sync routing updates. Route reflectors pass the routing updates to other route reflectors and border routers within the AS.

NEW QUESTION 15

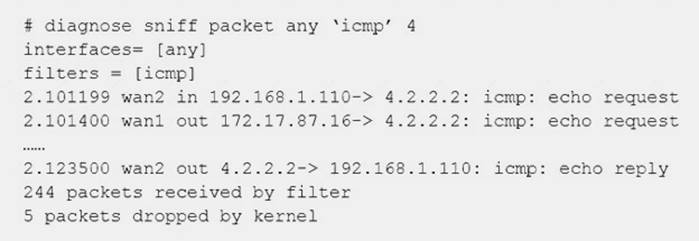

Examine the following partial output from a sniffer command; then answer the question below.

What is the meaning of the packets dropped counter at the end of the sniffer?

• A. Number of packets that didn’t match the sniffer filter.
• B. Number of total packets dropped by the FortiGate.
• C. Number of packets that matched the sniffer filter and were dropped by the FortiGate.
• D. Number of packets that matched the sniffer filter but could not be captured by the sniffer.

Answer: D

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11655

NEW QUESTION 16
Which real time debug should an administrator enable to troubleshoot RADIUS authentication problems?

• A. Diagnose debug application radius -1.
• B. Diagnose debug application fnbamd -1.
• C. Diagnose authd console –log enable.
• D. Diagnose radius console –log enable.

Answer: B

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD32838

NEW QUESTION 17

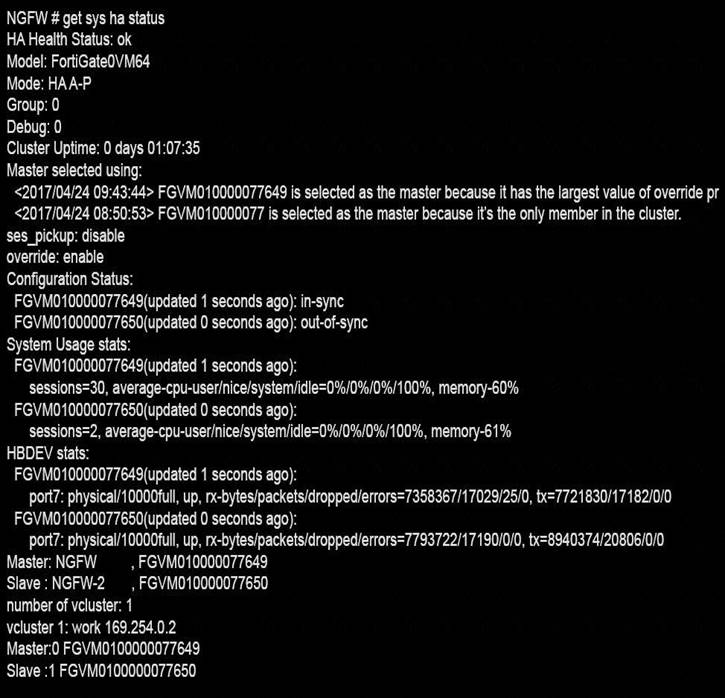

View the exhibit, which contains the output of get sys ha status, and then answer the question below.

Which statements are correct regarding the output? (Choose two.)

• A. The slave configuration is not synchronized with the master.
• B. The HA management IP is 169.254.0.2.
• C. Master is selected because it is the only device in the cluster.
• D. port 7 is used the HA heartbeat on all devices in the cluster.

Answer: AD

NEW QUESTION 18

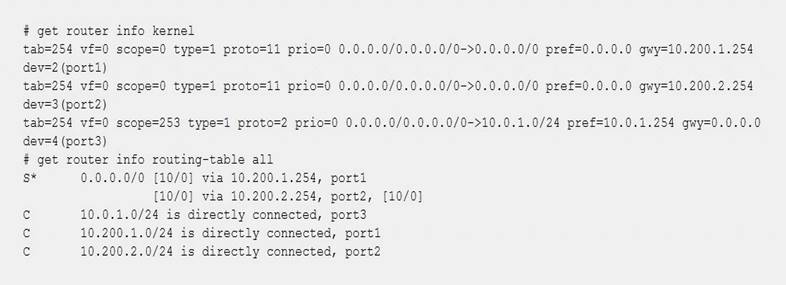

View these partial outputs from two routing debug commands:

Which outbound interface will FortiGate use to route web traffic from internal users to the Internet?

• A. Both port1 and port2
• B. port3
• C. port1
• D. port2

Answer: A

NEW QUESTION 19
View the exhibit, which contains the output of a BGP debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

• A. The local router's BGP state is Established with the 10.125.0.60 peer.
• B. Since the counters were last reset; the 10.200.3.1 peer has never been down.
• C. The local router has received a total of three BGP prefixes from all peers.
• D. The local router has not established a TCP session with 100.64.3.1.

Answer: AD

NEW QUESTION 20
How does FortiManager handle FortiGuard requests from FortiGate devices, when it is configured as a local FDS?

• A. FortiManager can download and maintain local copies of FortiGuard databases.
• B. FortiManager supports only FortiGuard push to managed devices.
• C. FortiManager will respond to update requests only if they originate from a managed device.
• D. FortiManager does not support rating requests.

Answer: A

NEW QUESTION 21
What configuration changes can reduce the memory utilization in a FortiGate? (Choose two.)

• A. Reduce the session time to live.
• B. Increase the TCP session timers.
• C. Increase the FortiGuard cache time to live.
• D. Reduce the maximum file size to inspect.

Answer: AD

NEW QUESTION 22

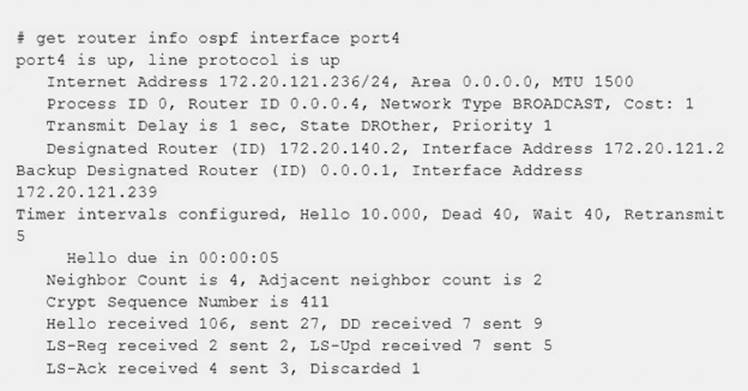

Examine the output of the ‘get router info ospf interface’ command shown in the exhibit; then answer the question below.

Which statements are true regarding the above output? (Choose two.)

• A. The port4 interface is connected to the OSPF backbone area.
• B. The local FortiGate has been elected as the OSPF backup designated router.
• C. There are at least 5 OSPF routers connected to the port4 network.
• D. Two OSPF routers are down in the port4 network.

Answer: AC

Explanation:
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).

NEW QUESTION 23

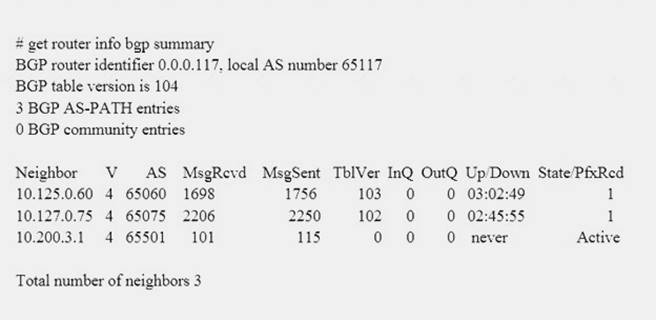

View the exhibit, which contains the output of a BGP debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

• A. For the peer 10.125.0.60, the BGP state of is Established.
• B. The local BGP peer has received a total of three BGP prefixes.
• C. Since the BGP counters were last reset, the BGP peer 10.200.3.1 has never been down.
• D. The local BGP peer has not established a TCP session to the BGP peer 10.200.3.1.

Answer: AD

NEW QUESTION 24
......
