NEW QUESTION 1
View the IPS exit log, and then answer the question below.
# diagnose test application ipsmonitor 3 ipsengine exit log”
pid = 93 (cfg), duration = 5605322 (s) at Wed Apr 19 09:57:26 2021 code = 11, reason: manual
What is the status of IPS on this FortiGate?

• A. IPS engine memory consumption has exceeded the model-specific predefined value.
• B. IPS daemon experienced a crash.
• C. There are communication problems between the IPS engine and the management database.
• D. All IPS-related features have been disabled in FortiGate’s configuration.

Answer: D

Explanation:
The command diagnose test application ipsmonitor includes many options that are useful for troubleshooting purposes.Option 3 displays the log entries generated every time an IPS engine process stopped. There are various reasons why these logs are generated:Manual: Because of the configuration, IPS no longer needs to run (that is, all IPS-releated features have been disabled)

NEW QUESTION 2
In which two states is a given session categorized as ephemeral? (Choose two.)

• A. A TCP session waiting to complete the three-way handshake.
• B. A TCP session waiting for FIN ACK.
• C. A UDP session with packets sent and received.
• D. A UDP session with only one packet received.

Answer: AD

NEW QUESTION 3

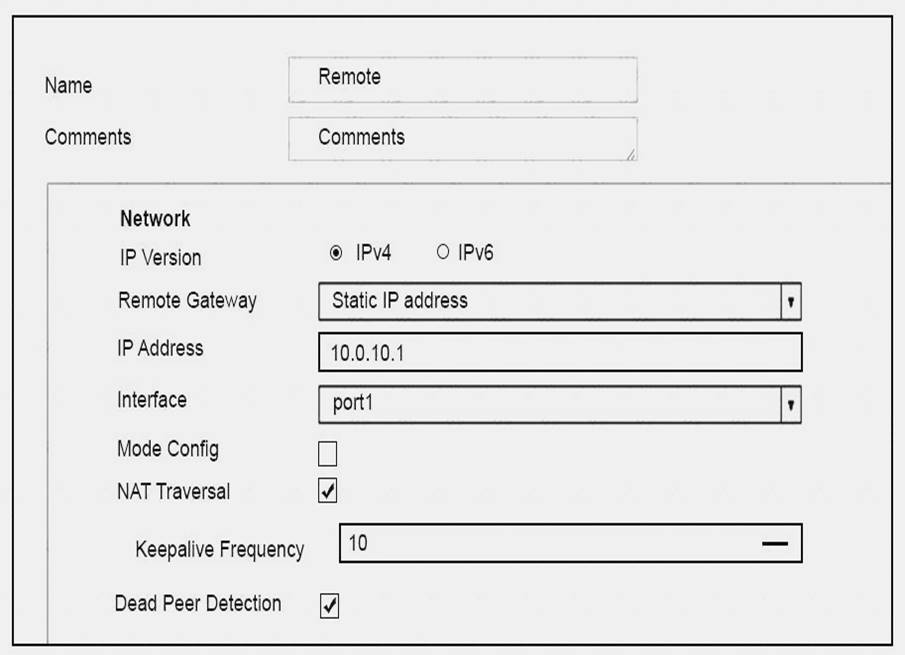

View the exhibit, which contains a screenshot of some phase-1 settings, and then answer the question below.

The VPN is up, and DPD packets are being exchanged between both IPsec gateways; however, traffic cannot pass through the tunnel. To diagnose, the administrator enters these CLI commands:

However, the IKE real time debug does not show any output. Why?

• A. The debug output shows phases 1 and 2 negotiations onl
• B. Once the tunnel is up, it does not show any more output.
• C. The log-filter setting was setincorrectl
• D. The VPN’s traffic does not match this filter.
• E. The debug shows only error message
• F. If there is no output, then the tunnel is operating normally.
• G. The debug output shows phase 1 negotiation onl
• H. After that, the administrator must enable the following real time debug: diagnose debug application ipsec -1.

Answer: D

NEW QUESTION 4

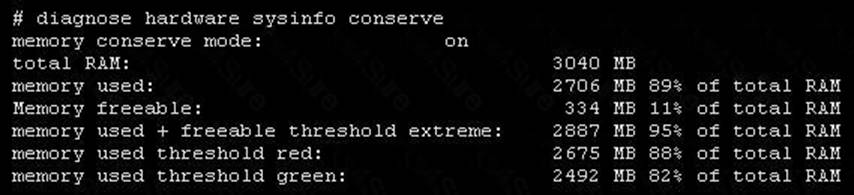

View the exhibit, which contains the output of a debug command, and then answer the question below.

Which one of the following statements about this FortiGate is correct?

• A. It is currently in system conserve mode because of high CPU usage.
• B. It is currently in extreme conserve mode because of high memory usage.
• C. It is currently in proxy conserve mode because of high memory usage.
• D. It is currently in memory conserve mode because of high memory usage.

Answer: D

NEW QUESTION 5

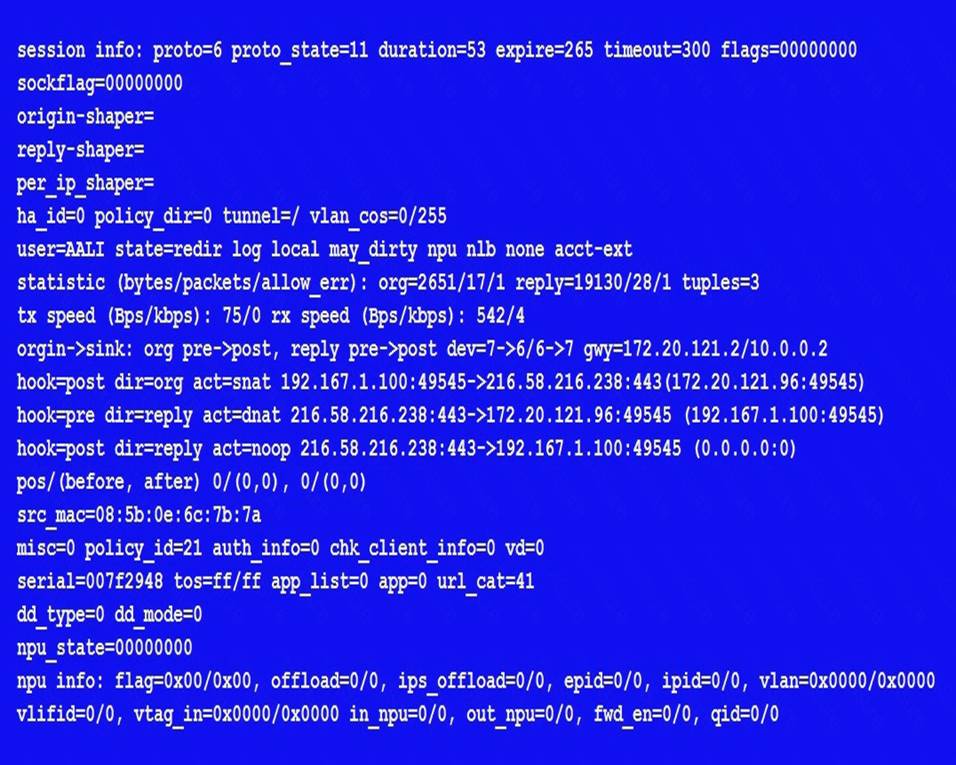

View the exhibit, which contains an entry in the session table, and then answer the question below.

Which one of the following statements istrue regarding FortiGate’s inspection of this session?

• A. FortiGate applied proxy-based inspection.
• B. FortiGate forwarded this session without any inspection.
• C. FortiGate applied flow-based inspection.
• D. FortiGate applied explicitproxy-based inspection.

Answer: A

Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD30042

NEW QUESTION 6
An administrator has configured a FortiGate device with two VDOMs: root and internal. The administrator has also created and inter-VDOM link that connects both VDOMs. The objective is to have each VDOM advertise some routes to the other VDOM via OSPF through the inter-VDOM link. What OSPF configuration settings must match in both VDOMs to have the OSPF adjacency successfully forming? (Choose three.)

• A. Router ID.
• B. OSPF interface area.
• C. OSPF interface cost.
• D. OSPF interface MTU.
• E. Interface subnet mask.

Answer: BDE

NEW QUESTION 7

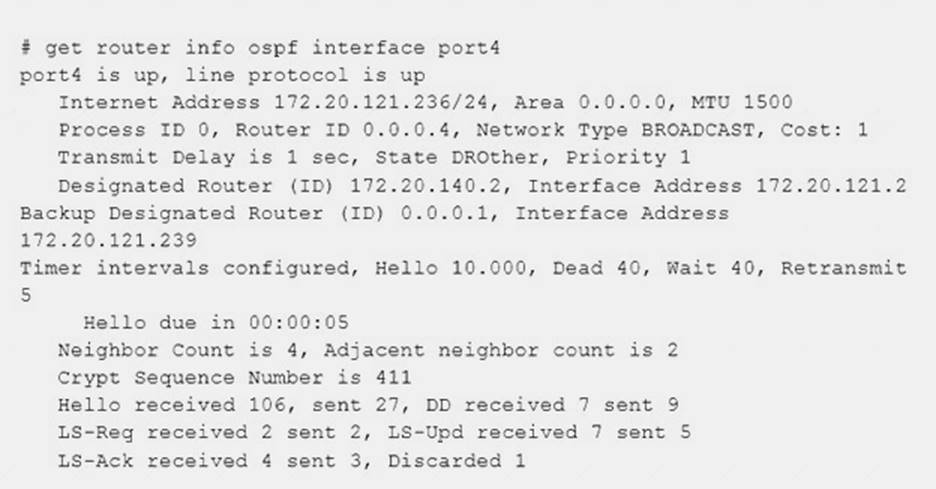

Examine the output of the ‘get router info ospf interface’ command shown in the exhibit; then answer the question below.

Which statements are true regarding the above output? (Choose two.)

• A. The port4 interface is connected to the OSPF backbone area.
• B. The local FortiGate has been elected as theOSPF backup designated router.
• C. There are at least 5 OSPF routers connected to the port4 network.
• D. Two OSPF routers are down in the port4 network.

Answer: AC

Explanation:
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So ourFG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).

NEW QUESTION 8
Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)

• A. SIP session helper runs in the kernel; SIP ALG runs as a user space process.
• B. SIP ALG supports SIP HA failover; SIP helper does not.
• C. SIP ALG supports SIP over IPv6; SIP helperdoes not.
• D. SIP ALG can create expected sessions for media traffic; SIP helper does not.
• E. SIP helper supports SIP over TCP and UDP; SIP ALG supports only SIP over UDP.

Answer: BCD

NEW QUESTION 9
Which two statements about FortiManager is true when it is deployed as a local FDS? (Choose two.)

• A. It caches available firmware updates for unmanaged devices.
• B. It can be configured as an update server, or a rating server, but not both.
• C. It supports rating requests fromboth managed and unmanaged devices.
• D. It provides VM license validation services.

Answer: AD

NEW QUESTION 10
An administrator is running the following sniffer in a FortiGate: diagnose sniffer packet any “host 10.0.2.10” 2
What information is included in the output of the sniffer? (Choose two.)

• A. Ethernet headers.
• B. IP payload.
• C. IPheaders.
• D. Port names.

Answer: BC

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11186

NEW QUESTION 11
What does the dirty flag mean in a FortiGate session?

• A. Traffic has been blocked by the antivirus inspection.
• B. The next packet must be re-evaluated against the firewall policies.
• C. The session must be removed from the former primaryunit after an HA failover.
• D. Traffic has been identified as from an application that is not allowed.

Answer: B

Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD40119&sliceId=1

NEW QUESTION 12

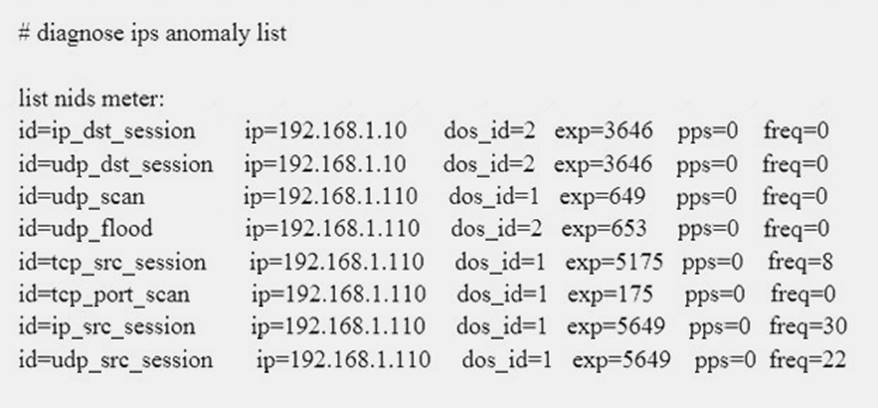

Examine the output of the ‘diagnose ips anomaly list’ command shown in the exhibit; then answer the question below.

Which IP addresses are included in the output of this command?

• A. Those whose traffic matches a DoS policy.
• B. Those whose traffic matches an IPS sensor.
• C. Those whose traffic exceeded a threshold of a matching DoS policy.
• D. Those whosetraffic was detected as an anomaly by an IPS sensor.

Answer: A

NEW QUESTION 13
Which configuration can be used to reduce the number of BGP sessions in an IBGP network?

• A. Neighbor range
• B. Route reflector
• C. Next-hop-self
• D. Neighbor group

Answer: B

Explanation:
Route reflectors help to reduce the number of IBGP sessions inside an AS. A route reflector forwards the routers learned from one peer to the other peers. If you configure route reflectors, you dont’ need to create a full mesh IBGP network. All clients in a cluster only talck to route reflector to get sync routing updates. Route reflectors pass the routing updates to other route reflectors and border routers within the AS.

NEW QUESTION 14

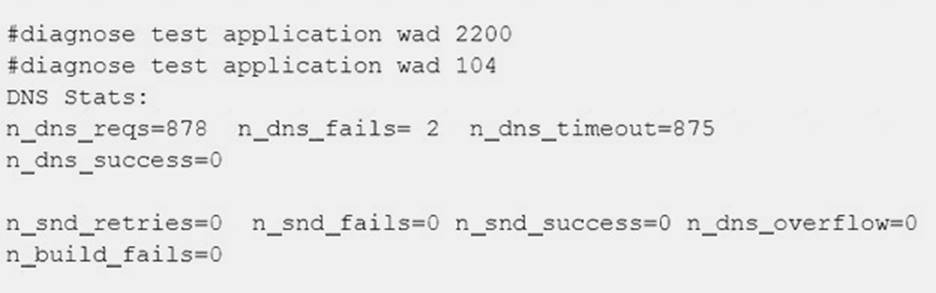

A FortiGate is configured as an explicit web proxy. Clients using this web proxy are reposting DNS errors when accessing any website. The administrator executes the following debug commands and observes that the n-dns-timeout counter is increasing:

What should the administrator check to fix the problem?

• A. The connectivity between the FortiGate unit and the DNS server.
• B. The connectivity between the client workstations and the DNS server.
• C. That DNS traffic from client workstations isallowed by the explicit web proxy policies.
• D. That DNS service is enabled in the explicit web proxy interface.

Answer: A

NEW QUESTION 15
Which the following events can trigger the election of a new primary unit in a HA cluster? (Choose two.)

• A. Primary unit stops sending HA heartbeatkeepalives.
• B. The FortiGuard license for the primary unit is updated.
• C. One of the monitored interfaces inthe primary unit is disconnected.
• D. A secondary unit is removed from the HA cluster.

Answer: AB

NEW QUESTION 16

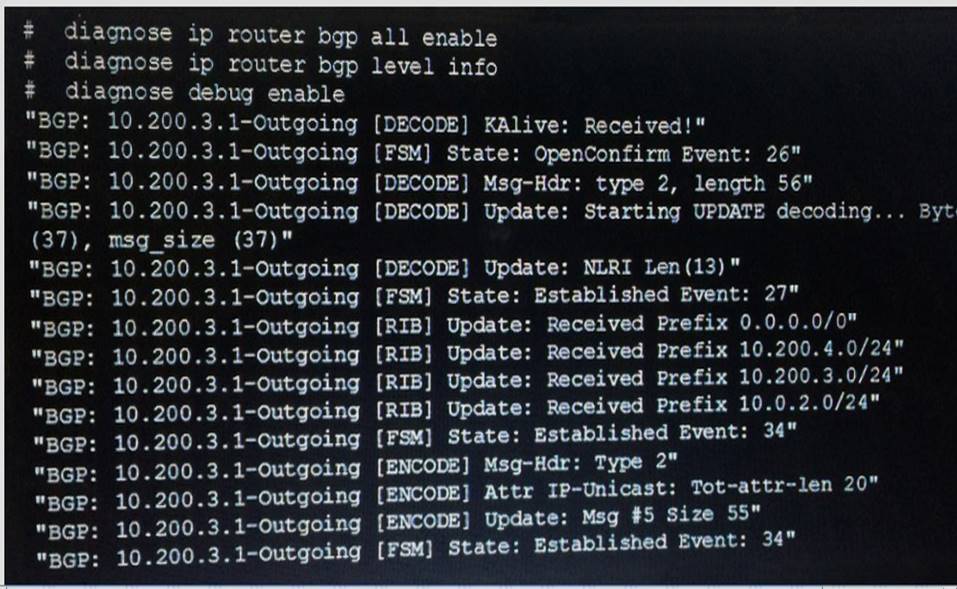

Examine the output fromthe BGP real time debug shown in the exhibit, then the answer the question below:

Which statements are true regarding the output in the exhibit? (Choose two.)

• A. BGP peers have successfully interchangedOpenandKeepalivemessages.
• B. Local BGP peer received a prefix for a default route.
• C. The state of the remote BGP peer isOpenConfirm.
• D. The state of the remote BGP peer will go toConnectafter it confirms the received prefixes.

Answer: AB

NEW QUESTION 17
An administrator has enabled HA session synchronization in a HA cluster with two members. Which flag is added to a primary unit’s session to indicate that it has been synchronized to the secondary unit?

• A. redir.
• B. dirty.
• C. synced
• D. nds.

Answer: C

Explanation:
The synced sessions have the‘synced’ flag. The command ‘diag sys session list’ can be used to see the sessions on the member, with the associated flags.

NEW QUESTION 18
A corporate network allows Internet Access to FSSO users only. The FSSO user student does not have Internet access after successfully logged into the Windows AD network. The output of the ‘diagnose debug authd fsso list’ command does not show student as an active FSSO user. Other FSSO users can access the Internet without problems. What should the administrator check? (Choose two.)

• A. The user student must not be listed in the CA’s ignore user list.
• B. The user student must belong to one or more of the monitored user groups.
• C. The student workstation’s IP subnet must be listed in the CA’s trusted list.
• D. At least one of the student’s user groups must be allowed by a FortiGate firewall policy.

Answer: AD

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828

NEW QUESTION 19
What is the purpose of an internal segmentation firewall (ISFW)?

• A. It inspects incoming traffic to protect services in the corporate DMZ.
• B. It is the first line of defense at the network perimeter.
• C. It splits the network into multiple security segments to minimize the impact of breaches.
• D. It is an all-in-one security appliance that is placed at remotesites to extend the enterprise network.

Answer: C

Explanation:
ISFW splits your network into multiple security segments. They serve as a breach containers from attacks that come from inside.

NEW QUESTION 20

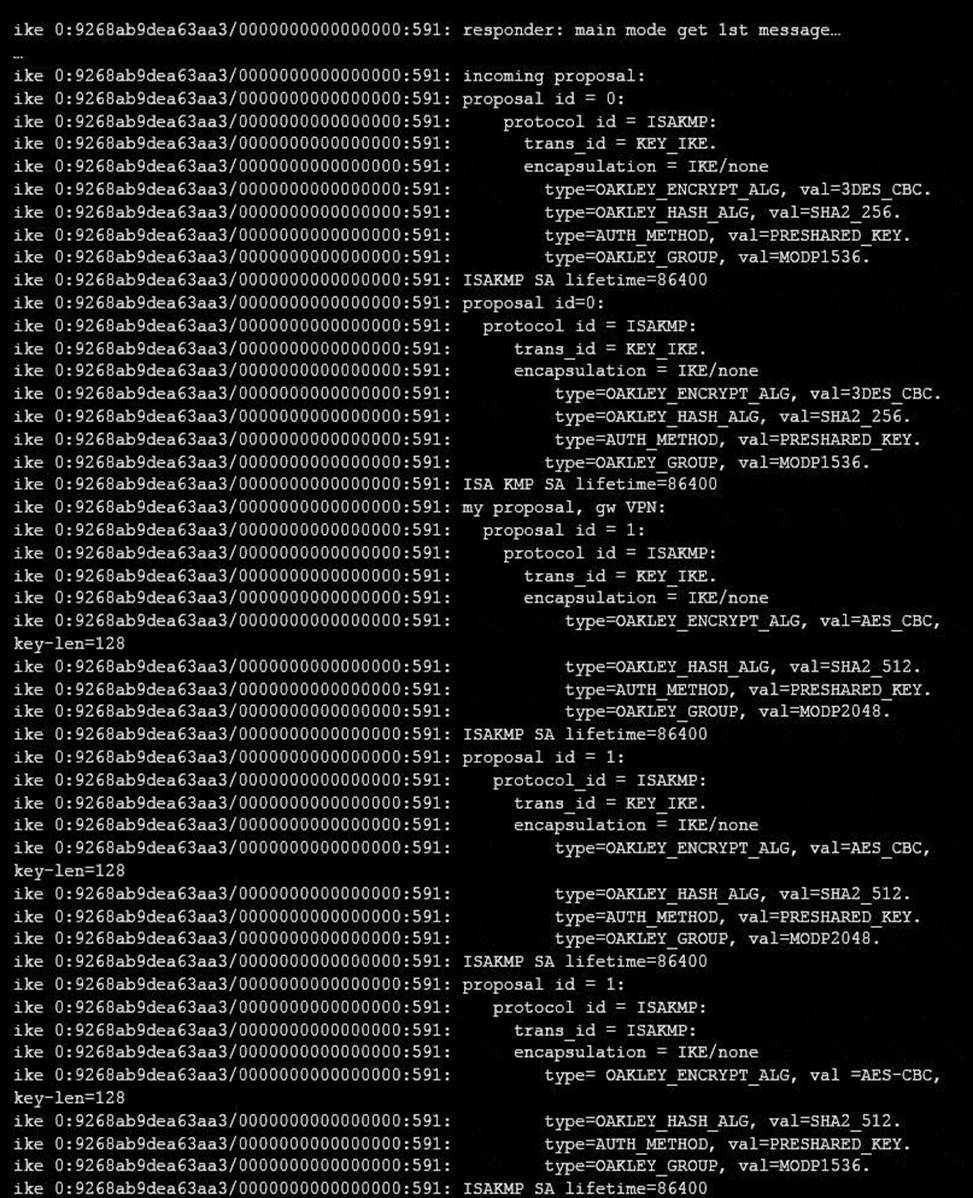

View the exhibit, which contains the partial output of an IKE real time debug, and then answer thequestion below.

The administrator does not have access to the remote gateway. Based on the debug output, what configuration changes can the administrator make to the local gateway to resolve the phase 1 negotiation error?

• A. Change phase 1encryption to AESCBC and authentication to SHA128.
• B. Change phase 1 encryption to 3DES and authentication to CBC.
• C. Change phase 1 encryption to AES128 and authentication to SHA512.
• D. Change phase 1 encryption to 3DES and authentication to SHA256.

Answer: C

NEW QUESTION 21
The CLI command set intelligent-mode <enable | disable> controls the IPS engine’s adaptive scanning behavior. Which of the following statements describes IPS adaptive scanning?

• A. Determines the optimal number of IPS engines required based on system load.
• B. Downloads signatures on demand from FDS based on scanning requirements.
• C. Determines when it is secure enough to stop scanning session traffic.
• D. Choose a matching algorithm based on available memory and the type of inspection being performed.

Answer: C

Explanation:
Configuring IPS intelligenceStarting with FortiOS 5.2, intelligent-mode is a new adaptive detection method. This command is enabled the default and it means that the IPS engine will perform adaptive scanning so that, for some traffic, the FortiGate can quickly finish scanning and offload the traffic to NPU or kernel. It is a balanced method which could cover all known exploits. When disabled, the IPS engine scans every single byte.
config ips globalset intelligent-mode {enable|disable}end
