NEW QUESTION 1
You have been tasked to design an Ethernet network capable of Motion control with cycle times not to exceed 1ms. In order to create a more deterministic network, what characteristic/s should you primarily focus on?

• A. Lattency and Jitter
• B. Redundancy and high availability
• C. Explicit and Implicit messaging
• D. This cycle time is not possible on an Ethernet network
• E. Gigabit port speed

Answer: A

NEW QUESTION 2
ProfiNET has been disabled on a Cisco Industrial Ethernet switch. Which CLI command will correctly enable ProfiNET on the switch?

• A. switch(config)#profinet
• B. switch(config-if)#switchport profinet vlan 10
• C. switch(config)#vlan 10 profinet
• D. switch#enable profinet

Answer: A

NEW QUESTION 3
Why is SSH preferred over Telnet as a method of accessing a network device to alter or view the configuration?

• A. Telnet encrypts only the login information, not the entire transmission.
• B. SSH requires fewer network resources and no additional configuration.
• C. Telnet is more difficult to use and configure than SSH.
• D. SSH encrypts the login and session information.

Answer: D

NEW QUESTION 4
Which of the following correctly pairs the dotted decimal subnet mask with the correct number of binary bits that represent the subnet mask?

• A. 255.255.255.192 and /25
• B. 255.255.255.248 and /28
• C. 255.255.255.224 and /26
• D. 255.255.255.248 and /27
• E. 255.255.255.240 and /28
• F. 255.255.255.240 and /16

Answer: E

NEW QUESTION 5
To correctly integrate a Cisco Industrial Ethernet switch into a ProfiNET management system such as SIMATIC STEP 7 or TIA Portal, which is a mandatory action?

• A. Configure an IP address on the ProfiNET VLAN interface
• B. The General Station Description (GSD) file must be uploaded from the switch to the management system.
• C. Enable Quality of Service (QoS) and ensure the management station interface is trusted
• D. Enable SNMP on the switch

Answer: B

NEW QUESTION 6

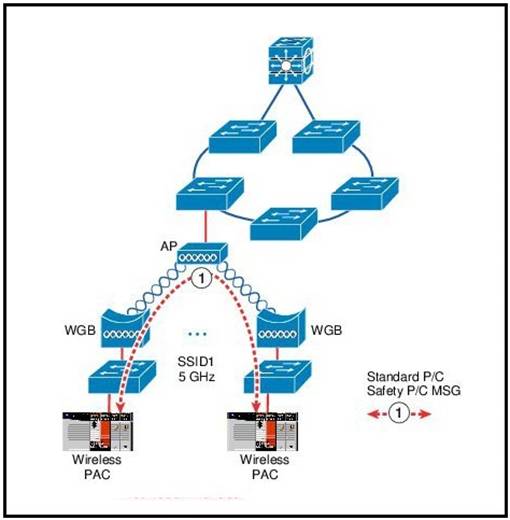

Refer to the exhibit.

What issue does this topology present for the represented traffic flow?

• A. Standard Produce/Consume traffic is not suitable for an 802.11 wireless environment.
• B. Only one of the Work Group Bridges can transmit at a time, because 802.11 is half duplex.
• C. The Converged Plant-wide Ethernet best practices for 802.11 wireless don't allow for PAC to PAC traffic.
• D. I/O control traffic should utilize the 2.4 GHz band based on best practices.

Answer: B

NEW QUESTION 7
Which describes the relationship between a workgroup bridge?

• A. Wired clients of a workgroup bridge can communicate, through the workgroup bridge, with wireless clients of an autonomous or a controller-based access point
• B. Wireless clients of a controller-based AP can communicate, through the workgroup bridge, with wireless clients of an autonomous access point
• C. Wireless clients of an autonomous access point can communicate with wired clients of a workgroup bridge, but Wireless clients of a controller-based access point cannot communicate with wired clients of a workgroup bridge
• D. Wireless clients of a controller-based access point can communicate with wired clients of a workgroup bridge, but Wireless clients of an autonomous access point cannot communicate with wired clients of a workgroup bridge

Answer: A

NEW QUESTION 8
You are making changes to a Stratix 5700 using an Add On Profile (AOP) and a controller which is on-line with RSLogix5000. When do the changes you have made get published to the switch?

• A. While online in RSLogix 5000 software the changes made in the AOP are pushed to the switch after pressing the Set button.
• B. All of the changes are automatically pushed to the switch.
• C. Changes to the AOP can only be made from the switch, not in RSLogix 5000.
• D. RSLogix 5000 will push the changes in the AOP to the Stratix 5700 when you right click on the switch, and choose download to switch

Answer: A

NEW QUESTION 9

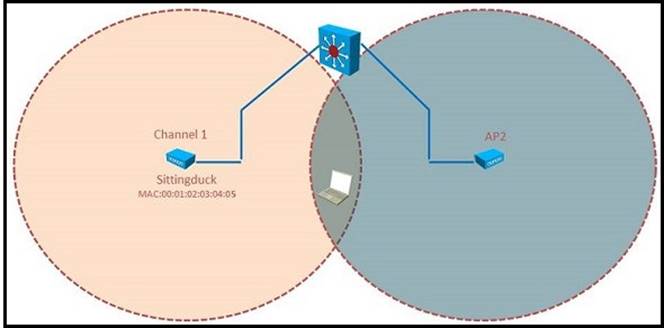

Refer to the exhibit.

Which values are correct for AP 2 to allow for efficient roaming?

• A. Channel 6, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
• B. Channel 1, SSID Sittingduck, BSSID 00:01:02:03:04:05
• C. Channel 1, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
• D. Channel 6, SSID Sittingduck, BSSID 00:01:02:03:04:05

Answer: A

NEW QUESTION 10
What are three Cisco best practices for running I/O control traffic in a wireless environment? (Choose three)

• A. 3200 packets per second and 20% bandwidth for HMI and maintenance traffic.
• B. 2200 packets per second and 20% bandwidth for HMI and maintenance traffic
• C. I/O control traffic can be run on 2.4 or 5 GHZ channels
• D. I/O control traffic should be run on 5GHZ channels only
• E. Standard I/O RPIs less than 20ms are not practical for wireless media because the maximum latency and jitter become comparable or greater than the RPI
• F. Standard I/O RPIs less than 10ms are not practical for wireless media because the maximum latency and jitter become comparable or greater than the RPI

Answer: BDF

NEW QUESTION 11

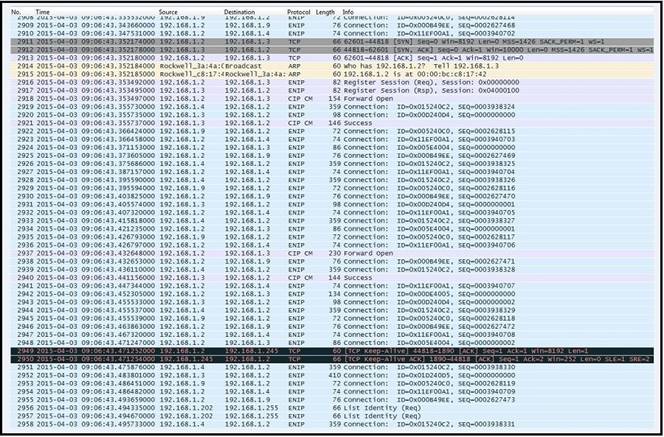

Refer to the exhibit. Which lines represent a CIP connection being established between two devices?

• A. 2914 and 2915
• B. 2918 and 2921
• C. 2920 and 2924
• D. 2937 and 2940

Answer: B

NEW QUESTION 12
Which in-depth approach is used when deploying defense in an industrial zone?

• A. Use PLCs and control systems from multiple vendors in such a way that the process will become resilient for failures of one vendor.
• B. Deploy two factor authentications for all operators which need to login remote while working from home.
• C. Collect log files at a central location for easy back-up and encryption to provide privacy.
• D. Create multiple zones in the industrial zone and protect / inspect traffic between the zones with firewalls and intrusion monitors.

Answer: D

NEW QUESTION 13
Which three of the following components must be elected before the Spanning Tree Protocol can converge in a switched LAN? (Choose three.)

• A. designated ports
• B. duplex operating mode
• C. fast mode ports
• D. root bridge
• E. root ports
• F. BDPU priority

Answer: ADE

NEW QUESTION 14
A cookie cutter machine requires 2 standard controllers and a safety controller. All of these controllers and machine level I/O have been placed on VLAN 104. The safety controller must monitor an emergency stop connected to an I/O adapter on an adjacent machine (VLAN 105). Which packet type will be used?

• A. UDP Multicast TTL = 1
• B. UDP Multicast TTL = 2
• C. UDP Unicast
• D. TCP Unicast

Answer: C

NEW QUESTION 15

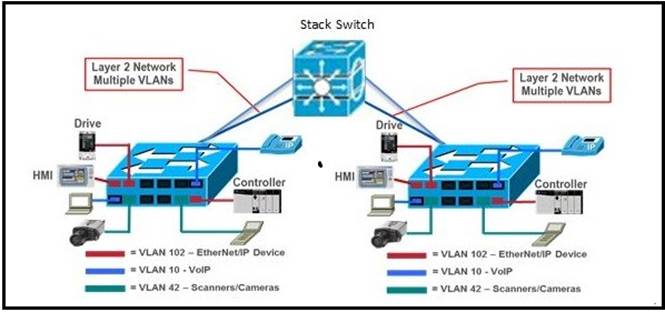

Refer to the exhbit. Which three elements would enable high availability and predictable performance for a motion control application spread across two switches (with video and I/O traffic)? (Choose three)

• A. Configure QoS to give PTP traffic the highest priority
• B. Fiber optic uplinks
• C. Redundant uplinks
• D. Configure QoS to give I/O traffic the highest priority
• E. Copper uplinks
• F. Interconnect the two switches

Answer: ABC

NEW QUESTION 16
Profinet has been disabled on a Cisco Industrial Ethernet switch, which CLI commands correctly enable ProfiNET on VLAN 10?

• A. switch(config)#profinet switch(config)#profinet vlan 10
• B. switch#enable profinet switch(config)#profinet vlan 10
• C. switch(config)#profinet switch(config)#vlan 10 switch(config-vlan)#profinet
• D. switch#enable profinet switch(config)#vlan 10 switch(config-vlan)#profinet

Answer: A

NEW QUESTION 17
You are called at home at 3am by an unskilled machine operator with a suspected network related problem; the controller LEDs are all normal but the output module's communications LED is not on. The operator has verfied the cable is functional and
correctly connected from the communication module to the switch. What is the next check that you ask the unskilled machine operator to make?

• A. Log onto the switch using the console port and check that IGMP snooping is enabled
• B. Open wireshark and check whether the controller is issuing a forward open instruction to the device
• C. Open the diagnostic faceplate on the HMI for the control panel switch and check that the relevant ports are enabled and not in alarm
• D. Open Studio 5000 and check the module status tab for the affected output module

Answer: C

NEW QUESTION 18
Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?

• A. Stranded, shielded wire with an industrial jacket and M12 connectors
• B. Solid, unshielded commercial jacket wire, and M12 connectors
• C. Stranded, unshielded wire with an industrial jacket, and commercial grade RJ45 connectors
• D. Solid, shielded wire with commercial grade jacket, and commercial grade RJ45 connectors

Answer: A

NEW QUESTION 19
Given the CIA triad elements, which ensures first that the data is encrypted and secure, second that the data is trustworthy, and third that the data is accessible by those who need it?

• A. CIA
• B. ICA
• C. ACI
• D. CAI

Answer: A

NEW QUESTION 20
It is common to use Resilient Ethernet Protocol (REP) on the manufacturing floor as a resiliency protocol, as opposed to the Enterprise where it is not generally deployed. What are two reasons why REP is more suitable for the plant floor? (Choose two)

• A. REP is only supported on Industrial Ethernet switches, it is not supported on Catalyst switches.
• B. REP converges faster than Spanning Tree, allowing for greater network availability.
• C. REP supports Industrial Ethernet protocols better because it moves the packets faster.
• D. Running dual cables from access switches to an aggregation switch can have a much higher cost on the plant floor than in the Enterprise and running a ring protocol like REP provides resiliency at a lower cost.
• E. Industrial protocols can be negatively impacted by the number of nodes the Ethernet frame traverses, REP provides a topology with no more than 3 nodes for any data path.

Answer: BD

NEW QUESTION 21

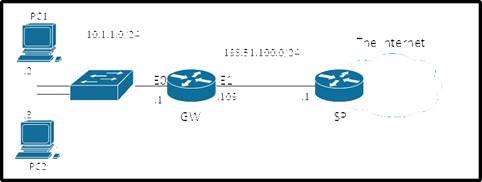

Refer to the exhibit.

NAT has been configured on the router 'GW' and the IP addresses of router 'GW' have been configured properly. Users of PC1 and PC2 are able to ping the IP address 198.51.100.1 but are unable to reach any other IP addresses on the Internet. The ISP confirmed that their configuration is correct. Which option would likely correct the problem?

• A. ip access-list extended ACL_OUTBOUND permit ip 10.1.1.0 0.0.0.255 anyinterface Ethernet1ip access-group ACL_OUTBOUND out
• B. interface Ethernet1 ip nat outside
• C. interface Ethernet0 ip nat inside
• D. ip route 0.0.0.0 0.0.0.0 198.51.100.1

Answer: D

NEW QUESTION 22
What are two benefits of a star network topology? (Choose two.)

• A. Disruption of the entire network is not required when adding new machines.
• B. Any problem which leaves the network inoperable can be traced to the central hub.
• C. This network type requires less cable as compared to linear bus topology.
• D. The performance of one of the numerous nodes cannot reflect on the performance of other nodes.
• E. The performance of the entire network is directly dependent on the performance of the hub.

Answer: AB

NEW QUESTION 23

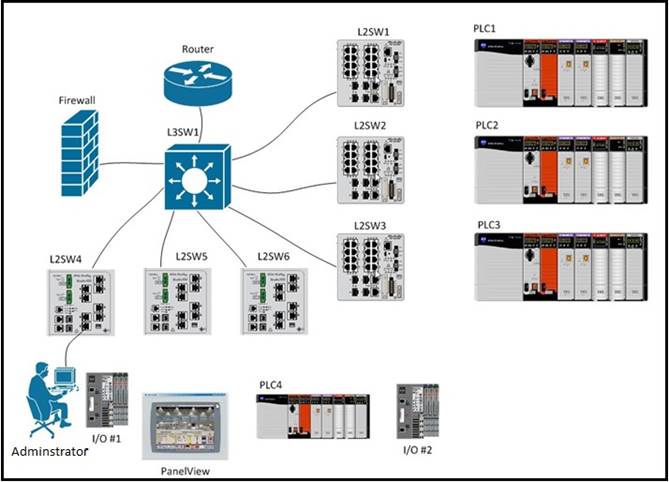

Refer to exhibit. The administrator has configured the following device IP settings, but did not keep track of which ports the devices were connected to. The administrator is able to ping each device but needs to update the network documentation to include the switch and interface where each device is connected. The administrator does not want to walk to each device and switch to track down the information.

Which steps below would you execute in sequence to document the switch and interface where each device is connected?
1. View the ARP table on L3SW1
2. View the ARP table on the administrator's station
3. View the ARP table on L2SW4
4. PING all the devices
5. View the MAC address table on all switches
6. View the MAC address table on the administrator's station

• A. 2,4,5
• B. 2,5,4
• C. 4,3,6
• D. 4,1,5

Answer: D
