NEW QUESTION 1
Which identification for EPGs can you use to check zone rules?

• A. PcTag
• B. VXAN
• C. VLAN
• D. EPG name

Answer: A

NEW QUESTION 2

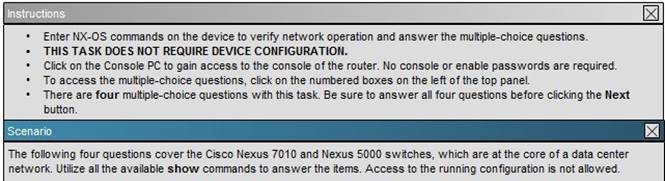

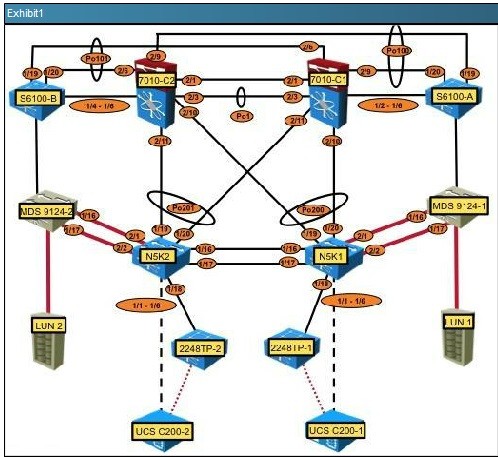

Which statement is true regarding the port channel 100 and 101 configurations between the Nexus 7010 switches?

• A. The vPC assignments on N7010-C2 are incorrectly swapped
• B. N7010-C1 is not allowing any active VLAN traffic to pass on Po100 and Po101.
• C. LACP is not configured to initiate negotiations.
• D. The vPC peer-keepalive is down between the two Nexus 7000 switches.

Answer: A

Explanation:
The vPC assignments on N7010-C2 are incorrectly swapped.
The “show vpc” command will show you that the keepalives are active, and that there are active VLANs. The “show port-channel summary” command shows that LACP is enabled.

NEW QUESTION 3
Which occurrence happens during an ISSU in a single supervisor configuration?

• A. The control plane is offline for up to 300 seconds
• B. NTP sessions stay alive and active.
• C. FLOGI/fdisc or logo requests from servers fail until the ISSU is complete.
• D. The time-to-live value tor CDP is increased (360 seconds) if it is less than the recommended timeout value.

Answer: C

NEW QUESTION 4
Which two statements are true regarding vPC? (Choose two,)

• A. A peer link is required,
• B. STP is disabled.
• C. There is VLLN-based load balancing
• D. with vPC, there are no blocked ports

Answer: AD

NEW QUESTION 5
Your customer has a dual Cisco Nexus 7010 Switches in its data center. Customer's representatives want to know how to determine if Cisco IOS ISSU is possible on the switches as they are upgrading to version 6.0.4. Which command is useful to determine if the upgrade will be non-disruptive?

• A. N7010-C1# show system redundancy ha status
• B. N7010-C1# show incompatibility system
• C. N7010-C1# install all
• D. N7010-C1# show issu test bootflash:n7000-s1-system.6.0.4.bin

Answer: C

NEW QUESTION 6
Which option is a best practice that should be followed When replacing a CISCO Nexus 5000 Series switch in a vPC topology?

• A. Connect a dual-homed Fabric Extender topology fabric port to the replacement switch.
• B. Ensure that the vPC role priority of the replacement switch is equal to the existing swtch.
• C. Obtain the configuration from the peer switch if the configuration synchronization feature was enabled.
• D. Ensure that the vPC role priorty of the replacement switch is better than the existing switch

Answer: C

NEW QUESTION 7

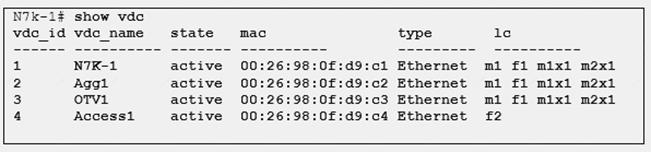

Refer to the exhibit.

You attempt to delete the N7K-1 VDC, the operation is unsuccessful. Which cause of the issue is true?

• A. Custom resource allocations are assigned in the VDC.
• B. N7K-1 is the default VDC.
• C. You are logged in as vdc-admin.
• D. Interfaces are assigned to N7K-1.

Answer: D

NEW QUESTION 8
What is one requirement for running FabricPath on a Cisco Nexus 7000 Series switches?

• A. You must have an F Series module
• B. You must run NX-OS version 4.2 to run FabrciPath
• C. ISSU needs to be disabled to run FabricPath
• D. LAN_TRANSPORT_SERVICES_PKG license needs to be installed to run FabrciPath

Answer: A

NEW QUESTION 9
The installation of a new OTV network connecting two data centers via a service provider LAN has failed verification steps. Which statement explains why certain types of data are not being successfully transferred across the OTV network?

• A. The number of extended VLANs across all configured overlays may be greater than 256.
• B. The number of MAC addresses on either edge device may exceed 4000.
• C. The additional 42-byte OTV overhead, along with the DF bit being set, may cause the service provider to drop packets based on their 1500 MTU settings.
• D. Having more than two edge devices per site is not supported.

Answer: C

NEW QUESTION 10
When you look at the HSRP state for devices on a VLAN that is extended by OTV, you see the following states: Active, Standby, and Listen. However, you intended each data center device to show the state as Active and Standby. What is the problem?

• A. HSRP is not configured correctly.
• B. A VACL is missing.
• C. A PACL is missing.
• D. This cannot be done.

Answer: A

NEW QUESTION 11

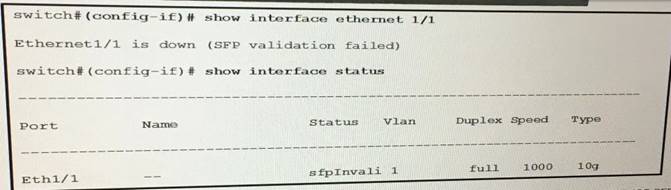

Refer to the exhibit.

The output displays a failed SFP validation. What is the cause of the failure?

• A. The fiber is not connected to the SFP
• B. The SFP is not a valid Cisco SFP
• C. The speed needs to be changed to 10000,
• D. The speed needs to be changed to 1000

Answer: A

NEW QUESTION 12
You use external storage to boot Cisco UCS B-series servers, The servers also have internal disks, You discover that one of the servers fails to boot from the SAN Other servers successfully boot from the SAN, What are too possible causes of the Issue? (Choose too)

• A. cabling
• B. the QOS settings on the Fabric Interconnect
• C. the power consumption of the blade
• D. zoning
• E. LUN masking on the storage array

Answer: DE

NEW QUESTION 13
From Cisco UCS Central, you plan to add two Cisco UCS domains that use the same name for the WWPN pool. What must you do to ensure a successful Integration?

• A. Rename the pools to have the same name.
• B. Assign WWPN pools to Different users.
• C. Move the WWPN pools to different organizations.
• D. Remove duplicate WWPN pools.

Answer: B

NEW QUESTION 14
At any given time, each server can be associated with how many service profiles?

• A. 1
• B. 2
• C. 5
• D. 10
• E. unlimited

Answer: A

NEW QUESTION 15
An administrator disassociates the service profile from a server. What happens to the identity and connectivity information for the physical server?

• A. it takes parameters of other servers in the service profile.
• B. it is reset to factory details.
• C. it uses master service profile parameters.
• D. it is maintain and can be reused.

Answer: D

NEW QUESTION 16
Refer to the exhibit.

You connect Cisco Nexus 5600 Series switches to Cisco Nexus 2200 Series Fabric Extenders by using FET-10G SFPs. Which command resolves the error that is shown in the exhibit?

• A. switch#(config-if)# switchport mode dotlq tunnel trunk
• B. switch#(config-if)# switchport mode fex-fabric
• C. switch#(config-if)# switchport mode dynamic desirable
• D. switch#(config-if)# switchport mode fabricpath

Answer: B

NEW QUESTION 17

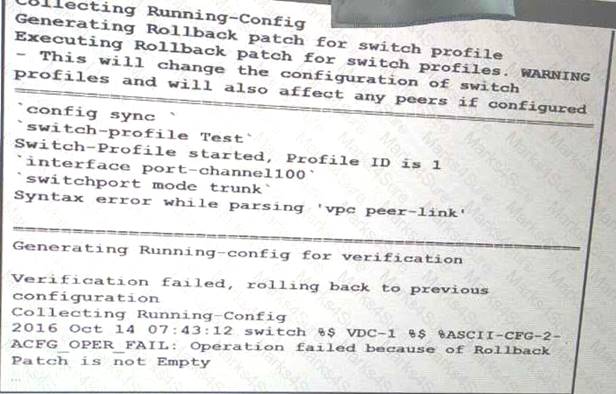

Refer to the exhibit.

Why did the configuration synchronization rollback fail?

• A. The switch profile is incorrect.
• B. The checkpoint test does not exist.
• C. The rollback patch is not empty.
• D. The yPC is not configured

Answer: C

NEW QUESTION 18

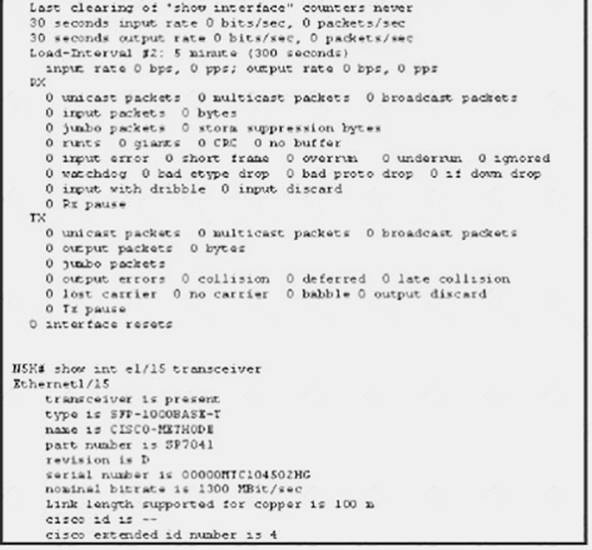

A customer reports that they are missing vPC peer link redundancy between two Cisco Nexus 5548UP switches. The interfaces on both switches are configured and cabled correctly. The interface status is up/down on switch 1 and up/up on switch 2, Which two steps should be taken to isolate the root cause? (Choose two.)

• A. Swap the ends of the fiber-optic cable
• B. ask the customer if the link was ever functional
• C. determine whether the fiber-optic cable manufacturer is valid under the interoperability matrix
• D. swap the transceivers between the two interfaces
• E. determine Whether the fiber-optic cable type (single mode or multimode) matches the X2 modules

Answer: AD

NEW QUESTION 19

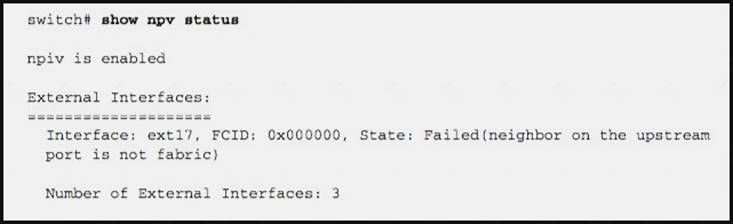

Refer to the exhibit.

A customer is having difficulty getting NPV working. What is the cause of the problem?

• A. The core NPV device is not enabled.
• B. The core NPV device is not a switch.
• C. The core NPV device is not configured on both ends.
• D. The core NPV device is not configured on the upstream port.

Answer: B

NEW QUESTION 20
You configure two external Layer 3 networks on the same node by using BGP. The network fails to establish BGP adjacencies. Which action do you take to resolve the issue?

• A. Explicitly define the loopback addresses on the node
• B. Use OSPF to create a peer that uses external networks
• C. Configure the router ID to use the interface IP address used to establish the BGP connection
• D. Configure the router ID to use the loopback interface

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/basic-config/b_ACI_Config_Guide/b

NEW QUESTION 21
Refer to the exhibit.

Which conditions can trigger on a Cisco Nexus device running FabricPath?

• A. A switch connected to the Cisco Nexus device is running RSTP instead of STP.
• B. ABPDU with bridge priority set to 61140 is received by the switch edge port.
• C. The switch edge port in the STP domain is not configured as root.
• D. VLAN is configured incorrectly on port-channel 100.

Answer: C

NEW QUESTION 22
You see incoming updates in the logs from the hypervisor. But the State Of the Cisco APIC fails to change
Which option is a possible cause Of the issue?

• A. VMM is not integrated properly
• B. The APIC is in a minority state
• C. No uplinks are configured on the Cisco AVS.
• D. The VMM credentials are incorrect.

Answer: D

NEW QUESTION 23

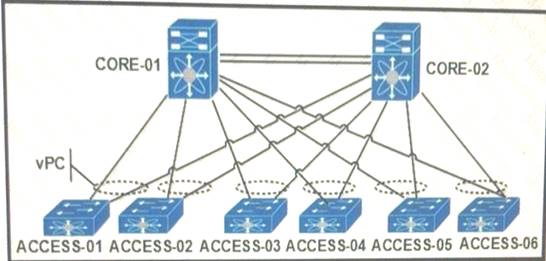

Refer to the exhibit.

CORE-01 fails, which causes a three-second outage. You must improve spanning tree convergence. Which action do you take?

• A. Configure the STP root manually.
• B. Ensure that the RSTP root is also the vPC primary peer
• C. Configure the peer-switch command under the vPC domain
• D. Configure MST instead of RSTP

Answer: C

NEW QUESTION 24

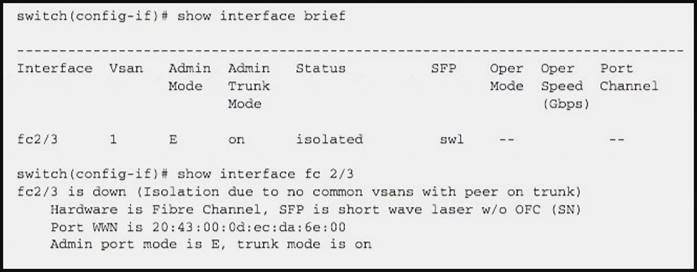

Refer to the exhibit.

During a VSAN outage, you come across this configuration. Please select two possible causes? (Choose two)

• A. no common VSANs on both switches
• B. no common trunks
• C. no common VSAN members in the same trunk
• D. VSANs in trunk are the same, but the trunk is not up

Answer: AC

NEW QUESTION 25
You install a new DIMM in a Cisco UCS C-Series standalone rack server and that DIMM is not recognized by the server. What actions do you take to troubleshoot the problem? (Choose two)

• A. Remove an old DIMM from the blue memory slot and install the new DIMM there.
• B. Verify that the DIMM has been qualified to work on Cisco UCS servers.
• C. Return the DIMM for a new replacement.
• D. Remove and dispose of the bad DIMM.
• E. Verify that the DIMM is in a slot that supports an active CPU.

Answer: BD

NEW QUESTION 26
You use a Cisco UCS VIC 1340 adapter. You discover that the actual vNIC order does not reflect the order specified in the connectivity policy. What must you do to change the placement order?

• A. Change adminHostPort in the vNIC policy.
• B. Change the adapter order in the connectivity policy.
• C. Remove all of the adapters and recreate all of the adapters in the required order
• D. Change adminHostPort in the connectivity policy.

Answer: A

NEW QUESTION 27

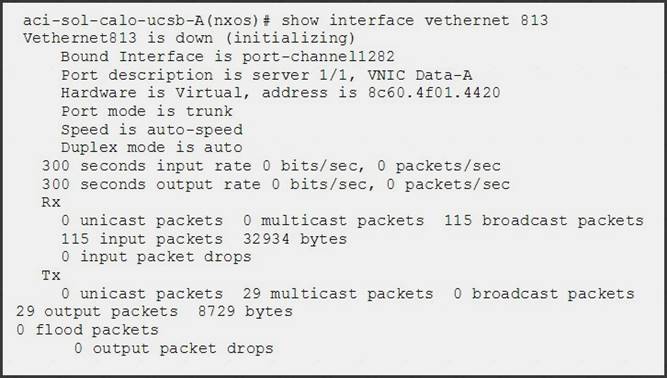

Refer to exhibit.

ACisco UCS admin is troubleshooting an issue with a vNIC not coming up on a blade. When looking at the CLI of the "Fabric Interconnect",the admin runs this command to view the status of the interface. Which option describes a possible reason why the interface is stuck in an "initializing" state?

• A. The service profile is not applied to a blade.
• B. The VLANs defined on the vNIC are not defined on a matching uplink port.
• C. The uplink port is down.
• D. The QoS policy on the vNIC is invalid.
• E. The MTU on the vNIC is higher than the MTU configured in the QoS system classes.

Answer: C

NEW QUESTION 28

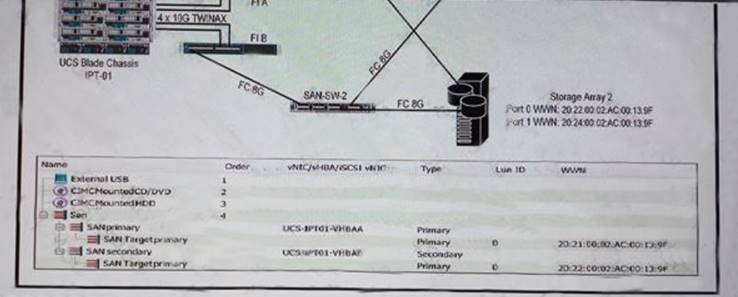

Refer to the exhibit.

SAN-SW-1has failed and must be replaced. Your client reports that all servers are booting from storage array 2 even through storage array 1 is up and reachable by Cisco UCS infrastructure. Which reason is the root cause of the boot anomaly?

• A. SAN target primary under SAN primary must be changed to SAN target secondary under SAN secondary.
• B. San target primary under San secondary must be changed to SAN target secondary under SAN secondary.
• C. SAN target primary under SAN secondary must be changed to SAN target secondary under SAN primary.
• D. SAN target secondary must be added to primary and SAN secondary.

Answer: D

NEW QUESTION 29
In order to fulfill the requirement to prevent the creation of end-to-end loops across a multihomed OTV network that connects two different data centers, what is the solution to this problem?

• A. prioritize the transmission of STP BPDUs across the overlay
• B. design the DCI connectivity as a hub and spoke
• C. define a conservative TTL for all packets traversing the OTV network
• D. enable AED on a per-VLAN basis between each OTV edge device with the same site ID

Answer: D

NEW QUESTION 30
Which two of these would cause two switch fabrics not to merge? (Choose three.)

• A. The switches do not have at least one assigned domain ID in common.
• B. Two switches have different assigned VSANs on the connecting ports.
• C. The switches have different assigned VLANs on the connecting ports.
• D. The static domain ID does not override the dynamic ID.
• E. The election of the static domain is only determined by the WWNs of the two switches.

Answer: BC
