NEW QUESTION 1
A company with multiple service providers wants to speed up BGP convergence time in the event a failure occurs with their primary link. Which approach achieves this goal and does not impact router CPU utilization?

• A. Utilize BFD and tune the multiplier to 50
• B. Lower the BGP hello interval
• C. Decrease the BGP keepalive timer
• D. Utilize BFD and keep the default BGP timers

Answer: C

NEW QUESTION 2
When designing interdomain multicast, which two protocols are deployed to achieve communication between multicast sources and receivers? (Choose two.)

• A. IGMPv2
• B. BIDIR-PIM
• C. MP-BGP
• D. MSDP
• E. MLD

Answer: CD

NEW QUESTION 3
What is the purpose of an edge node in an SD-Access network fabric?

• A. Edge nodes identify and authenticate endpoints and register endpoint information with control plane nodes.
• B. Edge nodes track endpoint IDs to location mappings, along with IPv4, IPv6, or MAC addresses.
• C. Edge nodes are the gateway between the fabric domain and network outside of the fabric.
• D. Edge nodes resolve lookup requests from edge and border nodes to locate destination endpoint IDs.

Answer: A

NEW QUESTION 4
A network solution is being designed for a company that connects to multiple Internet service providers. Which Cisco proprietary BGP path attribute will influence outbound traffic flow?

• A. Local Preference
• B. MED
• C. Weight
• D. AS Path
• E. Community

Answer: C

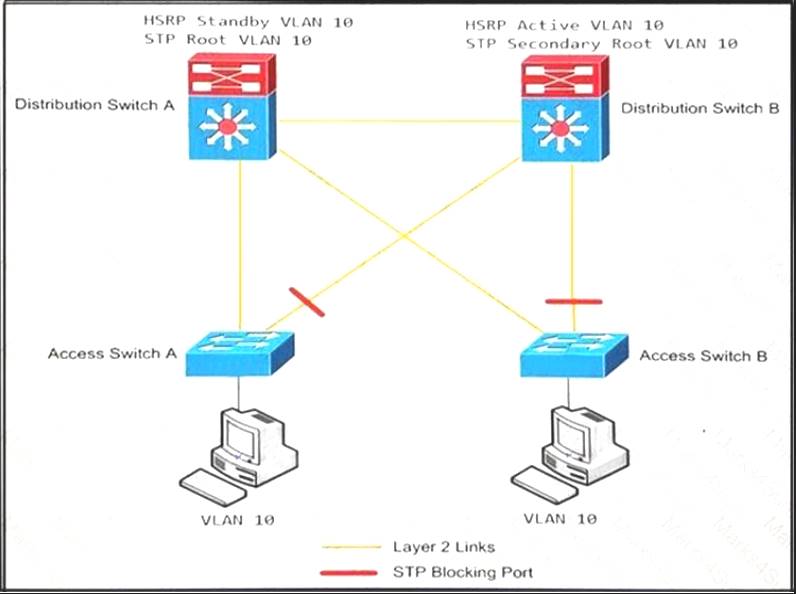

NEW QUESTION 5
Refer to the exhibit.

An engineer must optimize the traffic flow of the network. Which change provides a more efficient design between the access and the distribution layer?

• A. Add a link between access switch A and access switch B
• B. Reconfigure the distribution switch A to become the HSRP Active
• C. Change the link between distribution switch A and distribution switch B to be a routed link
• D. Create an EtherChannel link between distribution switch A and distribution switch B

Answer: B

NEW QUESTION 6
When a first hop redundancy solution is designed, which protocol ensures that load balancing occurs over multiple routers using a single virtual IP address and multiple virtual MAC addresses?

• A. GLBP
• B. IRDP
• C. VRRP
• D. HSRP

Answer: A

NEW QUESTION 7
A company is using OSPF between its HQ location and a branch office. HQ is assigned area 0 and the branch office is assigned area 1. The company purchases a second branch office, but due to circuit delays to HQ, it decides to connect the new branch office to the creating branch office as a temporary measure. The new branch office is assigned area 2. Which OSPF configuration enables all three locations to exchange routes?

• A. The existing branch office must be configured as a stub area
• B. A virtual link must be configured between the new branch office and HQ
• C. A sham link must be configured between the new branch office and HQ
• D. The new branch office must be configured as a stub area

Answer: B

NEW QUESTION 8
An engineer is looking for a standards-driven YANG model to manage a multivendor network environment. Which model must the engineer choose?

• A. Native
• B. OpenConfig
• C. IETF
• D. IEEE NETCONF

Answer: C

NEW QUESTION 9
Which nonproprietary mechanism can be used to automate rendezvous point distribution in a large PIM
domain?

• A. Embedded RP
• B. BSR
• C. Auto-RP
• D. Static RP

Answer: B

NEW QUESTION 10
Which solution allows overlay VNs to communicate with each other in an SD-WAN Architecture?

• A. External fusion routers can be used to map VNs to VRFs and selectively route traffic between VRFs.
• B. GRE tunneling can be configured between fabric edges to connect one VN to another.
• C. SGTs can be used to permit traffic from one VN to another.
• D. Route leaking can be used on the fabric border nodes to inject routes from one VN to another.

Answer: B

NEW QUESTION 11
An infrastructure team is concerned about the shared memory utilization of a device, and for this reason, they need to monitor the device state. Which solution limits impact on the device and provides the required data?

• A. IPFIX
• B. static telemetry
• C. on-change subscription
• D. periodic subscription

Answer: A

NEW QUESTION 12
A network engineer must connect two sites across a public network using a secure tunneling technology that supports multicast traffic. Which technology must be chosen?

• A. IPsec
• B. GRE
• C. PPTP
• D. GRE over IPsec

Answer: D

NEW QUESTION 13
An engineer is designing an enterprise campus network. The LAN infrastructure consists of switches from multiple vendors, and Spanning Tree must be used as a Layer 2 loop prevention mechanism. All configured VLANs must be grouped in two SIP instances. Which standards-based Spanning Tree technology supports this design solution?

• A. MSTP
• B. RSTP
• C. Rapid PVST
• D. STP

Answer: A

NEW QUESTION 14
Which function are fabric intermediate nodes responsible for in an SD-Access Architecture?

• A. mapping EIDs to RLOCs
• B. encapsulating user traffic in a VXLAN header including the SGT
• C. registering new endpoints in the HTDB
• D. transporting IP packets between edge nodes and border nodes

Answer: D

NEW QUESTION 15
An engineer is working for a large cable TV provider that requires multiple sources streaming video on different channels using multicast with no rendezvous point. Which multicast protocol meets these requirements?

• A. PIM-SM
• B. PIM-SSM
• C. any-source multicast
• D. BIDIR-PIM

Answer: D

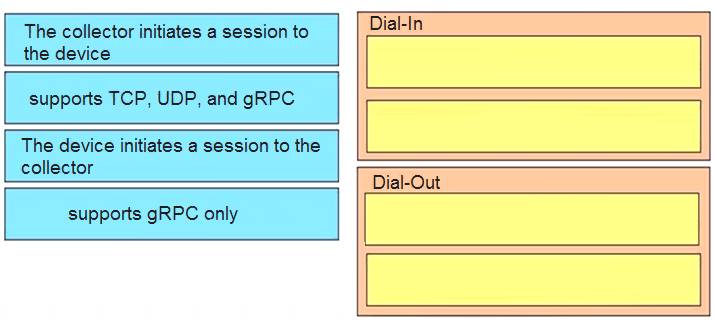

NEW QUESTION 16
Drag and drop the characteristics from the left onto the correct telemetry mode on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
In a dial-in mode, the destination initiates a session to the router and subscribes to data to be streamed. Dialin mode is supported over gRPC in only 64-bit platforms
In a dial-out mode, the router initiates a session to the destinations based on the subscription. All 64-bit IOS XR platforms (except for NCS 6000 series routers) support gRPC and TCP protocols. All 32-bit IOS XR platforms support only TCP.

NEW QUESTION 17
Which two steps can be taken to improve convergence in an OSPF network? (Choose two.)

• A. Use Bidirectional Forwarding Detection
• B. Merge all the areas into one backbone area
• C. Tune OSPF parameters
• D. Make all non-backbone areas stub areas
• E. Span the same IP network across multiple areas.

Answer: CD

NEW QUESTION 18
A customer with an IPv4 only network topology wants to enable IPv6 connectivity while preserving the IPv4 topology services. The customer plans to migrate IPv4 services to the IPv6 topology, then decommission the IPv4 topology. Which topology supports these requirements?

• A. dual stack
• B. 6VPE
• C. 6to4
• D. NAT64

Answer: A

NEW QUESTION 19
Which feature is required for graceful restart to recover from a processor failure?

• A. Cisco Express Forwarding
• B. Virtual Switch System
• C. Stateful Switchover
• D. Bidirectional Forwarding Detection

Answer: A

NEW QUESTION 20
A branch office has a primary L3VPN MPLS connection back to the main office and an IPSEC VPN tunnel that serves as backup. Which design ensures that data is sent over the backup connection only if the primary MPLS circuit is down?

• A. Use EIGRP to establish a neighbor relationship with the main office via L3VPN MPLS and the IPSECVPN tunnel.
• B. Use BGP with the multipath feature enabled to force traffic via the primary path when available.
• C. Use static routes tied to an IP SLA to prefer the primary path while a floating static route points to the backup connection.
• D. Use OSPF with a passive-interface command on the backup connection.

Answer: C

NEW QUESTION 21
What is one function of the vSmart controller in an SD-WAN deployment?

• A. orchestrates vEdge and cEdge connectivity
• B. responsible for the centralized control plane of the SD-WAN network
• C. provides centralized network management and a GUI to monitor and operate the SD-WAN overlay
• D. provides a data-plane at branch offices to pass traffic through the SD-WAN network

Answer: B

NEW QUESTION 22
Which two BGP features will result in successful route exchanges between eBGP neighbors sharing the same AS number? (Choose two.)

• A. advertise-best-external
• B. bestpath as-path ignore
• C. client-to-client reflection
• D. as-override
• E. allow-as-in

Answer: DE

NEW QUESTION 23
An engineer is working with NETCONF and Cisco NX-OS based devices. The engineer needs a YANG model that supports a specific feature relevant only to Cisco NX-OS. Which model must the engineer choose?

• A. Native
• B. IEEE
• C. OpenConfig
• D. IETF

Answer: D

NEW QUESTION 24
When IPsec VPNs are designed, what is a unique requirement if support for IP Multicast is required?

• A. encapsulation of traffic with GRE or VTI
• B. IPsec forwarding using transport mode
• C. additional bandwidth for headend
• D. IPsec forwarding using tunnel mode

Answer: A

NEW QUESTION 25
When vEdge router redundancy is designed, which FHRP is supported?

• A. HSRP
• B. OMP
• C. GLBP
• D. VRRP

Answer: D
