NEW QUESTION 1
A rapidly expanding company has tasked their network engineer with wirelessly connecting a new cubicle area with Cisco workgroup bridges until the wired network is complete. Each of 42 new users has a computer and VoIP phone. How many APs for workgroup bridging must be ordered to keep cost at a minimum while connecting all devices?

• A. 4
• B. 5
• C. 6
• D. 7

Answer: A

NEW QUESTION 2

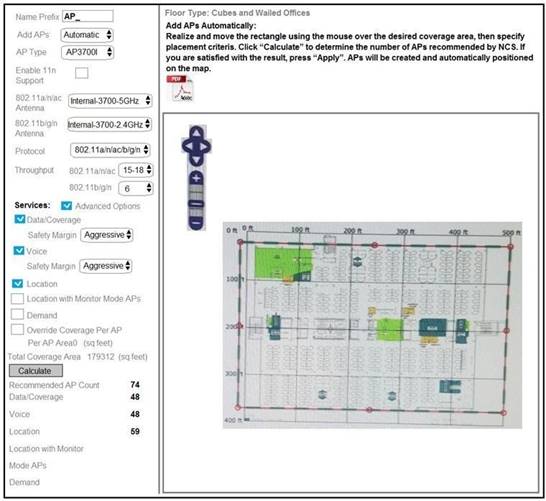

Refer to the exhibit. Which two statements about Cisco Prime Infrastructure are true? (Choose two.)

• A. It presents the recommended number of APs for the selected coverage area based on the selections made.
• B. Planning mode requires a special license in Cisco Prime Infrastructure.
• C. It shows the map editor feature in Cisco Prime Infrastructure.
• D. Controllers must be synchronized with Cisco Prime Infrastructure for planning mode to work.
• E. It shows the planning mode feature in Cisco Prime Infrastructure.

Answer: DE

NEW QUESTION 3
Which statement about creating a mobility group is true, excluding mobility anchors?

• A. Each WLC must use the same mobility name and be defined as a peer in each other’s static mobility members list.
• B. If WLCs with HA SSO are deployed, each WLC in the WLC HA pair considered separately as a mobility peer.
• C. The WLCs do not have to be of the same model or type to be a member of a mobility group, however each member should be running different software versions.
• D. A mobility groups does not require all WLCs in the group to use the same virtual IP address.

Answer: B

NEW QUESTION 4
A customer is running a guest WLAN with a foreign/export-anchor setup. There is one anchor WLC in the US and two in Europe. Anchor WLC priorities are used to prefer local anchors. During a routine network audit, it is discovered that a large number of guest client sessions in the US are anchored to the WLCs in Europe. Which reason explains this behavior?

• A. The foreign WLC failed and recovered.
• B. The US anchor WLC failed and recovered.
• C. The US anchor WLC is anchored to itself with a priority value of zero.
• D. The anchor WLC is in the same mobility group.

Answer: B

NEW QUESTION 5
A wireless network consultant must assess an existing wireless LAN controller. Which section must the consultant check before replacing the old APs with APs that are IEEE 802.11ac-capable?

• A. number of AP licenses
• B. controller PSU
• C. throughput capacity
• D. software version

Answer: A

NEW QUESTION 6

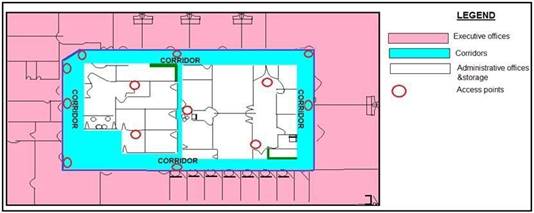

Refer to the exhibit. What is the main reason why the Wi-Fi design engineer took a different approach than installing the APs in the offices, even though that installation provides better coverage?

• A. aesthetics
• B. transmit power considerations
• C. antenna gain
• D. power supply considerations

Answer: B

NEW QUESTION 7
A technician connects a Cisco Aironet 3700 Series access point to a switch and realizes that the AP is coming up with 3x3 MIMO. Which reason explains this behavior?

• A. A redundant power supply is unavailable on the switch.
• B. The switch is 802.3af capable.
• C. The AP is getting power from a power injector.
• D. The switch is PoE+ capable.

Answer: D

NEW QUESTION 8
What causes the most signal attenuation, based on the wireless design tools?

• A. cinder block wall
• B. metal door
• C. glass wall
• D. office window

Answer: B

NEW QUESTION 9
A network engineer is configuring high availability on an access point. What is the maximum number of controllers that can be configured?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: B

NEW QUESTION 10
A network engineer is working on a design for a wireless network that must support data, voice, and location services. To support these services, which access point placement must the engineer use?

• A. corner only
• B. perimeter and corner
• C. perimeter only
• D. indoor and outdoor

Answer: C

NEW QUESTION 11
An engineer must create data link redundancy for the company’s Cisco Wireless LAN controller. The engineer has decided to configure LAG-based redundancy instead of port-based redundancy. Which three features of LAG-based redundancy influenced this decision? (Choose three.)

• A. Packets are always sent out on the same port they are received on.
• B. All interface traffic passes as long as one port is up.
• C. The same port has multiple untagged dynamic interfaces.
• D. Interface connection to two separate nonstacked switches is available.
• E. Full bandwidth of all links is available.
• F. Ports are grouped into multiple LAGs.

Answer: ABF

NEW QUESTION 12
A network engineer is preparing for an office site survey with a height of 2.5 meters. Which three components are recommended to complete the survey? (Choose three.)

• A. Use a battery pack to power APs
• B. Use a drawing of the office space to draw AP and client placements.
• C. Use DoS attack on APs while measuring the throughput.
• D. Use APs with directional antennas.
• E. Use APs with external antennas.
• F. Use APs with built-in antennas.

Answer: ABF

NEW QUESTION 13
An engineer must speed up the reauthentication delays that are being experienced on the wireless infrastructure by deploying a key-caching mechanism. Which mechanism must be configured?

• A. PEAP
• B. FT
• C. PMF
• D. GTK-randomization

Answer: B

NEW QUESTION 14
A high-density wireless network is designed. Which Cisco WLC configuration setting must be incorporated in the design to encourage clients to use the 5 GHz spectrum?

• A. Band Select
• B. RRM
• C. Cisco Centralized Key Management
• D. load balancing

Answer: A

NEW QUESTION 15
An engineer has deployed a group of APs in an auditorium and notices that the APs are showing high co-channel interference. Which profile can be used to adjust the parameters for these high-density APs?

• A. QoS profile
• B. AVC profile
• C. RF profile
• D. ISE profile

Answer: A

NEW QUESTION 16
A customer has noticed that Client Band Select is enabled and no clients are utilizing the 5 GHz band. Which three parameters must be met to ensure that wireless clients use the 5 GHz band? (Choose three.)

• A. Ensure that channel bonding is enabled on the WLAN.
• B. Ensure that the co-channel interference has not exceeded -85 dBm.
• C. Ensure tha the UNII-2 extended channels are enabled on the 802.11a radios.
• D. Ensure that the client is receiving RSSI above the minimum band select RSSI threshold.
• E. Ensure that the client is dual-band capable.
• F. Ensure that the WLAN has 802.11a enabled.

Answer: CDE

NEW QUESTION 17
Where must the APs be mounted when used in a high-density wireless network to provide 6 dB to 20 dB of attenuation to a cell?

• A. in the aisle
• B. under the seat
• C. above the stage
• D. under the stage

Answer: B

NEW QUESTION 18
Which CLI command does an engineer use to validate that the redundancy peer of a Stateful Switchover pair of controllers is up and connected?

• A. rping
• B. ping
• C. eping
• D. mping

Answer: B

NEW QUESTION 19
As part of a wireless site survey in a hospital, an engineer needs to identify potential Layer 1 interferers. In which two areas is the engineer most likely to find sources of 2.4 GHz and 5 GHz RF noise? (Choose two.)

• A. magnetic resonance imaging
• B. kitchen
• C. Gamma Knife radiation treatment
• D. X-ray radiography
• E. patient room

Answer: BE

NEW QUESTION 20

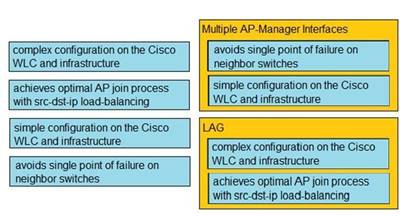

DRAG DROP
Drag and drop the characteristics from the left onto the correct functionalities on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 21
A company wants to replace its existing PBX system with a new VoIP System that will include wireless IP phones. The CIO has concerns about whether the company’s existing wireless network can support the new system. Which tool in Cisco Prime can help ensure that the current network will support the new phone system?

• A. Location Readiness
• B. Site Calibration
• C. Map Editor
• D. Voice Readiness

Answer: D

NEW QUESTION 22
Multiple WLCs are implemented in a high-availability configuration in a mobility group. APs are deployed with only a primary controller assigned. By default, which mobility group member controller do the orphaned APs join in the event of a failed controller?

• A. controller with the most available AP free license capacity
• B. controller with the lowest percent of associated APs per license capacity
• C. controller with the least CPU utilization over the last reporting period
• D. controller with the least number of associated APs

Answer: D

NEW QUESTION 23
Which non-Wi-Fi interferer can be identified by Metageek Chanalyzer?

• A. PDAs
• B. jammers
• C. smartphones
• D. printers

Answer: B

NEW QUESTION 24
An engineer has configured guest anchoring for a newly created SSD however, the mobility tunnels are not up, and EPING is failing from the foreign WLC to the anchor WLC. Which traffic flow must be allowed at the firewall to enable the communication?

• A. UDP port 16666
• B. IP protocol 97
• C. UDP port 97
• D. TCP port 97

Answer: A
