NEW QUESTION 1
A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?

• A. 813510[012345]
• B. 813510[12345]
• C. 813510[^0-5]
• D. 81XXXXX

Answer: A

NEW QUESTION 2
Which two extended capabilities must be configured on dial peers for fast start-to-early media scenarios (H.323 to SIP interworking)? (Choose two.)

• A. DTMF
• B. BFCP
• C. VIDEO
• D. FAX
• E. AUDIO

Answer: AB

NEW QUESTION 3
Which two configuration parameters are prerequisites to set Native Call Queuing on Cisco Unified Communications Manager? (Choose two.)

• A. Cisco IP Voice Media Streaming Service must be activated on at least one node in the cluster.
• B. A unicast music on hold audio source must be configured.
• C. Cisco RIS data collector service must be running on the same server as the Cisco CallManager service.
• D. The maximum number of callers allowed in queue must be 10.
• E. The phone button template must have the Queue Status Softkey configured.

Answer: AC

NEW QUESTION 4

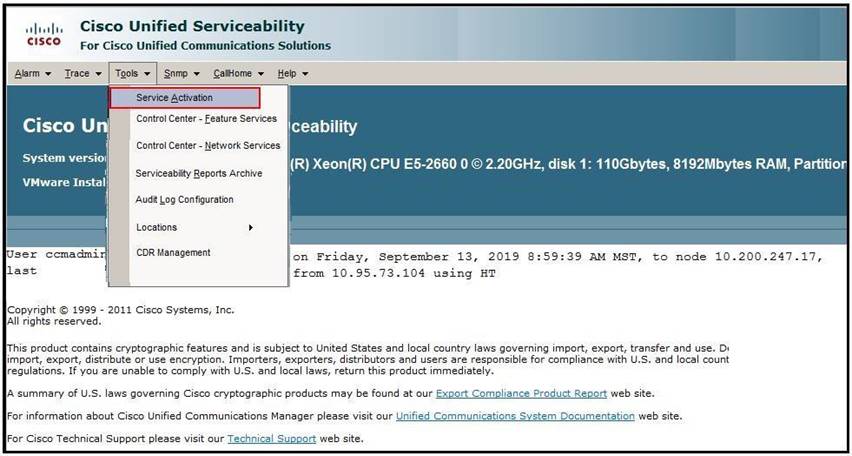

Refer to the exhibit. An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu. Which two steps must be performed to resolve this issue? (Choose two.)

• A. Restart the subscriber
• B. Activate the Cisco Extended Functions service.
• C. Activate the Cisco CallManager service.
• D. Activate the Cisco Dialed Number Analyzer service.
• E. Activate the Cisco Dialed Number Analyzer Server service.

Answer: DE

NEW QUESTION 5
Where is the dtmf-relay command configured on Cisco Unified Border Element?

• A. in the voice-class VoIP configuration
• B. in the VoIP dial peer
• C. in global SIP configuration
• D. in the VoIP or POTS dial peers

Answer: B

NEW QUESTION 6
A user reports that when they attempt to log out from the Cisco Extension Mobility service by pressing the Services button, they cannot log out. What is the most likely cause of this issue?

• A. The Cisco Extension Mobility service has not been configured on the phone.
• B. There might be a significant delay between the button being pressed and the Cisco Extension Mobility service recognizing i
• C. It would be best to check network latency.
• D. The user device profile has not been assigned to the user.
• E. The user device profile is not subscribed to the Cisco Extension Mobility service.

Answer: D

NEW QUESTION 7

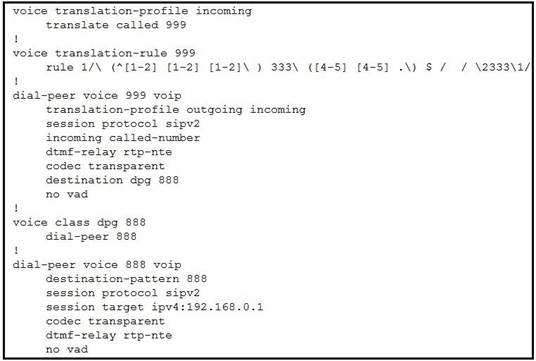

Refer to the exhibit. Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number “222333444” and Cisco Unified Communications Manager is expecting the called number to be delivered as “444333222”. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?

• A. Change the destination-pattern on the outgoing dial peer to match “444333222”.
• B. Set up translation-profile on the incoming dial peer to match incoming traffic.
• C. Create specific matching for “222333444” on the incoming dial peer.
• D. Fix the voice translation-rule to match specifically number “222333444” and change it to “444333222”.

Answer: B

NEW QUESTION 8

Refer to the exhibit. Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit. Which rule modified DNIS in the format that the provider is expecting?

• A. rule 1 /^/+([^1].*)/ /0111/
• B. rule 1/^+1([2-9]..[2-9]……$)/ /1/
• C. rule 1 /^([2-9]..[2-9]……$)/ /1/
• D. rule 1 /^+1([2-9]..[2-9]……$)/ //

Answer: B

NEW QUESTION 9
Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?

• A. Enable the Detailed Call Analysis option under Enterprise Parameters for Unified CM.
• B. Set up the Digit Analysis Complexity in Service Parameters for Cisco Unified CM to TranslationAndAlternatePatternAnalysis.
• C. Check the Translation Patterns Analysis check box in Micro Traces on the Cisco Unified CM Serviceability page.
• D. By default, the Translation Patterns operations are printed in SDL traces, so no additional configuration is necessary.

Answer: A

NEW QUESTION 10
Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?

• A. Cisco Extended Functions, Cisco Extension Mobility, and Cisco AXL Web Service
• B. Cisco CallManager, Cisco TFTP, and Cisco CallManager SNMP Service
• C. Cisco CallManager, Cisco TFTP, and Cisco Extension Mobility
• D. Cisco TAPS Service, Cisco TFTP, and Cisco Extension Mobility

Answer: C

NEW QUESTION 11
In Cisco Unified Communications Manager, which tool do you use to check SIP traces?

• A. MTP
• B. CCSIP
• C. RTMT
• D. OS Administration Page

Answer: C

NEW QUESTION 12

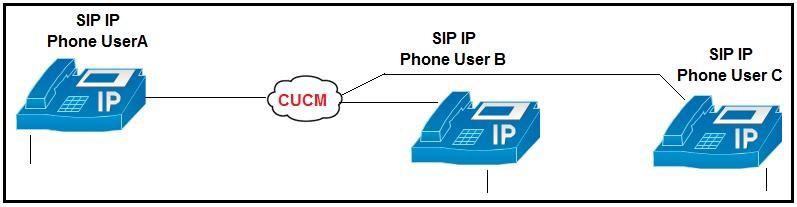

Refer to the exhibit. In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. Which two scenarios are correct? (Choose two.)

• A. Phone_A sends a SIP-REFER message to the Cisco Unified Communications Manager with Phone_C information in the Refer-To section.
• B. Phone_B sends a SIP-REFER message to the Cisco Unified CM with Phone_C information in the Refer-To section.
• C. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_B User Hold MOH Audio Source settings.
• D. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the music on hold and the MOH audio is chosen from Phone_A Network Hold MOH Audio Source settings.
• E. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_A User Hold MOH Audio Source settings.

Answer: AC

NEW QUESTION 13

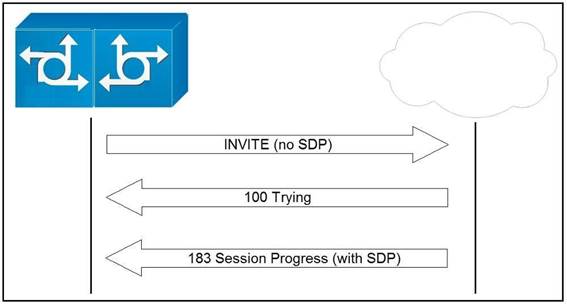

Refer to the exhibit. An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer’s carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)

• A. Enanle PRACK.
• B. Enable Early Offer on the Cisco Unified Border Element.
• C. Enable the supplementary-service media-renegotiate command.
• D. Enable Media Flow Around
• E. Enable Mid-Call Signaling Consumption.

Answer: AB

NEW QUESTION 14
Which IOS command creates a SIP- enabled dial peer?

• A. voice dial-peer 20 sip
• B. dial-peer voice 20 voip
• C. dial-peer voice 20 pots
• D. dial peer voice 20 sip

Answer: B

NEW QUESTION 15
What is the relationship between partition, time schedule, and time period in Time-of-Day routing in Cisco Unified Communications Manager?

• A. A partition can have multiple time schedules assigne
• B. A time schedule contains one or more time periods.
• C. A partition can have one time schedule assigne
• D. A time schedule contains one or more time periods.
• E. A partition can have multiple time schedules assigne
• F. A time schedule contains only one time period.
• G. A partition can have one time schedule assigne
• H. A time schedule contains only one time period.

Answer: A

NEW QUESTION 16
How does an engineer globalize routing for ingress calls coming from the PSTN to internal DNs?

• A. At the PSTN gateway, put the calling number in PSTN format and the called number in DN format.
• B. At Cisco Unified CM, put the calling number in E.164 format and the called number in PSTN format.
• C. At the PSTN gateway, put the calling number in E.164 format and the called number in localized (DN) format.
• D. At Cisco Unified Communications Manager, put the calling number in E.164 format and the called number in E.164 format.

Answer: B

NEW QUESTION 17
When the services key is pressed Cisco Extension Mobility does not show up. What is the cause of the issue?

• A. The URL configured for Cisco Extension Mobility is not correct.
• B. Cisco Extension Mobility Service is not running.
• C. The phone is not subscribed to Cisco Extension Mobility Service.
• D. Cisco Extension Mobility is not enabled in the Phone Configuration Window (Device > Phone)

Answer: C

NEW QUESTION 18
Which action is correct with respect to toll fraud prevention configuration in the Cisco Unified Communications Manager Express?

• A. Configure Direct Inward Dial for Incoming ISDN Calls with overlap dialing.
• B. Configure IP Address Trusted Authentication for Incoming VoIP Calls.
• C. Configure the command no ip address trusted authenticate under “voice service voip”.
• D. Enable Secondary Dial tone on Analog and Digital FXO Ports.

Answer: B

NEW QUESTION 19
Why would RTP traffic that is sent from the originating endpoint fail to be received on the far endpoint?

• A. The far end connection data (c=) in the SDP was overwritten by deep packet inspection in the call signaling path.
• B. Cisco Unified Communications Manager invoked media termination point resources.
• C. The RTP traffic is arriving beyond the jitter buffer on the receiving end.
• D. A firewall in the media path is blocking TCP ports 16384-32768.

Answer: D

NEW QUESTION 20
Which two types of authentication are supported for the configuration of Intercluster Lookup Service? (Choose two.)

• A. TokenID
• B. username and secret key
• C. TLS certificates
• D. passwords
• E. FQDN of the servers defined in DNS

Answer: CD

NEW QUESTION 21
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?

• A. Analysis Manager > Inventory > Trace File Repositories
• B. System > Tools > Trace and Log Central
• C. Voice/Video > Session Trace Log View > Real Time Data
• D. Voice/Video > Session Trace Log View > Open From Local Disk

Answer: C

NEW QUESTION 22
An engineer must route all SIP calls in the form of <user>@example.com to the SIP trunk gateway corporate local. Which two SIP route patterns can be used to accomplish this task? (Choose two.)

• A. example.com@gateway.corporate.local
• B. *@example.com
• C. gateway.corporate.local
• D. example.com
• E. *.*

Answer: BE
