NEW QUESTION 1

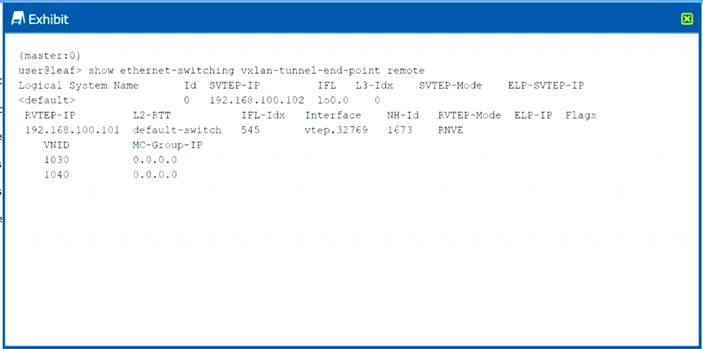

Exhibit.

Referring to the exhibit, which two statements are correct? (Choose two.)

• A. The local leaf is using the 192.168.100.102 IP address as the local anchor point of the VTEP tunnel.
• B. The remote leaf is using the 192.168.100.102 IP address as the local anchor point of the VTEP tunnel.
• C. The remote leaf is using the 192.168.100.101 IP address as the local anchor point of the VTEP tunnel.
• D. The local leaf is using the 192.168.100.101 IP address as the local anchor point of the VTEP tunnel.

Answer: AC

NEW QUESTION 2
What are two types of EVPN routes? (Choose two.)

• A. ES-lmport route target
• B. Ethernet segment
• C. MAC mobility
• D. MAC advertisement

Answer: BD

NEW QUESTION 3

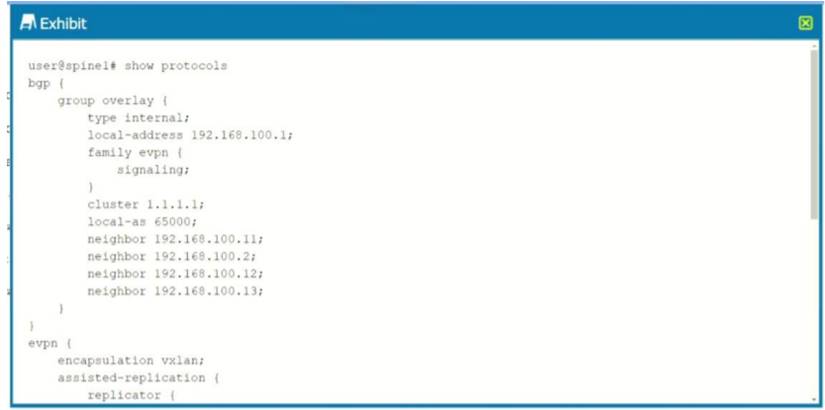

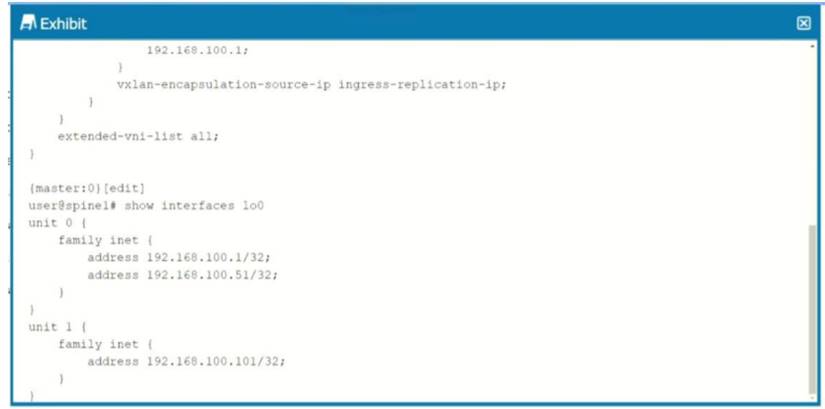

Exhibit.
The configuration shown in the exhibit is intended to set up assisted replication but will not commit.


Which action will create a valid configuration in this situation?

• A. Change the 10.0 address to 192.168.100.1 primary.
• B. Change the replicator inet address to 192.168.100.101.
• C. Delete replicator inet 192.168.100.1.
• D. Change the replicator inet address to 192.168.100. 51.

Answer: B

NEW QUESTION 4
You are asked to implement VXLAN in your data center network. You must choose between implementing EVPN signaling and multicast signaling. Which two statements are correct in this scenario? (Choose two.)

• A. EVPN signaling reduces ARP flooding and multicast signaling does not.
• B. EVPN signaling propagates MAC addresses across the network and multicast signaling does not.
• C. EVPN signaling uses a standards-based protocol and multicast signaling does not.
• D. EVPN signaling enables distributed Layer 3 gateways and multicast signaling does not.

Answer: BC

NEW QUESTION 5
Which two statements about ZTP are true? (Choose two.)

• A. The image storage service and the DHCP server can be running on different server hosts.
• B. When a switch is boote
• C. DHCP requests are sent only through the management Ethernet interface.
• D. The image storage service must be running on the same server host where the DHCP service is running.
• E. When a switch is booted, DHCP requests are sent through the management interface as well as attached revenue ports.

Answer: AB

NEW QUESTION 6

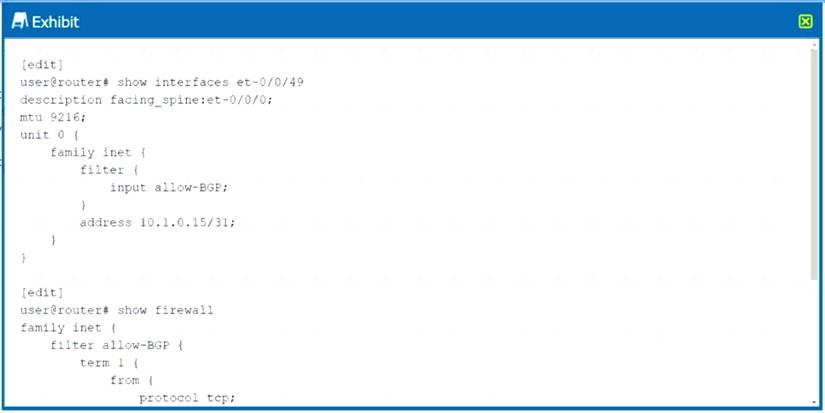

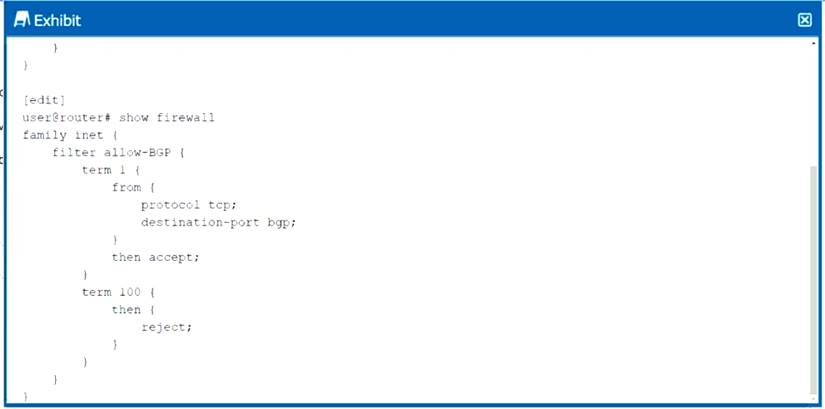

Exhibit.


You administer an EVPN-VXLAN fabric. You notice that there is no VXLAN traffic forwarding through the network.
Referring to the exhibit, which modification will solve the problem?

• A. set firewall family inet filter allow-BGP term 1 from protocol udp set firewall family inet filter allow-BGP term 1 from destination-port 4789
• B. set interfaces et-0/0/49 unit 0 family vxlan
• C. set interfaces et-0/0/49 unit 0 family vpls
• D. set firewall family inet filter allow-BGP term 1 from protocol tcp set firewall family inet filter allow-BGP term 1 from destination-port 4789

Answer: A

NEW QUESTION 7
You are an architect for an enterprise organization that currently operates three data centers with plans to expand to five data centers in the next year. You already notice large amounts of BUM flooding and must control this issue before implementing the next two data centers.
Which feature would address this issue?

• A. type-5 routes
• B. type-6 routes
• C. mesh groups
• D. VXLAN BUM traffic filter

Answer: B

NEW QUESTION 8
You are asked to deploy an Ethernet bridging design in a data center with the following criteria:
--routing must occur on the leaf devices.
--VTEPs must terminate on the leaf devices.
--facilitate inter-VLAN communication, -- lower latency with East-West traffic. Which architecture should you use in this scenario?

• A. collapsed spine architecture
• B. edge-routed bridging architecture
• C. bridge overlay architecture
• D. centrally-routed bridging architecture

Answer: B

NEW QUESTION 9
Which two statements are correct about VXLAN domains? (Choose two.)

• A. With Layer 2 traffic, the VLAN ID is discarded before the packet is sent.
• B. With Layer 3 traffic, the VLAN ID is discarded before the packet is sent.
• C. With Layer 2 traffic, the VLAN ID is transmitted within the packet.
• D. With Layer 3 traffic, the VLAN ID is transmitted within the packet.

Answer: AB

NEW QUESTION 10
You are asked to implement a monitoring and telemetry solution for the QFX Series devices in your IP fabric that uses a push model to collect both system event data and statistical data for your QFX Series devices.
Which technology satisfies your requirements?

• A. JunosXMLAPI
• B. REST API
• C. SNMP
• D. Junos Telemetry Interface

Answer: D

NEW QUESTION 11
Which two statements are correct about VXLANs? (Choose two.)

• A. VXLANs have smaller broadcast domains than VLANs.
• B. VXLANs have a smaller logical network identifier than VLANs.
• C. VXLANs can have a theoretical maximum of 16 million unique networks.
• D. VXLANs are an overlay technology.

Answer: CD

NEW QUESTION 12

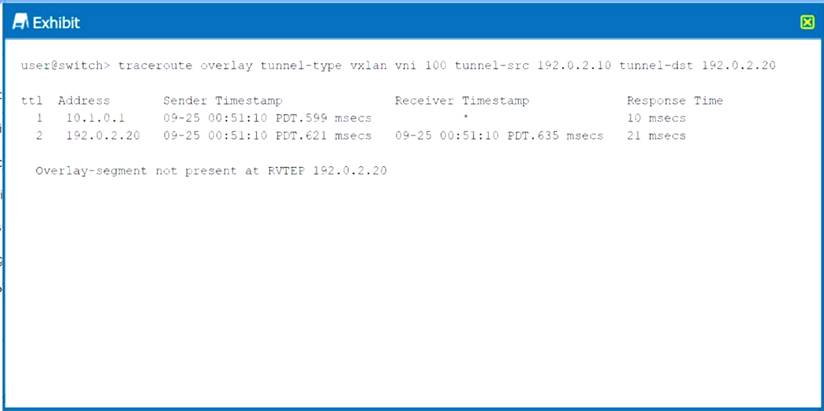

Exhibit.

You are troubleshooting a problem with traffic not reaching a remote VTEP Referring to the exhibit, what is the reason for the problem?

• A. A conflict exists with the VLAN-to-VNI mapping.
• B. The local VTEP is misconfigured with the wrong VNI.
• C. No VTEP is configured on peer 192.0.2.20.
• D. The remote VTEP does not have the correct VNI configured.

Answer: D

NEW QUESTION 13

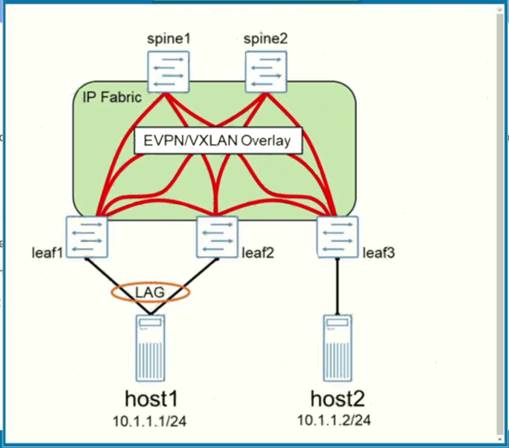

Exhibit.

An EVPN-signaled VXLAN overlay has been deployed in the network shown in the exhibit. An EVPN LAG has been configured to connect host1 to the network, and device leaf1 has been elected as the designated forwarder.

• A. In this scenario, which statement is true?
• B. The Ieaf3 device can utilize both leaf1 and Ieaf2 to forward unicast packets from host2 to host1.
• C. An ICCP control link must be configured between leaf1 and Ieaf2.
• D. The Ieaf3 device will only receive an advertisement to the LAG segment from leaf1.
• E. Broadcast packets sent from host2 will not be forwarded to Ieaf2.

Answer: C

NEW QUESTION 14

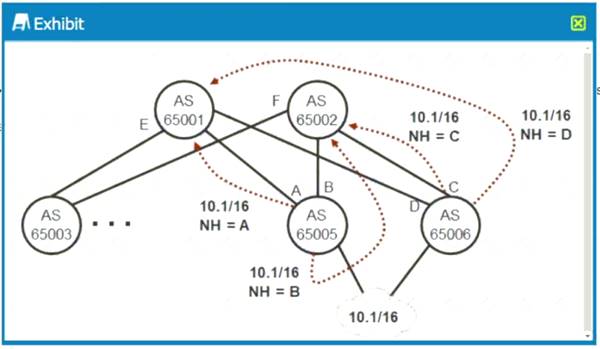

Exhibit.

You choose the EBGP design shown in the exhibit as your IP fabric design. You must ensure that both routes received by the spine nodes will be used for ECMP forwarding
Which BGP parameter would need to be added to the EBGP configuration of the spine nodes to achieve this goal?

• A. multipath
• B. multihop
• C. add-path
• D. multipath multiple-as

Answer: D

NEW QUESTION 15
Which two statements are true about VRF routing instances? (Choose two.)

• A. VRF can be used in conjunction with Layer 3 logical interfaces.
• B. Each logical Layer 3 interface can belong to only one routing instance.
• C. Each logical Layer 3 interface can belong to multiple routing instances.
• D. VRF does not enable multitenancy.

Answer: AB

NEW QUESTION 16
You want to improve network convergence within a data center during link failures. In this scenario, which EVPN-VXLAN feature will accomplish this task?

• A. storm control
• B. Ethernet segment auto discovery
• C. MAC filtering
• D. MAC mass withdrawal

Answer: D

NEW QUESTION 17

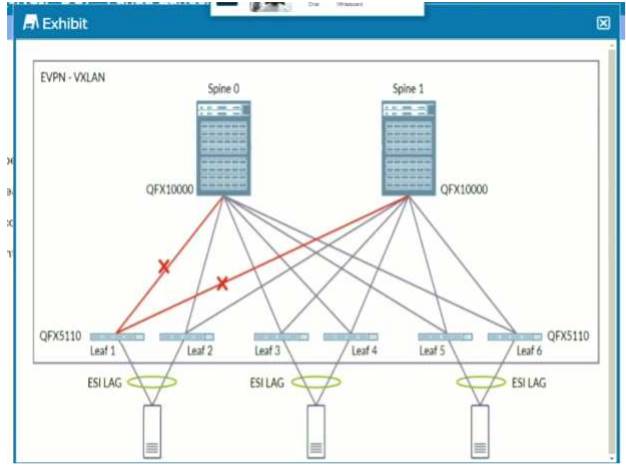

Exhibit.

Referring to the exhibit, what effect does EVPN core isolation have?

• A. Leaf 1 will send a pause frame to each connected host.
• B. Leaf 1 will place the interfaces to connected hosts into LACP passive mode.
• C. Leaf 1 will take down all revenue interfaces.
• D. Spine 1 will block all traffic.

Answer: C
