NEW QUESTION 1

Which two features are implemented on the Packet Forwarding Engine? (Choose Two)

• A. Chassis Management
• B. Firewall Filters
• C. Class of Service
• D. Routing protocol update

Answer: BC

NEW QUESTION 2

Which three connection protocols allow you to gather operational information from the Junos device? (Choose three.)

• A. NETCONF
• B. Telnet
• C. XML
• D. JSON
• E. SSH

Answer: ABE

NEW QUESTION 3

You have enabled trace options to log error messages. You want to have the messages displayed to your terminal session automatically as they occur.
Which command should you use in this scenario?

• A. request message terminal
• B. file show
• C. file list
• D. monitor start

Answer: D

NEW QUESTION 4

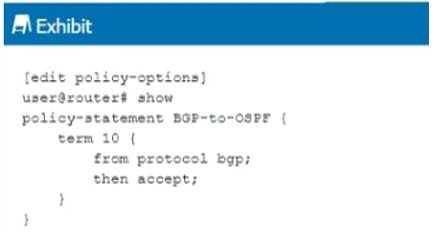

Click the Exhibit button.

You must apply the policy shown in the exhibit to readvertise BGP routes to OSPF neighbors Which action will accomplish this task?

• A. You must apply the policy as an import policy within the BGP configuration
• B. You must apply the policy as an import policy within the OSPF configuration.
• C. You must apply the policy as an export policy within the BGP configuration
• D. You must apply the policy as an export policy within the OSPF configuration

Answer: D

NEW QUESTION 5

Which two statements describe the default behavior for OSPF? (Choose two)

• A. OSPF imports all routes into the inet4.0 routing table.
• B. OSPF exports all static routes into the OSPF database.
• C. OSPF imports all routes into the inet.O routing table.
• D. OSPF does not export static routes into the OSPF database.

Answer: CD

NEW QUESTION 6

Referring to the exhibit, what information is provided about the route to 192.168.47.0/24? (Choose two.)

• A. There are two active routes to 192.168.47.0/24.
• B. There is a single active route to 192.168.47.0/24.
• C. There are two next hops available to 192.168.47.0/24.
• D. There is a single next hop available to 192.168.47.0/24.

Answer: BC

NEW QUESTION 7

What happens when a route does not match any user-configured policies?

• A. The route is rejected.
• B. The route is accepted.
• C. The route is given a lower priority.
• D. The route is sent to the default policy.

Answer: D

NEW QUESTION 8

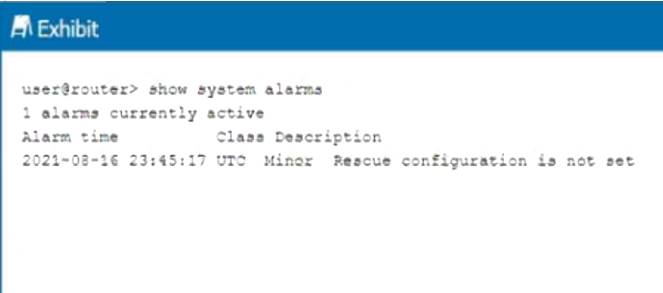

Click the Exhibit button

Which command will solve the problem shown in the exhibit?

• A. user@routert# request system configuration rescue commit
• B. user@router> request system configuration rescue save
• C. user@router# file copy current /config/rescue.conf
• D. user@router> file copy current /config/rescue.conf

Answer: B

NEW QUESTION 9

Which of the following protocols uses both TCP and UDP?

• A. FTP
• B. SMTP
• C. Telnet
• D. DNS

Answer: D

NEW QUESTION 10

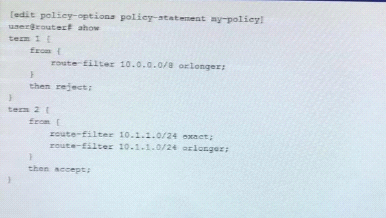

Exhibit.

You have the policy configuration shown in the exhibit applied to your BGP peering. You find that your customer routes coming from the 10.1.1.0/24 network are being rejected.
Which command should be used to correct the problem?

• A. [edit policy-options policy-statement my-policy] user@router# insert term 1 before term 2
• B. [edit policy-options policy-statement my-policy] user@router# insert term 2 before term 1
• C. [edit policy-options policy-statement my-policy] user@router# copy term 2 to term 0
• D. [edit policy-options policy-statement my-policy]

Answer: B

NEW QUESTION 11

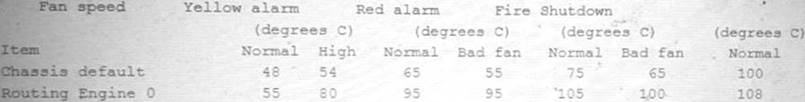

Which command displays the output shown in the exhibit?

• A. show chassis temperature-thresholds
• B. show chassis environment
• C. show chassis hardware
• D. show chassis alarms

Answer: A

NEW QUESTION 12

Click the Exhibit button.

Referring to the exhibit, which action would synchronize the local router’s clock with the NTP server?

• A. Configure the correct NTP trusted key using the net trusted-key <key-value> configuration command under the [edit system ntp] hierarchy.
• B. Issue the set date ntp operational command.
• C. Configure the NTP server using the set boot-server 172.25.11.254 configuration command under the [edit system ntp] hierarchy.
• D. Reboot the router.

Answer: B

NEW QUESTION 13

You are in configuration mode at the top of the hierarchy. How would you save your configuration
to a file on the router?

• A. save configuration <filename>
• B. save config <filename>
• C. save <filename>
• D. save run <filename>

Answer: C

NEW QUESTION 14

Referring to the exhibit.

which OSPF feature would connect Area 2 to Area 0?

• A. route summarization
• B. equal-cost multipath
• C. virtual link
• D. database synchronization

Answer: C

NEW QUESTION 15

What is the name of the volume containing the software and files used for the day-to day operation of a device using Junos with upgraded FreeBSD?

• A. /var
• B. /active
• C. /junos
• D. /oam

Answer: C

NEW QUESTION 16

Given the following configuration,
set system authentication-order [ tacplus ]
Which two statements are correct? (Choose two.)

• A. If the TACACS+ server is available and rejects the username/password provided, the user is not allowed to access the device.
• B. If the TACACS+ server is available and rejects the username/password provided, the local password database is checked.
• C. If the TACACS+ server is not available, the user is not allowed to access the device.
• D. If the TACACS+ server is not available, the local user database is checked.

Answer: CD

NEW QUESTION 17

Which default login class should you select if you want the user to edit configuration files?

• A. read-only
• B. unauthorized
• C. super-user
• D. operator

Answer: C

NEW QUESTION 18

The PFE receives which two tables from the RE? (Choose two.)

• A. Layer 5 forwarding table
• B. Layer 2 forwarding table
• C. Layer 3 forwarding table
• D. Laver 4 forwardina table

Answer: BC

NEW QUESTION 19

You are asked to configure a Junos device to perform regular configuration backups
Which feature will you configure under the [edit system) hierarchy to accomplish this task?

• A. archival
• B. backup-router
• C. syslog
• D. tracing

Answer: B
