NEW QUESTION 1

What will the request system configuration rescue save command accomplish?

• A. It will generate support information for JTAC.
• B. It will save a copy of the configuration so that you can go back to it at any time
• C. It will prevent 2 commit from happening
• D. It will restore your system to factory default settings.

Answer: B

NEW QUESTION 2

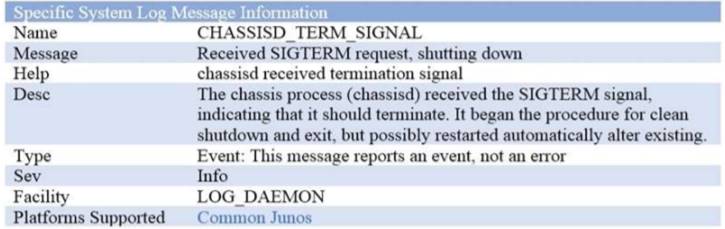

Referring to the exhibit,

which command will cause this event message?

• A. request system logout
• B. request system commit
• C. request system recover
• D. request system halt

Answer: D

NEW QUESTION 3

What is an "X" release of the Junos OS?

• A. a standard feature release
• B. a special feature release
• C. a feature velocity release
• D. a feature beta release

Answer: B

NEW QUESTION 4

You recently uploaded a new software package to your Junos and you want to ensure that the file uploaded successfully by verifying the file size. In this scenario, which command should you use?

• A. file checksum shal
• B. file compare
• C. file list detail
• D. file show encoding

Answer: C

NEW QUESTION 5

Which keystrokes are used to auto-complete user-defined variables?

• A. Spacebar
• B. Home
• C. End
• D. Tab CC

Answer: D

NEW QUESTION 6

Which keystroke combination allows users to move the cursor to the beginning of the command line without deleting text?

• A. Ctrl + u
• B. Ctrl + w
• C. Ctrl + a
• D. Ctrl + b

Answer: C

NEW QUESTION 7

Which word starts a command to display the operational status of a Junos device?

• A. put
• B. set
• C. show
• D. get

Answer: C

NEW QUESTION 8

Referring to the exhibit, which statement is true?

• A. The customer has set the version parameter to automatic.
• B. The customer has not enabled security for BFD.
• C. The customer's link will failover in nine seconds.
• D. The customer's link flappedd within the last hour.

Answer: D

NEW QUESTION 9

Which two statements describe the connection between control plane and the forwarding plane?
Choose Two

• A. No rate limiter is configured by default
• B. A rate limiter is configured by default
• C. Exception traffic is preferred over the control traffic during congestion
• D. Control traffic is preferred over the exception traffic during congestion

Answer: AD

NEW QUESTION 10

You notice that the terms in your firewall filter are not in the correct order. What would solve this problem?

• A. Use the insert command to reorder the terms within the filter.
• B. Use the count parameter to ensure that the terms are evaluated correctly.
• C. Use the reject action to change the action of the filter.
• D. Use the next term action to force an evaluation of the next term.

Answer: A

NEW QUESTION 11

Which statement describes the ulst next-hop type that appears in the output of the show route forwarding-table command?

• A. A list of unicast or multicast forwarding entries waiting to be resolved.
• B. A list of unicast destination prefixes for which packets will be silently discarded
• C. A list of unicast next hops used for a given destination for which load balancing is enabled
• D. A list of unicast or multicast destination prefixes for which packets will be silently discarded.

Answer: C

NEW QUESTION 12

A Junos device is configured with multiple routing protocols to the same destination prefix. By Default, which route will be active in the forwarding table?

• A. A static route
• B. An OSPF route
• C. An IS-IS route
• D. A BGP route

Answer: A

NEW QUESTION 13

Which TWO of the following are private IP addresses?

• A. 12.0.0.1
• B. 168.172.19.39
• C. 172.20.14.36
• D. 172.33.194.30
• E. 192.168.24.43

Answer: C

NEW QUESTION 14

How many IP addresses can be configured on a given interface?

• A. one primary and one secondary
• B. one
• C. as many as you want
• D. one primary and multiple secondary

Answer: C

NEW QUESTION 15

What are two important steps when upgrading an SRX300 Series device? (Choose two.)

• A. Verify that enough space exists to upload the software package.
• B. Clear all alarms.
• C. Reboot the device.
• D. Verify that the NETCONF protocol is enabled.

Answer: AC

NEW QUESTION 16

What is the initial prompt displayed when logging in as the root user?

• A. root@router>
• B. root@router%
• C. root@router#
• D. root@router*

Answer: B

NEW QUESTION 17

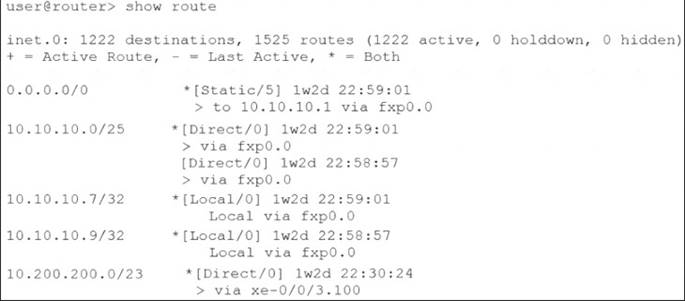

What does the number inside the square bracket represent?

• A. Metric
• B. Local preference
• C. Protocol reference number
• D. Route preference

Answer: D

Explanation:
https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/ref/command/show-route.html#show-ro Module 9 of Juniper Open Learning, Routing Fundamentals describes the [Source/Route Preference]. The metric is 'how' a protocol calculates the best path to a destination. RIP = Hops, OSPF = Cost. Metrics are unique to protocols.
user@host> show route
inet.0: 11 destinations, 12 routes (11 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both 1:65500:1:10.0.0.20/240
*[MVPN/70] 19:53:41, metric2 1
Indirect
1:65500:1:10.0.0.40/240
*[BGP/170] 19:53:29, localpref 100, from 10.0.0.30 AS path: I
> to 10.0.24.4 via lt-0/3/0.24, label-switched-path toD [BGP/170] 19:53:26, localpref 100, from 10.0.0.33 AS path: I
> to 10.0.24.4 via lt-0/3/0.24, label-switched-path toD inside square brackets -> route preference
metric and localpref are optional and after the date

NEW QUESTION 18

Which three benefits are made possible by the separation of the control plane and forwarding plane of a Junos device? (Choose three.)

• A. nonstop active routing
• B. in-service software upgrades
• C. deep packet inspection
• D. stateful firewall
• E. graceful Routing Engine switchover

Answer: ABE

NEW QUESTION 19

Which two conditions must exist in a Junos device for traffic to transit the device to a specific destination? (Choose two.)

• A. A routing table entry for that destination must exist.
• B. A firewall filter must exist to allow traffic to reach that destination.
• C. A forwarding table entry for that destination must exist.
• D. A routing policy must be in place on the device.

Answer: AC
