NEW QUESTION 1
Click the exhibit button.

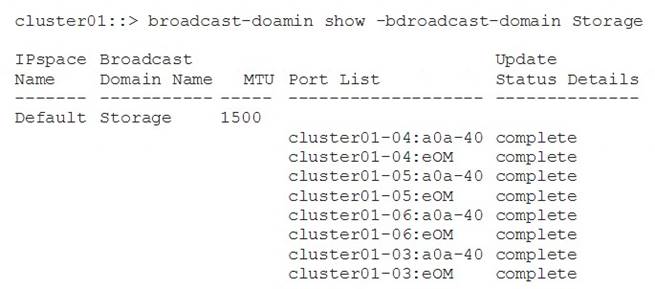

A customer notifies you that Active IQ is showing a warning that a broadcast domain in their environment has been configured with ports from multiple VLANs.
Referring to the exhibit, which two statements are correct? (Choose two.)

• A. You should move the e0M ports to a Broadcast Domain that is dedicated to only management traffic.
• B. A VLAN tag cannot be assigned to the e0M port, so the configuration is acceptable.
• C. You should configure e0M so that is tagged on VLAN 40.
• D. You should change the LIF service policy to net-intercluster to prevent the LIFs from failing over to the e0M ports.

Answer: CD

NEW QUESTION 2
Click the exhibit button.

When you log in to a node, a warning is displayed as shown in the exhibit. Which statement is correct in this scenario?

• A. The node root volume was moved to a new aggregate.
• B. The partner still hosts the CFO aggregate for the node.
• C. One or more RDB db files are damaged due to an internal software error.
• D. The node cannot communicate with the rest of the nodes in the cluster.

Answer: D

NEW QUESTION 3
In a 4-node MetroCluster cluster, both clusters are alerting that the connection to an ATTO bridge is lost.
Which three components should be verified to determine what is causing this problem? (Choose three.)

• A. the SFPs that are connecting the ATTO bridge to the switch
• B. the dark fiber cables between sites
• C. the ATTO bridge
• D. the SFPs in the storage controllers
• E. the fiber cable that is connecting the ATTO bridge to the switch

Answer: ACE

NEW QUESTION 4
A customer reports that OnCommand Performance Manager shows that the workload on node-02 in a 4-node cluster has increased to a level that is higher than the threshold. The customer wants to avoid this issue becoming a performance problem.
Which two actions would result in achieving this goal? (Choose two.)

• A. Use the volume move command to move one or more volumes to another aggregate that is owned by another node that is less utilized.
• B. Use the storage aggregate relocation command to offload an aggregate to its partner.
• C. Use the storage aggregate scrub command to verify the parity on the busy aggregates.
• D. Physically move the shelf to another node that is less utilized.

Answer: AD

NEW QUESTION 5
For restore purposes, a storage administrator on an ONTAP system created a FlexClone of a volume that contains a LUN from a specific snapshot. This LUN cannot be seen by a Windows client after a disk rescan is performed by using Disk Management.
In this scenario, which statement is correct?

• A. The cloned LUN must be brought online.
• B. The cloned LUN needs to be mapped to an initiator group.
• C. The cloned volume must be split from the source volume before the LAN can be used.
• D. The cloned LUN must be renamed to a different name than the name of the source LUN.

Answer: C

NEW QUESTION 6
What is a major difference between NFSv3 and NFSv4.x?

• A. NFSv4.x is stateful, and NFSv3 is stateless.
• B. NFSv4.x requires an auxiliary protocol for status monitoring, and NFSv3 does not.
• C. NFSv4.x is stateless, and NFSv3 is stateful.
• D. NFSv4.x requires an auxiliary protocol for mounting, and NFSv3 does not.

Answer: A

NEW QUESTION 7
Click the exhibit button.

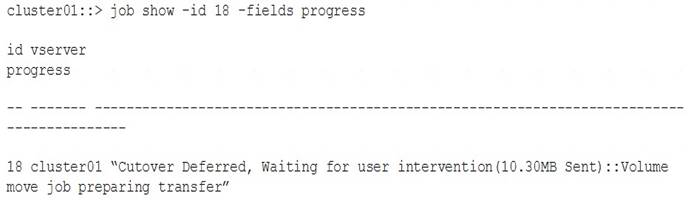

A volume move operation has been initiated to move a volume named MirrScr from one aggregate to another. The operation failed with the error that is shown in the exhibit.
In this scenario, which statement is correct?

• A. Manually trigger the cutover process in order to restart the job.
• B. The volume move cannot be completed at this time because of high use in this node.
• C. There are too many snapshots on the source volume.
• D. Cancel and restart the volume move operation.

Answer: A

NEW QUESTION 8
A field support engineer has just replaced the IOXM on NODE2 on a FAS8080 running ONTAP 9.1. After the replacement, the customer is unable to perform a giveback because the interconnect is down.
In this scenario, which statement is correct?

• A. Verify that there cross-links between the interconnects.
• B. Verify that the installed FC-VI cards are configured properly.
• C. Verify that the interconnect cables on the motherboard are connected correctly.
• D. Verify that the interconnect cables on the IOXM are connected correctly.

Answer: D

NEW QUESTION 9
Click the exhibit button.

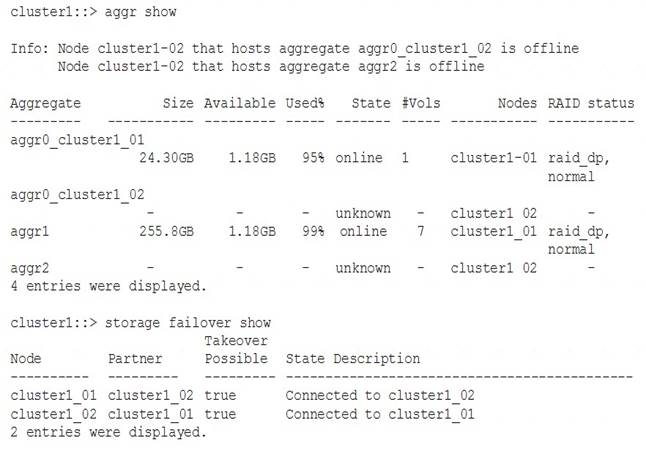

You execute a few commands and many fail, as shown in the exhibit. What could cause the error?

• A. The mgwd user space process on cluster1-02 failed.
• B. The aggregates were manually brought offline.
• C. The cluster-02 node is down.
• D. The bcomd user space process on cluster1-02 failed.

Answer: C

NEW QUESTION 10

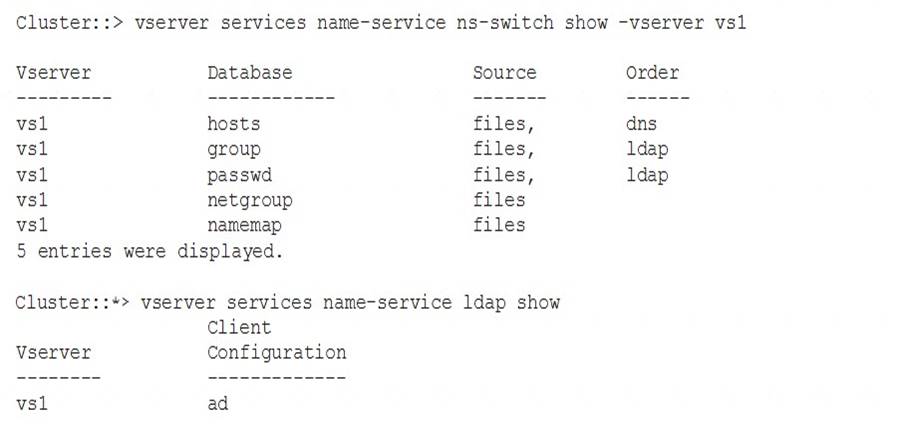

Click the exhibit button.

A customer has the ns-switch shown in the exhibit.
Which two statements are true in this scenario? (Choose two.)

• A. User names not present in the local database are looked up in LDAP.
• B. User mapping decisions are always based on the LDAP configuration.
• C. Host names are always resolved using the configured DNS server.
• D. Groups can be looked up both in the local database and in LDAP.

Answer: CD

NEW QUESTION 11
Click the exhibit button.

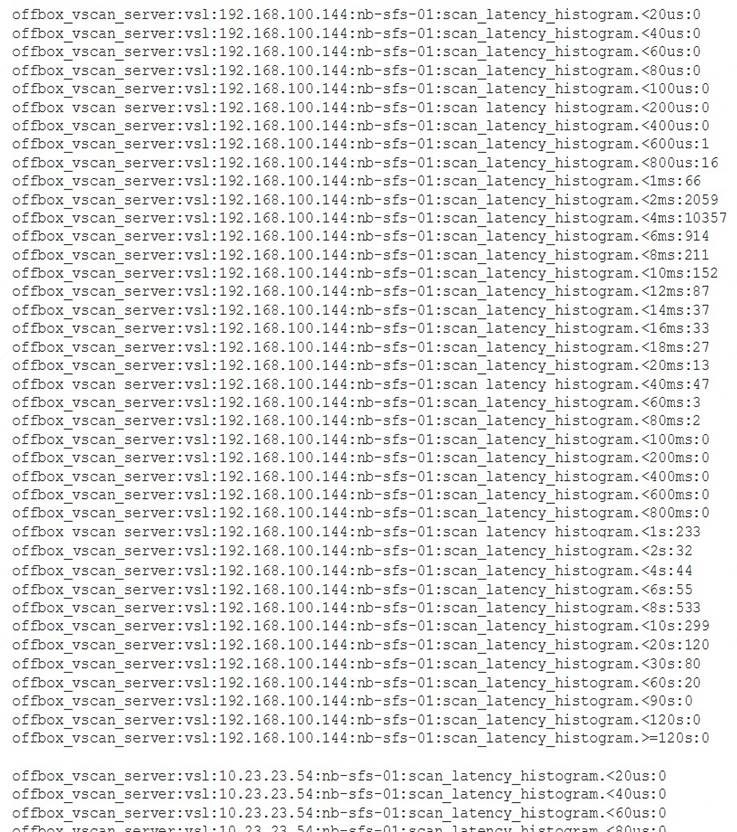

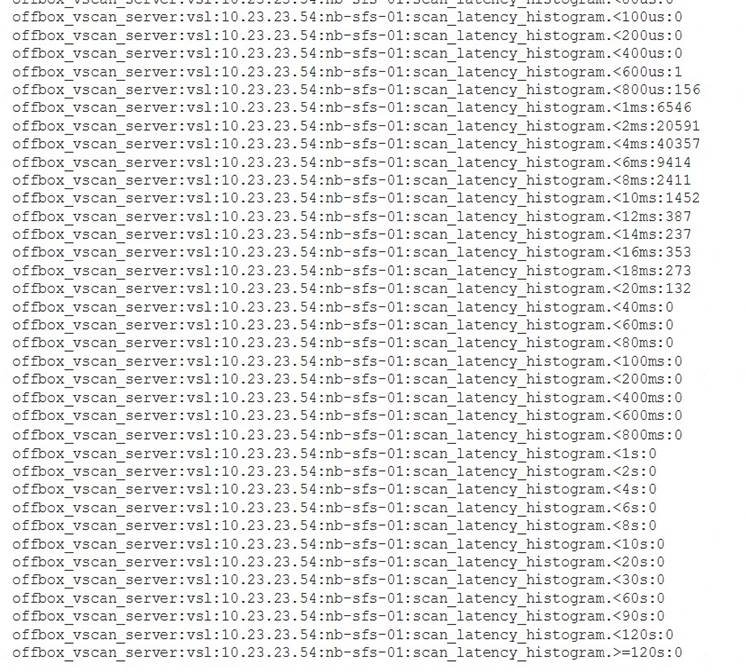

A storage administrator reports that when they enabled Vscan, they began receiving reports of CIFS users having very slow access to all their files. The storage administrator recovered from the issue by disabling Vscan on their SVM. The storage administrator was able to collect perfstat output during the time of the reported slow access, as shown in the exhibit.
In this situation, what is the problem?

• A. The problem is on the SVM, as shown in the scan_latency output.
• B. Vscan server 192.168.100.144 was slower than Vscan server 10.23.23.54 in completing Vscan requests.
• C. Vscan server 10.23.23.54 was slower than Vscan server 192.168.100.144 in completing Vscan requests.
• D. The problem was with both Vscan servers 192.168.100.144 and 10.23.23.54.

Answer: B

NEW QUESTION 12
Click the exhibit button.

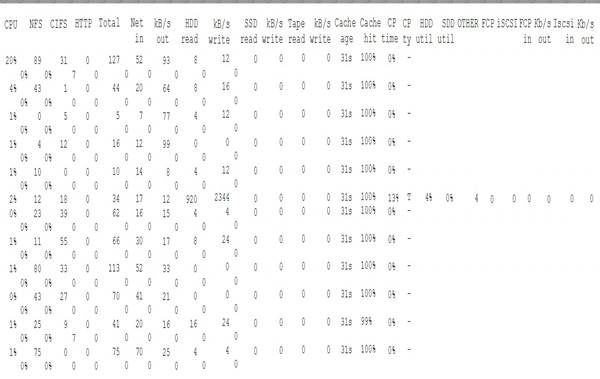

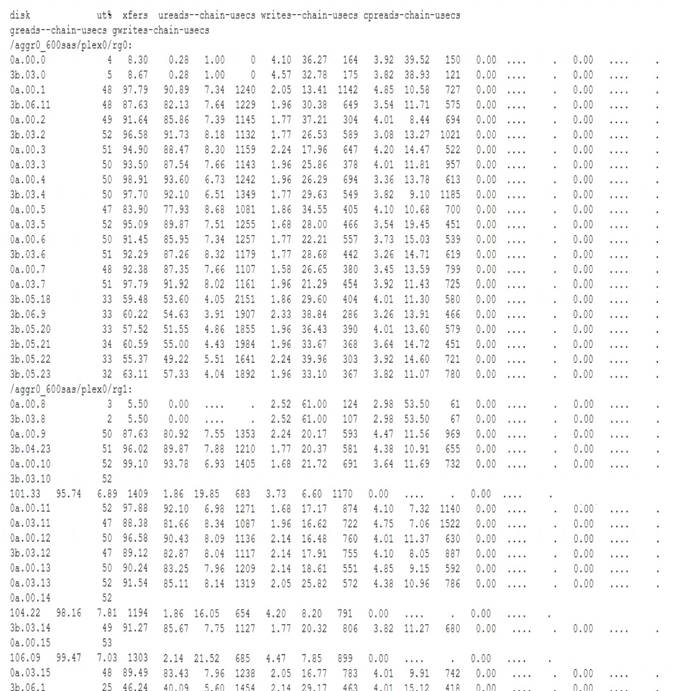

A customer reports that storage latency has recently increased substantially. No changes have been introduced, and the traffic did not change.
Referring to the output shown in the exhibit, which corrective step should be taken?

• A. Add more spindles.
• B. Throttle the client traffic.
• C. Perform the volume reallocation.
• D. Move some volumes off the affected aggregate.

Answer: B

NEW QUESTION 13
Which statement is correct about the wafliron command?

• A. The wafliron command is used to correct parity inconsistencies.
• B. The wafliron command is used to correct inconsistent WAFL metadata.
• C. The wafliron command is used to correct WAFL i2p inconsistencies.
• D. The wafliron command is used to correct inconsistent user data blocks.

Answer: B

NEW QUESTION 14
A customer calls you about a performance issue that they experienced over the past few days. They want to know if data collection and root cause analysis (RCA) is possible for this issue. This issue appears to be a one time event.
Which tool would be used to satisfy the customer’s request?

• A. perfstat
• B. perfmon
• C. OneCollect
• D. Performance Archive

Answer: C

NEW QUESTION 15
Two weeks ago, your customer experienced a data outage, which caused their MCC to switch over. When the power was restored, they found that 14 disks over three RAID groups had failed, which caused two data aggregates to lose their mirror plexes.
In this situation, before you perform a switchback, which three actions should be taken? (Choose three.)

• A. Delete the failed plexes.
• B. Initiate the aggregate healing phases.
• C. Adjust bridge configuration for the replaced disks.
• D. Mirror the unmirrored aggregates
• E. Assign all disks on the remote site to the surviving nodes.

Answer: BCD

NEW QUESTION 16
Click the exhibit button.

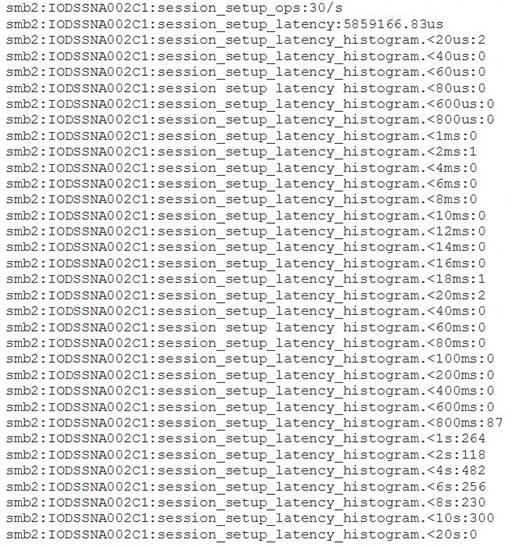

Many end users are complaining that logging in their systems takes a long time. When the login to the desktop finishes, everything is fine. The home directories are on NetApp storage. You do not see any significant disk or CPU contention on the controller, so you gather output statistics from the controller and focus on SMB.
Referring to the exhibit, which two actions would help diagnose the problem? (Choose two.)

• A. Engage your Windows team to make sure that the domain controllers are not overloaded.
• B. Engage your desktop team to collect network traces from the clients.
• C. Collect more statistics to determine whether the controller itself is causing latency.
• D. Engage your network team to make sure that there are no issues between the storage controller and the domain controller.

Answer: CD

NEW QUESTION 17
A customer called you after a failure in their Microsoft Hyper-V environment on the “SVM1” SVM. The customer wants to enable nondisruptive operations (NDO) to prevent future failures.
In this scenario, which two actions must be performed? (Choose two.)

• A. Verify that the continuously-available option is set on the CIFS share.
• B. Verify that SMB2 is enabled.
• C. Verify that SMB3 is enabled.
• D. Verify that the branchcache option is set on the CIFS share.

Answer: AB
