NEW QUESTION 1
Which two standards enable Ethernet to support FCoE? (Choose two.)

• A. Priority Flow Control
• B. Virtual1 Extensible LAN
• C. Enhanced Transmission Selection
• D. Address Resolution Protocol
• E. virtual port channel and virtual device context

Answer: AC

NEW QUESTION 2
Which two elements does a workflow template contain? (Choose two.)

• A. task names
• B. workflow structure
• C. admin input values
• D. custom tasks
• E. script modules

Answer: AB

NEW QUESTION 3
Which two protocols are encapsulated in FCoE? (Choose two.)

• A. iSCSI
• B. Fibre Channel
• C. CIFS
• D. DNSF
• E. SCSI

Answer: BE

NEW QUESTION 4
FCoE interfaces are defined as which two port types? (Choose two )

• A. VZ Port
• B. VE Port
• C. VF Port
• D. VI Port
• E. VS Port

Answer: BC

Explanation:
VF PortBeginning in Cisco NX-OS Release 5.0(2)N1(1), vFC interfaces always operate in trunk mode; vFC interfaces do not operate in any other mode. You can configure allowed VSANs on a vFC by using theswitchport trunk allowed vsan command under the vfc interface (which is similar to FC TF and TE ports). For vFC interfaces that are connected to hosts, port VSAN is the only VSAN that supports logins (FLOGI). We recommend that you restrict the allowed VSANs for such vFC interfaces to the
port VSAN by using theswitchport trunk allowed vsan command in the interface mode to configure a VF port.
Cisco NX-OS Release 5.0(2)N1(1) includes support for 160 vFC interfaces.
The vFC VSAN assignment and the global VLAN-to-VSAN mapping table enables the Cisco Nexus 5000 Series switch to choose the appropriate VLAN for a VF port.
The VF port support over 10G-FEX interfaces feature is supported only in Cisco Nexus 2000 Series Fabric Extender straight-through topologies where each Fabric Extender is directly connected to a Cisco Nexus 5000 Series switch.
VE PortsA virtual E port (VE port) is a port that emulates an E port over a non-Fibre Channel link. VE port connectivity between Fibre Channel Forwarders (FCFs) is supported over point-to-point links. These links can be individual Ethernet interfaces or members of an Ethernet port-channel interface. For each of the FCF connected Ethernet interfaces you must create and bind an vFCinterface to the Ethernet interface. Configure vFC interfaces as VE ports by using the switchport mode e command in interface mode.
VE ports have the following guidelines: Auto mode on the vFC is not supported.
VE Port trunking is supported over FCoE-enabled VLANs.
VE Port interface binding to MAC addresses is not supported. By default the VE Port is enabled for trunk mode.
You can configure multiple VSANs on the VE port. You must configure the FCoE VLANs that correspond to the VE port’s VSANs on the bound Ethernet interface.
The Spanning Tree Protocol is disabled on the FCoE VLANs on any interface that a vFC interface is bound to, which includes the interfaces that the VE ports are bound to.
Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/san_switching/502_n2_1/b_Cisco_n5k_nxos_sanswitching_config_guide_rel502_n2_1/Cisco_n5k_nxos_sanswitching_config_guide_rel502_n2_1_chapter3.html

NEW QUESTION 5
Which description of the role of a VEM on a Cisco Nexus 1000V Series Switch is true?

• A. It switches the data traffic within the hypervisor.
• B. It configures the interfaces.
• C. It controls the software of the DVS.
• D. It conveys the control and packet VLAN IDs.

Answer: A

NEW QUESTION 6
Which benefit is realized by using a fabric extender?

• A. improved data rates
• B. reduced routing complexity
• C. cut-through local, nonblocking switching
• D. central control and management by its parent switch

Answer: D

NEW QUESTION 7
Which type of port is used to connect and communicate with a SAN storage device on a Cisco MDS
switch?

• A. Fibre Channel
• B. QSFP
• C. serial
• D. Ethernet

Answer: C

NEW QUESTION 8
Which feature monitors state transitions of components and processes in Cisco Unified Computing System?

• A. finite state machine
• B. state monitor
• C. state manager
• D. discovery
• E. logical state arbiter

Answer: A

NEW QUESTION 9
Which two benefits of implementing multiple VDCs on a physical switch are true? (Choose two.)

• A. It simplifies the STP design.
• B. allows a physical port to be shared among multiple virtual Ethernet switches.
• C. It allows multiple logical switches to be created by using a single physical switch.
• D. It allows each VDC to run a different version of Cisco NX-OS.
• E. Faults are isolated and contained within the specific VDC.

Answer: BC

NEW QUESTION 10
Which three items in Cisco Unified Computing System are subject to finite state machine validation?
(Choose three.)

• A. SNMP get
• B. local login
• C. server discovery
• D. firmware downloads
• E. server boot
• F. backup jobs

Answer: CDF

NEW QUESTION 11
What is the benefit of virtual contexts in ACE for server load balancing?

• A. acts as several virtual appliances within a physical appliance
• B. compresses the data communication on ACE platforms
• C. integrates ACE gear with ASA firewalls for extra security
• D. facilitates data communication encryption

Answer: A

NEW QUESTION 12

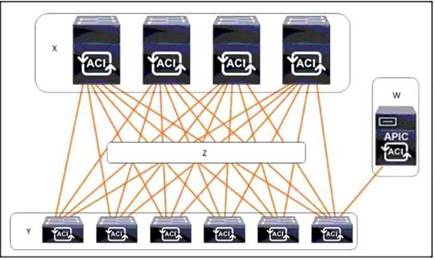

Refer to the exhibit.

Which option accurately describes the infrastructure?

• A. X represents the spine nodes Y represents the leaf nodes Z is the Cisco Fabric Interconnect layer W is the VMware vCenter Server
• B. X represents the spine nodes Y represents the leaf nodes Z is the Cisco ACI fabric W is the Cisco Application Policy Infrastructure Controller
• C. X represents the leaf nodes Y represents the spine nodes Z is the Cisco ACI fabric W ts the VMware vCenter Server
• D. X represents the collapsed backWne nodes Y represents the access nodes Z is the Cisco Fabric Interconnect layer W is the Cisco Application Policy Infrastructure Controller

Answer: C

NEW QUESTION 13

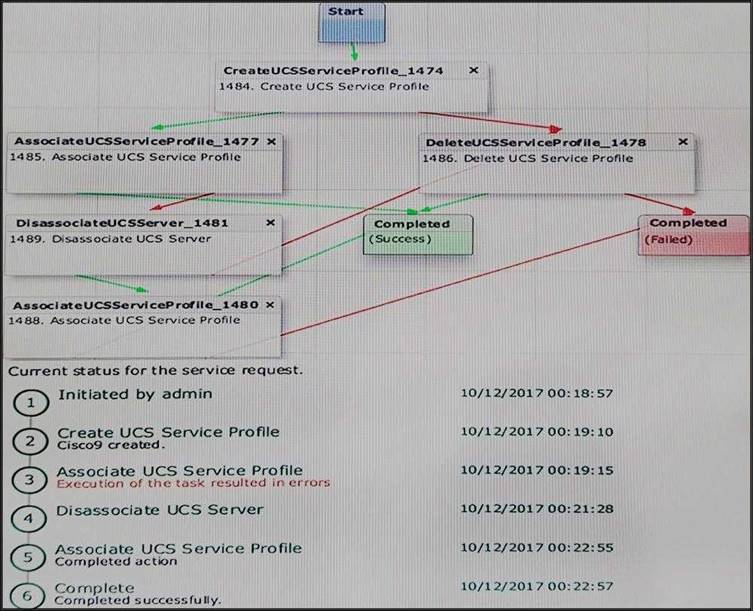

Refer to the exhibit.

Which two description of the workflow are true? (Choose two.)

• A. It fails if the blade has an existing profile.
• B. It creates a service profile.
• C. It deletes the service profile after associating the profile to a server.
• D. It attempts to recreate the service profile if the initial attempt fails.
• E. It assigns a service profile to a blade

Answer: DE

NEW QUESTION 14
Which requirement is unique to service profile templates?

• A. VLAN
• B. VSAN
• C. pooled identities
• D. vNIC
• E. vHBA

Answer: C

NEW QUESTION 15
Which two components are part of the Cisco Unified Computing System 2104 I/O Module? (Choose two)

• A. multiplexer
• B. chassis management console
• C. finite state machine
• D. data management engine
• E. chassis management controller

Answer: AE

NEW QUESTION 16
Which Cisco UCS Manager account is the default user account, which cannot be deleted or modified?

• A. admin
• B. superuser
• C. super user
• D. root

Answer: A

NEW QUESTION 17
Which option is a benefit of Unified Fabric Delivery to an IT organization?

• A. lower total cost of ownership
• B. reduced memory requirements
• C. increased storage capacity
• D. improved security

Answer: A

Explanation:
Cisco Unified Fabric is the interconnection point for applications, stored data, and users that can help you:
• Build an intelligent, high-performing infrastructure with multidimensional scalability for the data center network
• Simplify your data center architecture and reduce costs with LAN and SAN convergence, helping you reduce capital costs with fewer devices, simpler management, and more flexible configuration policies
• Create an open, programmable network backbone that is easier and faster to deploy and manage Reference: http://www.cisco.com/c/dam/en/us/products/collateral/switches/nexus-7000-series-switches/at_a_glance_c45-617345.pdf

NEW QUESTION 18
Which Cisco Nexus 1000V component provides the platform on which Cisco NX-OS runs and interacts
with other components that make up the Cisco Nexus 1000V?

• A. Virtual Supervisor Module
• B. Virtual Ethernet Module
• C. Virtual Service Blade
• D. Virtual Security Gateway

Answer: A

NEW QUESTION 19

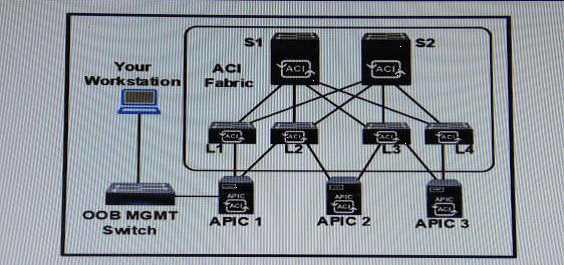

Refer to the exhibit

Refer to the exhibit, which device is discovered after L1 registers to APIC 1?

• A. OOB MGMT switch
• B. L2
• C. S1
• D. APIC 2

Answer: C

NEW QUESTION 20
Which result occurs when communication fails between a VSM and a VEM?

• A. The new active VSM broadcasts requests to all VEMs to switch to the new active VSM device.
• B. The VEM queries VMware vCenter for a new configuration.
• C. The VEM is disabled and an administrator must bring the VEM up.
• D. The VEM stops forwarding packets until communication to the VSM can be established.

Answer: A

NEW QUESTION 21
What are two main benefits of standardized open API’s in a multi-vendor environment? (Choose
two)

• A. automation
• B. clustering
• C. interoperability
• D. centralized management
• E. configuration management

Answer: AD

NEW QUESTION 22

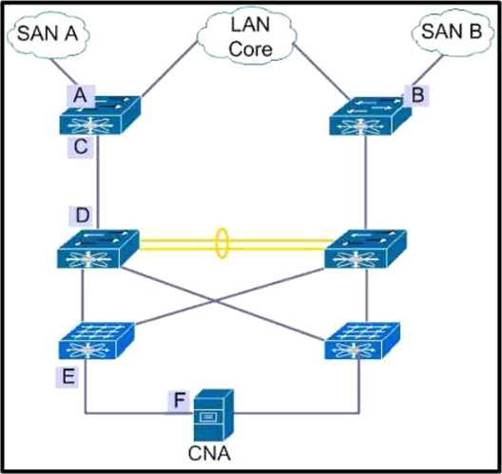

Refer to the exhibit.

Which two ports are VE ports in this FCoE topology? (Choose two

• A. Option
• B. Option
• C. Option
• D. Option
• E. Option
• F. Option

Answer: CD

NEW QUESTION 23
Which descriptions of the management VRF is true?

• A. It supports static routing only
• B. It is created by a user.
• C. It requires a LAN Enterprise Service Package license
• D. It is equivalent to a global routing table in Cisco IOS

Answer: A

NEW QUESTION 24
Which virtualization feature is used to move VMs between two different ESXI hosts?

• A. Partitioning
• B. encapsulation
• C. hardware abstraction
• D. isolation

Answer: C

NEW QUESTION 25
Which vPC connection creates the illusion of a single control plane?

• A. vPC keepalive link
• B. vPC control Iink
• C. vPC management link
• D. vPC peer link
• E. vPC overlay link

Answer: D

Explanation:
The vPC peer link is the most important connectivity element in the vPC system. This link is used to create the illusion of a single control plane by forwarding Bridge Protocol data units (BPDUs) or Link Aggregation Control Protocol (LACP) packets to the primary vPC switch from the secondary vPC switch.
Reference: http://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series- switches/design_guide_c07-625857.html

NEW QUESTION 26
A Cisco DCS administrator is ready to cable two newly racked Fabric Interconnects. Which two
cabling configurations should be used for the heartbeat connectivity? (Choose two.)

• A. Connect the Layer 1 portal Fabric Interconnect Ala me Layer 2 port of Fabric Interconnect B.
• B. Connect the Layer 2 port of Fabric Interconnect A to the Layer 2 port of Fabric Interconnect B.
• C. Connect the Layer 1 port of Fabric Interconnect A to the Layer 1 port of Fabric Interconnect B.
• D. Keep the Layer 2 port of both Fabric Interconnects disconnected.
• E. Connect the Layer 2 port of Fabric Interconnect A to the Layer 1 port of Fabric Interconnect B.

Answer: CD

NEW QUESTION 27
Which description of a VNTag is true?

• A. A VNTag is inserted between the source MAC address and the 802.1Q field.
• B. The VNTag is used to identify the service level that is granted to a frame.
• C. A VNTag is based on the destination MAC address and the 802.1Q field.
• D. A VNTag requires a Cisco Nexus 1000v Series Switch.

Answer: A

NEW QUESTION 28
Which description of the APIC REST API is true?

• A. uses Java to access the Cisco ACI fabric
• B. allows administrators to programmatically configure objects
• C. uses SNMP for POST and GET
• D. allows administrators to retrieve configurations in the CSV format

Answer: A
