NEW QUESTION 1
A BIG-IP Administrator is configuring an SSH Pool with five members.
Which Health Monitor should be applied to ensure that available pool members are monitored accordingly?

• A. https
• B. udp
• C. http
• D. tcp

Answer: D

NEW QUESTION 2
An LTM device has a virtual server mapped to www5f.com with a pool assigned. The objects are defined as follows:
Virtual server. Destination 192.168.245.100.443 netmask 255.255.255.0 Persistence: Source address persistence netmask 255.0.0.0 SNAT:AutoMap
Profiles: HnP/TCP
How should the BIG-IP Administrator modify the persistence profile so that each unique IP address creates a persistence record?

• A. netmask 0.0.0.0
• B. netmask 255.255.255.255
• C. netmask 255.255.0.0
• D. netmask 255.256.255.0

Answer: B

NEW QUESTION 3
A BIG-IP Administrator is checking the BIG-IP device for known vulnerabilities. What should the 8IG-IP Administrator upload to BIG-IP iHealth for further analysis?

• A. QKView
• B. EUD
• C. UCS
• D. tcpdump

Answer: A

NEW QUESTION 4
An ecommerce company is experiencing latency issues with online shops during Black Friday's peak season. The BIG-IP Administrator detects an overall high CPU load on the BIG-IP device and wants to move the top utilized Virtual Servers to a dedicated BIG-IP device.
Where should the BIG-IP Administrator determine the problematic Virtual Servers?

• A. System > Plattform
• B. Local Traffic > Virtual Servers > Virtual Server List
• C. Local Traffic > Network Map
• D. Statistics > Module Statistics > Local Traffic > Virtual Servers

Answer: D

NEW QUESTION 5
Refer to the exhibit.

How are new connections load balanced?

• A. To the first two members listed with the same priority group
• B. To the pool member with the least number of connections
• C. To the pool member with a high priority group value defined
• D. To the pool member with a low priority group value defined

Answer: B

NEW QUESTION 6
The ICMP monitor has been assigned to all nodes. In addition, all pools have been assigned custom monitors. The pool is marked available. If a pool is marked available (green) which situation is sufficient to cause this?

• A. All of the pool member nodes are responding to the ICMP monitor as expected.
• B. Less than 50% of the pool member nodes responded to the ICMP echo request.
• C. All of the members of the pool have had their content updated recently and their responses no longer match the monitor.
• D. Over 25% of the pool members have had their content updated and it no longer matches the receive rule of the custom monito
• E. The other respond as expected.

Answer: D

NEW QUESTION 7
Which statement is true concerning iRule events?

• A. All iRule events relate to HTTP processes.
• B. All client traffic has data that could be used to trigger iRule events.
• C. All iRule events are appropriate at any point in the clientserver communication.
• D. If an iRule references an event that doesn't occur during the client's communication, the client's connection will be terminated prematurely.

Answer: B

NEW QUESTION 8
A BIG-IP Administrator makes a configuration change to a Virtual Server on the Standby device of an HA pair. The HA pair is currently configured with Auto-Sync Enabled. What effect will the change have on the HA pair configuration?

• A. The change will be undone when Auto-Sync propagates the config to the HA pair.
• B. The change will be propagated next time a configuration change is made on the Active device.
• C. The change will be undone next time a configuration change is made on the Active device.
• D. The change will take effect when Auto-Sync propagates the config to the HA pair.

Answer: D

NEW QUESTION 9
Interface 1.2 on a BIG-IP VE has a status of UNINITIALIZED. What is the reason for this status?

• A. Interface 1.2 has been added to a trunk.
• B. Interface 1.2 has NOT been assigned to a VLAN.
• C. Interface 1.2 has been disabled.
• D. No default route has been created.

Answer: B

Explanation:
trunk is a portchannel, you need to add a physical interface.

NEW QUESTION 10
A BIG-IP Administrator needs to have a BIG-IP linked to two upstream switches for resilience of the external network. The network engineer who is going to configure the switch instructs the BIG-IP Administrator to configure interface binding with LACP. Which configuration should the administrator use?

• A. A virtual server with an LACP profile and the switches' management IPs as pool members.
• B. A virtual server with an LACP profile and the interfaces connected to the switches as pool members.
• C. A Trunk listing the allowed VLAN IDs and MAC addresses configured on the switches.
• D. A Trunk containing an interface connected to each switch.

Answer: D

NEW QUESTION 11
Which VLANs must be enabled for a SNAT to perform as desired (translating only desired packets)?

• A. The SNAT must be enabled for all VLANs.
• B. The SNAT must be enabled for the VLANs where desired packets leave the BIG-IP.
• C. The SNAT must be enabled for the VLANs where desired packets arrive on the BIG-IP.
• D. The SNAT must be enabled for the VLANs where desired packets arrive and leave the BIG-IP.

Answer: C

NEW QUESTION 12
A standard virtual server has been associated with a pool with multiple members. Assuming all other settings are left at their defaults, which statement is always true concerning traffic processed by the virtual server?

• A. The client IP address is unchanged between the client side connection and the serverside connection.
• B. The server IP address is unchanged between the client side connection and the serverside connection.
• C. The TCP ports used in the client side connection are the same as the TCP ports serverside connection.
• D. The IP addresses used in the clientside connection are the same as the IP addresses used in the serverside connection.

Answer: A

NEW QUESTION 13
A BIG-IP Administrator needs to check the memory utilization on a BIG-IP system. Which two methods can the UIG IP Administrator use? (Choose two.)

• A. Run the tmsh show/sys memory command
• B. Run the tmsh show/sys traffic command
• C. Go to Statistics > Module Statistics > Traffic Summary in the configuration utility
• D. Go to Statistics > Module Statistics > Memory in the configuration utility
• E. Go to System > Disk Management in the configuration utility

Answer: AD

NEW QUESTION 14
A configuration change is made on the standby member of a device group.
What is displayed as "Recommended Action" on the Device Management Overview screen?

• A. Force active member of device group to standby
• B. Activate device with the most recent configuration
• C. Synchronize the active member configuration to the group.
• D. Synchronize the standby member configuration to the group

Answer: D

NEW QUESTION 15
A BIG-IP device has only LTM and ASM modules provisioned. Both have nominal provisioning level. The BI6-IP Administrator wants to dedicate more resources to the LTM module. The ASM module must remain enabled. Which tmsh command should the BIG-IP Administrator execute to obtain the desired result?

• A. modify/sys provision asm level minimum
• B. modify /sys provision Itm level dedicated
• C. modify /sys provision asm level none
• D. modify /sys provision Itm level minimum

Answer: A

NEW QUESTION 16

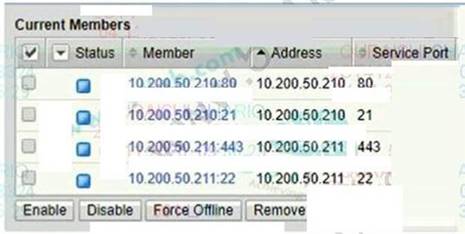

Refer to the exhibit.

A BIG-IP Administrator needs to configure health monitors for a newly configured server pool named Pool_B.
Which health monitor settings will ensure that all pool members will be accurately marked as available or unavailable?

• A. HTTPS, HTTP, FTP, and ICMP, with the Availability Requirement of all health monitors
• B. HTTPS, HTTP, FTP, and SSH, with the Availability Requirement of at least one monitor
• C. HTTPS and HTTP with the Availability Requirement of at least one health monitor
• D. HTTPS, HTTP, FTP, and SSH with the Availability Requirement of all health monitors

Answer: B

Explanation:
From the port, the four members are HTTP, FTP, HTTPS, and SSH applications. If you want to monitor at the same time, you must configure at least one.

NEW QUESTION 17
Which two can be a part of a pool's definition? (Choose two.)

• A. rule(s)
• B. profile(s)
• C. monitor(s)
• D. persistence type
• E. loadbalancing mode

Answer: CE
