NEW QUESTION 1
Management wants to modify Cisco TMS to allow users to configure the call behavior with their associated devices and dial from a single ID. Which feature needs to be enabled and configured?

• A. Smart Scheduler
• B. Low-touch Provisioning
• C. FindMe
• D. CMR Provisioning

Answer: C

NEW QUESTION 2
A network engineer is installing a Cisco TelePresence MX200 with two microphones in a conference room. How far from each other do the microphones need to be installed?

• A. 1 m
• B. 2 m
• C. 3 m
• D. 4 m

Answer: B

NEW QUESTION 3

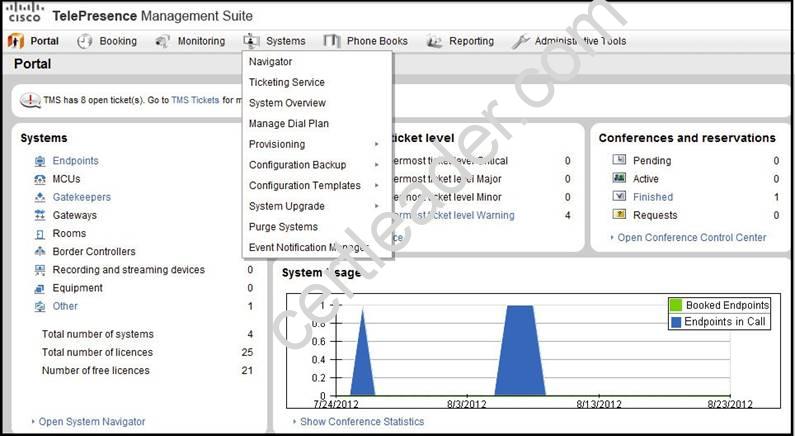

Refer to the exhibit.

Which system tab can be used to add video infrastructure devices and endpoints?

• A. Navigator
• B. System Overview
• C. Configuration Templates
• D. Provisioning
• E. Administrative Tools

Answer: A

NEW QUESTION 4
Which two Cisco TelePresence systems would be appropriate for an executive personal office? (Choose two.)

• A. Cisco Jabber
• B. Cisco IP Video Phone E20
• C. Cisco TelePresence EX Series
• D. Cisco Jabber Video for TelePresence
• E. Cisco TelePresence System 500

Answer: CE

NEW QUESTION 5
Cisco TelePresence Immersive Endpoint devices support a feature that allows objects, documents, or PC applications to be presented in a plug-and-play fashion. What is this feature called?

• A. Cisco TelePresence Content Sharing
• B. Cisco TelePresence Auto Collaborate
• C. Cisco TelePresence Multichannel
• D. Cisco TelePresence Content Stream

Answer: B

NEW QUESTION 6
Which description of medianet is true?

• A. A set of protocols that accelerate the delivery of media across the network
• B. A family of switches and routers that support multimedia applications
• C. When the network works together with the endpoints to scale, optimize, and enhance the performance of collaboration components
• D. A capability of the network to enhance video streaming quality
• E. ACisco proprietary feature that is built on hardware DSP resources

Answer: C

NEW QUESTION 7
A video engineer needs to locate the running version of the Cisco VCS. Under which tab in the Cisco VCS web interface is this information contained?

• A. Applications
• B. Status
• C. System
• D. Configuration

Answer: B

NEW QUESTION 8
Refer to the exhibit.

Which configuration item shown in the exhibit should be used to assign the internal and external video communication server address for this group of users?

• A. User Settings > Video Address pattern
• B. Administrative Tools > User Settings
• C. Configuration Template > Edit Template
• D. User Import > Configuration

Answer: C

NEW QUESTION 9
Which effect of the CLI set audio aec enable command on the immersive Cisco Telepresence system is true?

• A. Echo cancellation is enabled.
• B. Call economy quality feature is enabled.
• C. Noise cancellation is enabled.
• D. AEC audio codec is enabled.

Answer: A

NEW QUESTION 10
What is the process for resetting a Cisco VCS control appliance back to initial default configuration?

• A. Push down and hold the reset button on the back of the VCS appliance for 10 seconds and power cycle the device.
• B. Log onto the CLI console as root and initiate the defaults-reset command.
• C. Log into the GUI interface as administrator, choose System Settings, select Restore, select Factory Reset.
• D. Log onto the CLI console as root and initiate the factory-reset command.

Answer: D

Explanation: https://www.cisco.com/c/dam/en/us/td/docs/telepresence/infrastructure/vcs/troubleshooting/RMA-Procedures-fo

NEW QUESTION 11
Cisco TMS is unable to manage endpoints and an engineer is required to capture logs to determine the cause. What is the menu path that the engineer should follow to capture and download logs from Cisco TMS?

• A. Administrative Tools > Diagnostics > TMS Tickets
• B. Administrative Tools > TMS Server Maintenance > Download Diagnostic Files
• C. Systems > Navigator > Diagnostics > Download Diagnostic Files
• D. Systems > Navigator > TMS Logs

Answer: B

NEW QUESTION 12
Refer to the exhibit.

Which SIP URI should be dialed in order to reach the endpoint that is registered with the IP address of 172.29.1.221 from another endpoint with a URI of sip:e20@dca256.test?

• A. 52900121
• B. sip:ex90@osl147.local
• C. ex90@osl148.local
• D. 172.29.1.221
• E. ex90

Answer: B

NEW QUESTION 13
Which technology can be used to pair an iPad with a Cisco room-based video collaboration endpoint?

• A. Bluetooth
• B. Wi-Fi
• C. Cisco Intelligent Proximity
• D. Zigbee

Answer: C

Explanation: https://www.cisco.com/c/en/us/products/collaboration-endpoints/intelligent-proximity.html

NEW QUESTION 14
Which of these devices supports POE 802.1af?

• A. Cisco 7975
• B. Cisco 7960
• C. Cisco 7945
• D. Cisco 7940

Answer: A

NEW QUESTION 15
Which type of packet-oriented network has the characteristic of being drop-tolerant and delay insensitive?

• A. data
• B. voice
• C. video
• D. converged
• E. All packet-oriented networks share these characteristics.

Answer: A

NEW QUESTION 16
An engineer is connecting a VISCA cable. What is the purpose of this cable?

• A. to connect camera to codec
• B. to connect camera to monitor
• C. to connect camera to touch panel
• D. to connect camera to network

Answer: A

NEW QUESTION 17
Which two Cisco TelePresence endpoints are considered immersive endpoints? (Choose two.)

• A. C20
• B. EX90
• C. SX10
• D. TX9000
• E. IX5000

Answer: DE

NEW QUESTION 18
A technician is trying to troubleshoot real-time call information from the CLI of a VCS. Which command should the technician enter?

• A. xstatus
• B. xconfiguration
• C. xfeedback
• D. xhistory
• E. xcommand

Answer: C
