NEW QUESTION 1
During a network outage, a network administrator used the Cisco SD-WAN vManage Troubleshooting Dashboard APIs to troubleshoot the cause of the issue. Which detail is captured during troubleshooting with these APIs?

• A. VPN health
• B. public cloud resources
• C. connections summary
• D. OMP connection health

Answer: C

NEW QUESTION 2
Which field must be completed in Cisco DNA Center when a network discovery is initiated?

• A. SNMP read community string
• B. Enable password
• C. NETCONF port
• D. Discovery type

Answer: D

NEW QUESTION 3

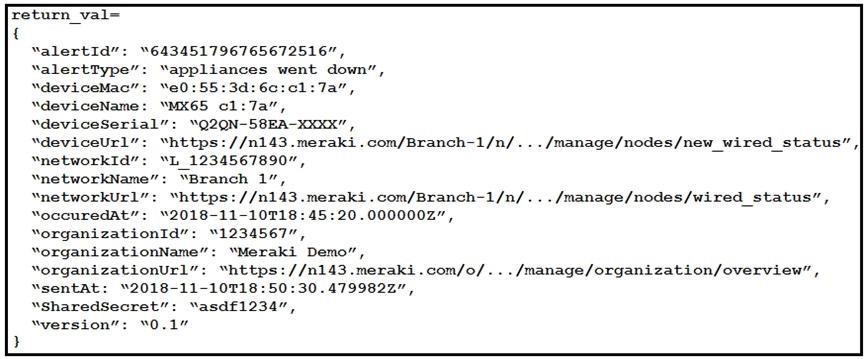

Refer to the exhibit. The task is to create a Python script to display an alert message when a Meraki MX Security Appliance goes down. The exhibit shows sample data that is received. Which Python snippet displays the device name and the time at which the switch went down?

• A.
• B.
• C.
• D.

Answer: B

NEW QUESTION 4
Which tag is required when establishing a YANG-push subscription with a Cisco IOS XE device?

• A. <yp:period>
• B. <yp:subscription-result>
• C. <yp:subscription-id>
• D. <yp:xpath-filter>

Answer: D

NEW QUESTION 5
Which two API calls must be issued to attach a device template in Cisco SD-WAN? (Choose two.)

• A. “monitor device action status” GET API request with the device ID to display the status of the attach action
• B. “monitor device action status” GET API request with the process ID to display the status of the attach action
• C. PUT call to initiate the attach action
• D. POST call to initiate the attach action
• E. GET call to initiate the attach action

Answer: BD

NEW QUESTION 6

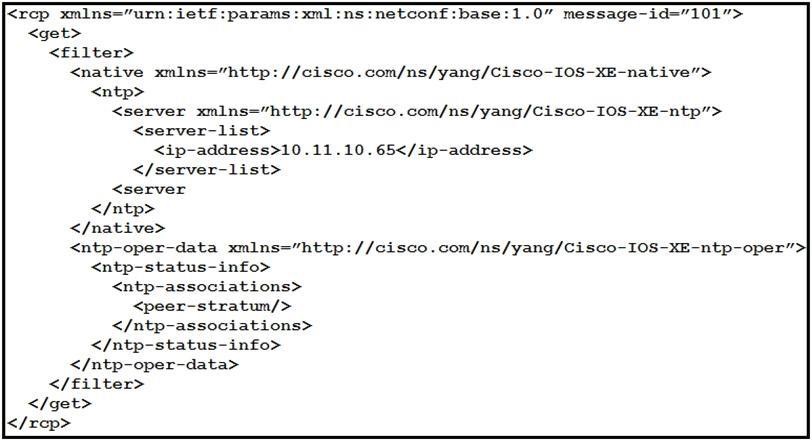

Refer to the exhibit. How many YANG models does the NETCONF <get> operation interact with?

• A. one
• B. two
• C. three
• D. four

Answer: A

NEW QUESTION 7
With the MV Sense API, which REST endpoint provides LUX level?

• A. /merakimv/XXXX-XXXX-XXXX/light
• B. /merakimv/XXXX-XXXX-XXXX/raw_detections
• C. /merakimv/XXXX-XXXX-XXXX/0
• D. /merakimv/XXXX-XXXX-XXXX/zones

Answer: A

NEW QUESTION 8

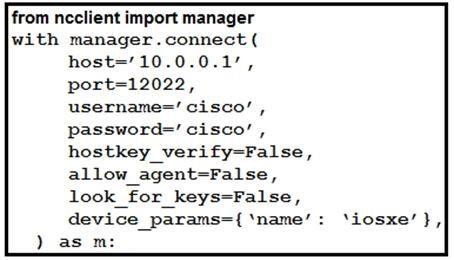

Refer to the exhibit. What is the correct ncclient method to use to collect the running configuration of a Cisco IOS XE device that uses NETCONF?

• A. config=m.copy_config(source=’running’)
• B. config=m.get(source=’running’)
• C. config=m.collect_config(source=’running’)
• D. config=m.get_config(source=’running’)

Answer: A

NEW QUESTION 9
Which Python snippet receives a Meraki webhook request?
A.

• A.
• B.
• C.

Answer: D

NEW QUESTION 10
FILL BLANK
Fill in the blank to complete the URL for the Cisco SD-WAN API that retrieves a list of users that are logged into a device.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
interface?

NEW QUESTION 11
A configuration has been made to add to every switch port a new port description. The script worked initially, but after a few seconds, an HTTP 429 status code was received. What causes this error message from the Meraki cloud?

• A. The wrong API key is used to query the data.
• B. The rate limit of the Cisco Meraki API is exceeded.
• C. The API key has expired.
• D. The device goes offline while you poll the API dashboard.

Answer: B

NEW QUESTION 12
What are two characteristics of synchronous calls to APIs? (Choose two.)

• A. They can be used only with certain programming languages.
• B. They make your application less portable, so asynchronous calls are preferred.
• C. They can add perceived latency to your application if data is not received.
• D. They block until a response is returned from the servers.
• E. They do not block while waiting for the API to be processed.

Answer: CE

NEW QUESTION 13
Which two Netmiko methods are used to configure a device? (Choose two.)

• A. send_config()
• B. send_control_from_file()
• C. send_config_set()
• D. send_command()
• E. send_config_from_file()

Answer: CE

NEW QUESTION 14
Which two API calls are used to trigger a device configuration sync in Cisco DNA Center? (Choose two.)

• A. PUT /dna/intent/api/v1/network-device
• B. PUT /dna/intent/api/v1/network-device/sync-all
• C. PUT /dna/intent/api/v1/network- device/{networkDeviceId}/sync
• D. PUT /dna/intent/api/v1/network-device/sync
• E. POST /dna/intent/api/v1/network- device/{networkDeviceId}/sync

Answer: CE

NEW QUESTION 15
FILL BLANK

Information about a rebooted device needs to be displayed with an ID of 260faff9-2d31-4312-cf96-143b46db0211 using the Cisco SD-WAN vManage Administration APIs. The API documentation states that deviceId is a required request parameter. Fill in the blank to create the REST call.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
“deviceid”:

NEW QUESTION 16
Which URI with the request body of Request body: {“name”:”Test”,”organizationId”:<org_id>,”type”:”appliance”} creates a new Meraki network called “Test”, when using APIs?

• A. PUT https://api.meraki.com/api/v0/organizations/<org_id>/networks
• B. POST https://api.meraki.com/api/v0/networks
• C. POST https://api.meraki.com/api/v0/organizations/<org_id>/networks/<net_id>
• D. POST https://api.meraki.com/api/v0/organizations/<org_id>/networks

Answer: D

NEW QUESTION 17

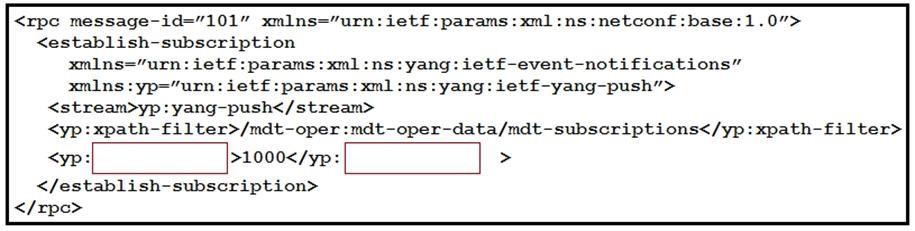

Refer to the exhibit. Which XML tag completes this NETCONF telemetry subscription with a Cisco IOS XE device?

• A. crontab
• B. cadence
• C. frequency
• D. period

Answer: D

NEW QUESTION 18

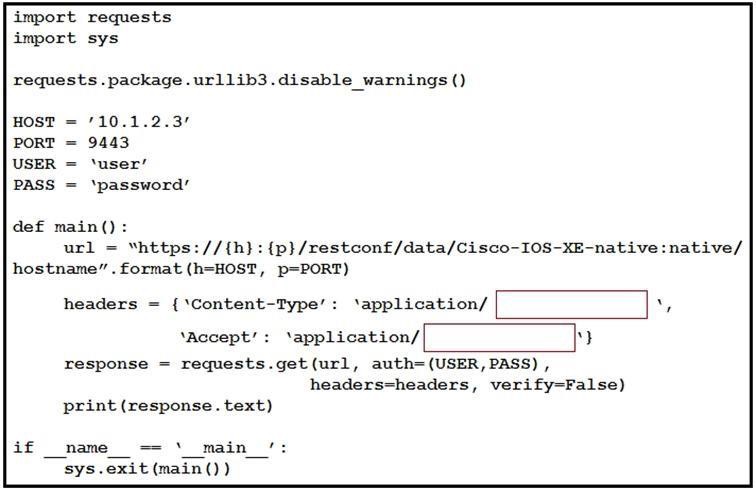

Refer to the exhibit. An engineer creates a Python script using RESTCONF to display hostname information. The code must be completed so that it can be tested. Which string completes the highlighted areas in the exhibit?

• A. yang-data+json
• B. yang +json
• C. yang.data+json
• D. json

Answer: A

NEW QUESTION 19
What does the command boot ipxe forever switch 1 perform when executed on a Cisco IOS XE device?

• A. It continuously sends DHCP requests for iPXE until the device boots with an image.
• B. It continuously sends DNS requests for iPXE until the device restarts.
• C. It continuously sends DNS requests for iPXE until the device boots with an image.
• D. It continuously sends DHCP requests for iPXE until the device restarts.

Answer: A

NEW QUESTION 20
A network administrator must troubleshoot a network issue using Cisco DNA Center. Which API request helps to determine issue details, impacted hosts, or suggested actions for the resolution?

• A. /dna/intent/v1/issues
• B. /dna/intent/api/v1/issues
• C. /dna/intent/v1/issue-enrichment-details
• D. /dna/api/v1/client-health/issues

Answer: B

NEW QUESTION 21

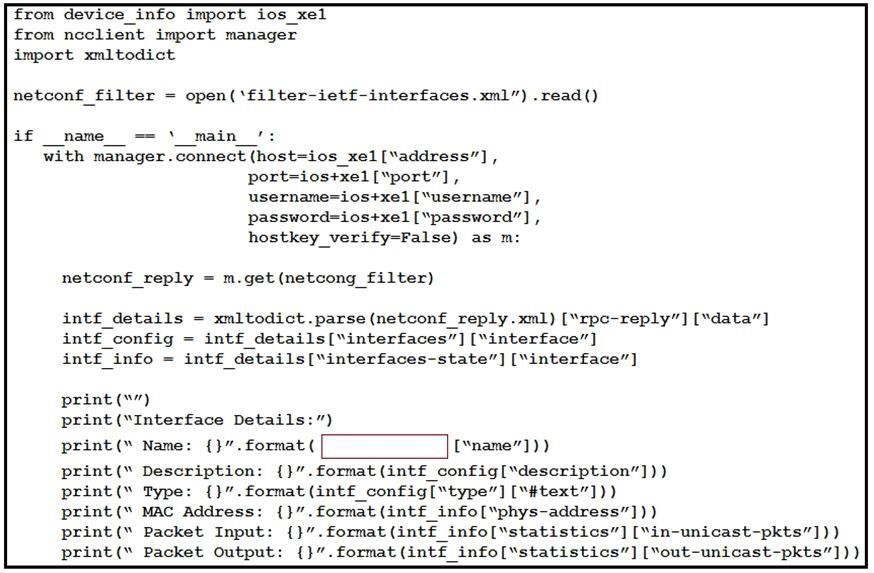

Refer to the exhibits. An engineer creates a Python scripts using ncclient to display interface information. The code must be completed so that it can be tested. Which expression completes the highlighted section in the format call?

• A. intf_info
• B. intf_config
• C. intf_get
• D. intf_config[0]

Answer: A
