NEW QUESTION 1
A customer has to deploy 21 HPE Synergy Compute Modules in a boot from SAN setup. How this task can be simplified while keeping the profile consistent?

• A. Boot volumes can be created on demand and defined in the server profile template.
• B. Boot volumes can be prepared in advance and later presented as shared volumes to the Compute Modules.
• C. An existing volume can be replicated automatically when creating a server profile.
• D. single SAN volume can be created and utilized by all HPE Synergy Compute Modules.

Answer: A

NEW QUESTION 2

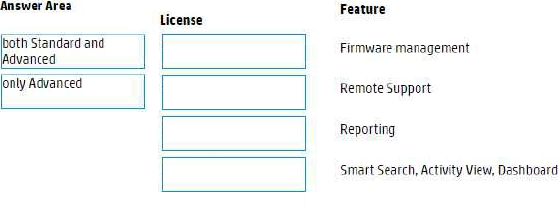

For each feature. indicate whether it is available with both hpe oneview Standard and hpe oneview Advanced licenses, or only with an hpe oneview Advanced license.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 3
What event occurs on iLO when an HPE ProLiant server is added to HPE OneView?

• A. IPMI credentials are configured for the iLO
• B. REST API plugin is enabled for iLO
• C. Active Directory configuration is performed on iLO
• D. SSO certificate is added to the iLO

Answer: B

NEW QUESTION 4
You have created volumes using array management tools and imported the volumes to HPE OneView. Which statement about these volumes is true?

• A. Imported volumes are treated as private volumes and can be only used as boot volumes
• B. Volumes imported to HPE OneView is managed just like a volume created using HPE OneView
• C. Volumes imported to HPE OneView cannot be removed using the HPE OneView interface
• D. A snapshot for imported volumes can be created only by using array management tools

Answer: A

NEW QUESTION 5
Which statement about logical JBODs configured using KPE OneView and D3940 Storage Modules is true?

• A. A logical JBOD lifecycle can be associated with a server profile lifecycle and drives can be securely erased.
• B. A logical JBOD cannot be created during server profile creation and must be prepared in advance
• C. Different types of the drives can be used within a logical JBOD as long as they have the same capacity
• D. Logical JBOD functionality must be enabled on the Enclosure Group level by a storage administrator

Answer: B

NEW QUESTION 6
You want to update the firmware for only two HPE Synergy Virtual Connect SE 32Gb FC Modules of a large environment. From which level must this procedure be initiated?

• A. Logical Enclosure
• B. Logical Interconnect Group
• C. Logical Interconnect
• D. Server Profile

Answer: A

NEW QUESTION 7
Your customer is considering HPE Synergy as a hardware platform for visualization workload. The customer environment is wry dynamic, and they often have to modify hypervisor networking.
Which resource provided by HPE should you discuss with this customer?

• A. HPE OneView Global Dashboard allows server profile replication and change management.
• B. PowerShell Library for HPE OneView allows scripted environment modification.
• C. HPE OneView for VMware vCenter Server will enable host profile functionality and simplify changes.
• D. HPE Image Streamer provides templates which can be updated to map the hypervisor requirements

Answer: C

NEW QUESTION 8
Which parameters can be defined in a server profile template for HPE Synergy Compute Modules? (Select two.)

• A. partition layout for servers running Linux.
• B. IL0 IPv4 or IPv6 address.
• C. local storage and BIOS settings.
• D. NIC teaming setup at OS level.
• E. network and storage connectivity.

Answer: CE

NEW QUESTION 9

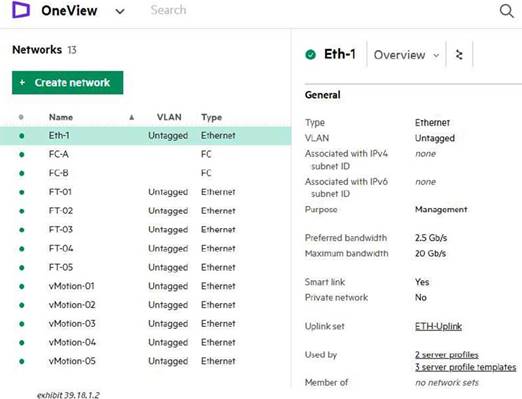

Refer to the exhibit.

Your customer created multiple networks in HPE OneView, but only Eth-1 is available to be used within a server profile. What is a likely cause of this situation?

• A. The other networks are not configured with the required Smart Link parameter.
• B. The other networks are not added to the Logical Interconnect Group configuration.
• C. The other networks have Private Network' selected, which hides them from Compute Modules.
• D. The other networks are configured with a purpose other than General or Management.

Answer: B

NEW QUESTION 10
Click the option that must be configured for an HPE OneView when an HPE storage system is connected directly to an HPE Synergy frame.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 11
Your customer built a sever profile for HPE Synergy Gen 10 server and configured boot mode to Legacy BIOS. Which feature Is not available for this Compute Module?

• A. BIOS management
• B. Workload profile
• C. Boot from SAN
• D. Secure boot

Answer: C

NEW QUESTION 12

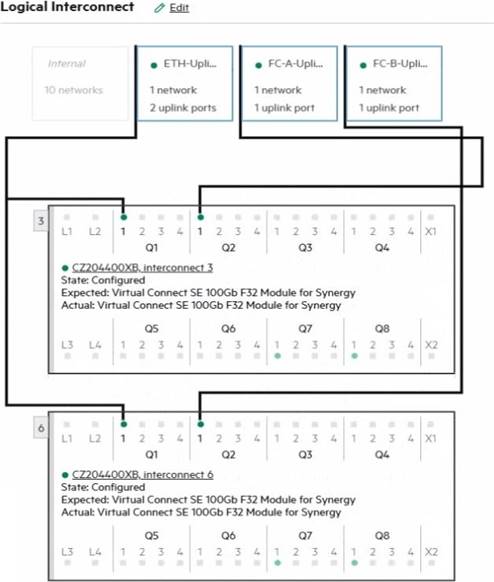

Refer to the exhibit.

Which statement about the logical interconnect shown is true?

• A. For FC uplink sets, an additional uplink from second module should be added for redundancy.
• B. The maximum supported number of the internal networks for logical interconnect is configured.
• C. Additional uplink ports can be added to ETH-Uplink to increase available bandwidth.
• D. FC uplinks are not supported and will be converted to FCoE or RoCE uplinks.

Answer: C

NEW QUESTION 13
Which statement about RoCE network restrictions is true?

• A. RoCE networks require Virtual Connect SE 32Gb FC Modules.
• B. RoCE networks cannot be configured when Virtual Connect modules are used.
• C. RoCE networks are supported only when PVLANs are enabled.
• D. RoCE networks are not supported with HPE BladeSystem

Answer: D

NEW QUESTION 14
Your customer added HPE Primera to HPE OneVlew and enabled volume provisioning on all storage pools. For security reasons, the customer wants to disable volume provisioning using HPE OneView on a specific storage pool.
How can this task be completed?

• A. The storage pool should be removed from HPE OneView using a PowerShell script.
• B. The storage pool should be disabled using the array management tool.
• C. The storage pool state should be changed to discovered using HPE OneView.
• D. The storage pool should be marked as read-only using HPE OneView.

Answer: B

NEW QUESTION 15

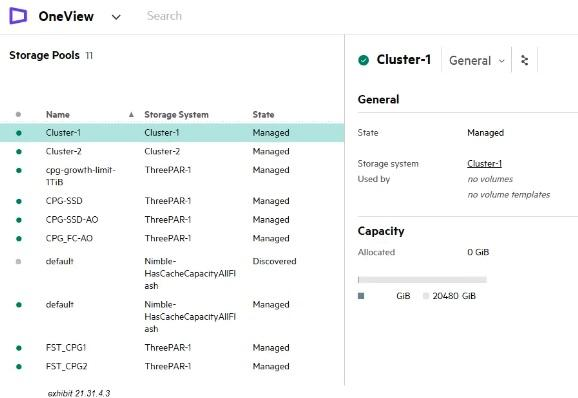

Which statement about the presented storage pools is true?

• A. Storage pools in discovered state can be removed from HPE OneView.
• B. HPE OneView can be used to configure replication only between managed storage pools
• C. All storage pools from the system named ThreePAR-1 can be used for volume provisioning
• D. All storage pools in managed state have a valid HPE OneView license applied

Answer: C

NEW QUESTION 16
Which statement about M-LAG setup is true?

• A. When combined with IRF, M-LAG will allow you to aggregate ports coming from clustered HPE Synergy Virtual Connect modules.
• B. M-LAG for HPE Synergy can be either single-homed or multi-homed, while for HPE BladeSystem only single-homed.
• C. sFLOW cannot be enabled if M-LAG is configured between HPE Synergy Virtual Connect modules in the same frame.
• D. M-LAG has to be defined manually for HPE BladeSystem, but it is automatically configured for HPE Synergy.

Answer: A

NEW QUESTION 17
Which statement regarding HPE OneView backup restore is true?

• A. During backup restore, users with Administrator privileges can still login to HPE OneView
• B. An HPE OneView backup can be used to restore individual components like server profile
• C. Users with Backup Administrator privileges can restore an HPE OneView backup
• D. Only users with Infrastructure Administrator privileges can restore an HPE OneView backup

Answer: D

Explanation:
Only an Infrastructure administrator can restore an appliance from a backup file.

NEW QUESTION 18
Click the option that will allow you to disable virtual MAC addresses or generate a new pool of virtual Worldwide Names.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 19
......
