NEW QUESTION 1
Which command provides detailed information about the components that are installed on a router, such as the model, PID, and serial number?

• A. show chassis
• B. show items
• C. show inventory
• D. show router

Answer: C

NEW QUESTION 2
What does Cisco use for Return Materials Authorization tracking of field- replaceable parts?

• A. product number
• B. serial number
• C. RMA number
• D. FRU number

Answer: C

NEW QUESTION 3
Which command sends an echo request packet to the target host and then waits for an echo response message?

• A. echo
• B. access
• C. ping
• D. connect

Answer: C

NEW QUESTION 4
Which two Cisco Nexus 3400 Series switches support 400-Gbps Ethernet ports? (Choose two.)

• A. Cisco Nexus 34180YC
• B. Cisco Nexus 34200YC-SM
• C. Cisco Nexus 3432D-S
• D. Cisco Nexus 3408-S
• E. Cisco Nexus 3464C

Answer: CD

NEW QUESTION 5
Which type of physical connector does a Gigabit Ethernet port typically use?

• A. RJ-9
• B. RJ-45
• C. DB-25
• D. RJ-11

Answer: B

NEW QUESTION 6
Which set of steps best describes how to assign a static IP address to the Ethernet port on a computer?

• A. From the Network and Sharing Center, click Internet Protocol (TCP/IP), and follow the New Connection Wizard instructions.
• B. From the Network and Sharing Center, click Change adapter, then double-click a local area connectio
• C. Select Internet Protocol (TCP/IP) > Properties > Use the Following Address, and then configure the IP information.
• D. Click Star
• E. Enter cmd and click O
• F. Enter the IP address XXX.XXX.XXX.XXX.
• G. From the Network and Sharing Center, double-click Local Area Connectio
• H. Select Properties > iPass Protocol (IEEE 802.1x) > Properties > Static IP.

Answer: B

NEW QUESTION 7
Which address facilitates the routing of packets over an IP network?

• A. physical
• B. transport
• C. network
• D. MAC

Answer: C

NEW QUESTION 8
What is the line speed of a DS0 in North America?

• A. 16 kbps
• B. 32 kbps
• C. 64 kbps
• D. 128 kbps

Answer: C

NEW QUESTION 9
What are two purposes of a USB thumb drive? (Choose two.)

• A. to save the system log
• B. to copy configuration files to and from a PC
• C. to save router hardware information
• D. to copy IOS images to and from a PC
• E. to increase system memory size

Answer: BD

NEW QUESTION 10
Which command initiates the copying of a Cisco IOS image to a Cisco device?

• A. copy tftp nvram
• B. copy tftp flash
• C. copy flash tftp
• D. copy xmodem flash

Answer: B

NEW QUESTION 11

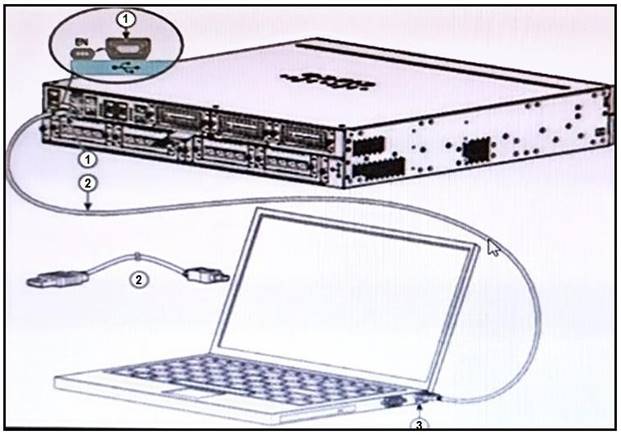

Refer to the exhibit. Which two statements about the hardware components are true? (Choose two.)

• A. 2 is an RJ-45 to USB Type A console cable.
• B. 3 is a USB Type A port.
• C. 3 is a USB 5-pin mini USB Type B port.
• D. 1 is a USB Type A port.
• E. 2 is a USB 5-pin mini USB Type B to USB Type A console cable.

Answer: BE

NEW QUESTION 12
Which type of Cisco console cable is used to connect a laptop to the console port on a Cisco router?

• A. straight-through
• B. fiber
• C. crossover
• D. rollover

Answer: D

NEW QUESTION 13
Which method is the fastest way to recover a software version that supports a USB flash port on a Cisco device?

• A. tftp command
• B. xmodem transfer command
• C. copy command with USB memory
• D. copy tftp flash: command

Answer: C

NEW QUESTION 14
Which Cisco CPAK 100GBASE module supports Multimode Fiber cable?

• A. Cisco CPAK-100G-CWDM4
• B. Cisco CPAK-100G-LR4
• C. Cisco CPAK-100G-ER4L
• D. Cisco CPAK-100G-SR4

Answer: D

NEW QUESTION 15
Which type of memory stores the decompressed form of Cisco IOS Software and the running configuration?

• A. flash
• B. ROM
• C. NVRAM
• D. DRAM

Answer: D

NEW QUESTION 16
The pins on an RJ-45 cable plug are numbered from 1 through 8. When the metal pins of the plug are facing toward you, pin 1 is the leftmost pin. Which two sets of pins are looped on an RJ-45 56K loopback plug? (Choose two.)

• A. pins 2 and 7 B.pins 2 and 8
• B. pins 2 and 5 D.pins 1 and 7
• C. pins 1 and 4

Answer: CE

NEW QUESTION 17
Which two ports on a laptop are used to gain console access to a Cisco switch? (Choose two.)

• A. DB-9
• B. USB
• C. DVI
• D. RJ-11
• E. RJ-45 Ethernet

Answer: AB

NEW QUESTION 18
Which two statements about a SmartJack are true? (Choose two.)

• A. It provides signal conversion.
• B. It acts as a concentration point for dial-in and dial-out connections.
• C. It operates at Layer 2 of the OSI model.
• D. It provides channel testing.
• E. It regenerates the signal to compensate for signal degradation from line transmission.

Answer: AE

NEW QUESTION 19
What is the Windows-based program that executes the ping command to test network connectivity?

• A. cmd
• B. Find
• C. Start
• D. ipconfig

Answer: A

NEW QUESTION 20
Cisco NX-OS has added the ability to use which type of custom scripting to help manage user networks?

• A. C++
• B. Collective
• C. SQL
• D. Python

Answer: D

NEW QUESTION 21
How many pairs of copper wire does a UTP cable have?

• A. 2
• B. 3
• C. 4
• D. 5

Answer: C
