NEW QUESTION 1
Which Cisco UCS backup type results in an XML file that include all system and logical configuration settings?

• A. system configuration
• B. all configuration
• C. full state
• D. logical configuration

Answer: B

NEW QUESTION 2
Which consideration must be made while performing backup operations within the Cisco UCS Manager?

• A. Rerunning an existing backup operation overwrites the existing backup file.
• B. Scheduled backups are not available.
• C. A user can perform incremental backups of a system configuration.
• D. Each backup destination can have multiple backup operations.

Answer: A

NEW QUESTION 3
Which two statements describe the full state type of backup? (Choose two.)

• A. It is a binary file.
• B. It cannot be used to restore the system during disaster recovery.
• C. It can use this file for an import.
• D. It can be used only on a system that is running the same version as the system from which the backup file was exported.
• E. It is an XML file.

Answer: AD

NEW QUESTION 4
Scenario

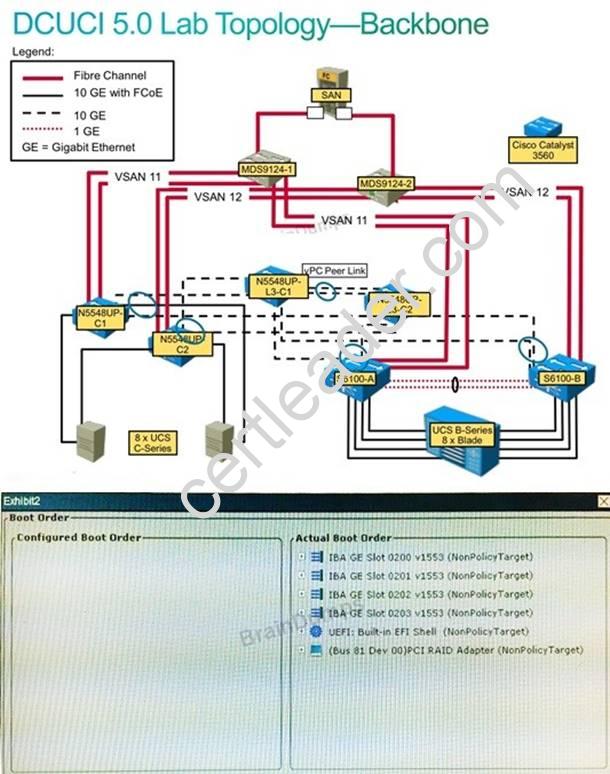

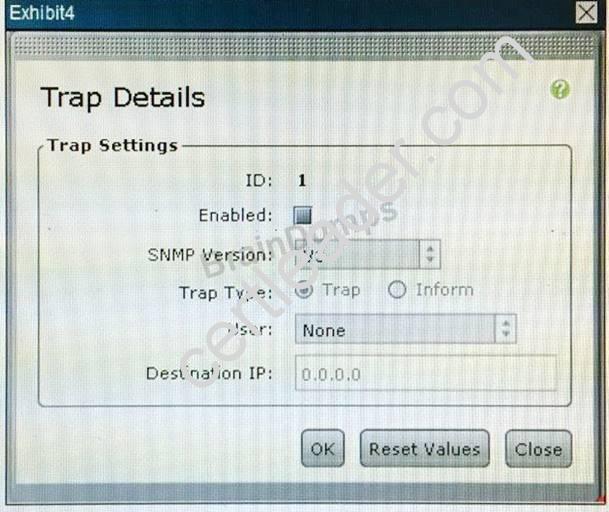

In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager. Instructions
To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.



Refer to the screenshot in Exhibit 3. Which tab would you choose to determine that a user failed to login to Cisco IMC?

• A. Fault Summary
• B. System Event Log
• C. CIMC Log
• D. Logging Controls

Answer: C

Explanation: Reference:
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/gui/config/guide/1.5/b_Cisco_UCS_C-series_G

NEW QUESTION 5
Which of the following is true with respect to recovery from failure with automatic pinning that is configured on a cluster of Cisco Unified Computing System 62XX Fabric Interconnects?

• A. By default, server MAC addresses are pinned to uplink interfaces using PIN groups.
• B. When a northbound fabric interconnect link goes down, the affected servers will use NIC teaming to re-establish connectivity on the second fabric interconnect.
• C. When a northbound fabric interconnect link goes down, the fabric interconnect will send a gratuitous ARP to the northbound switch to announce the servers on the new port.
• D. In the event that all uplink ports on the fabric interconnect lose connectivity, the 22XX I/O module shuts down all of the host ports until at least one uplink is restored.

Answer: C

NEW QUESTION 6
When configuring roles in the Cisco UCS C-Series, which role should be assigned for a person who must be allowed to power on the server and install a hypervisor using virtual media, but not allowed to configure other Cisco Integrated Management Controller settings?

• A. VM admin
• B. user
• C. admin
• D. read-only

Answer: B

NEW QUESTION 7
Which four Cisco UCS components use the Cisco NX-OS syslog services to generate syslog entries for system information and alerts? (Choose four.)

• A. I/O module
• B. fabric interconnect
• C. chassis
• D. Cisco Integrated Management Controller
• E. Cisco UCS Manager
• F. adapter
• G. Ethernet uplink
• H. storage module

Answer: ADEF

NEW QUESTION 8

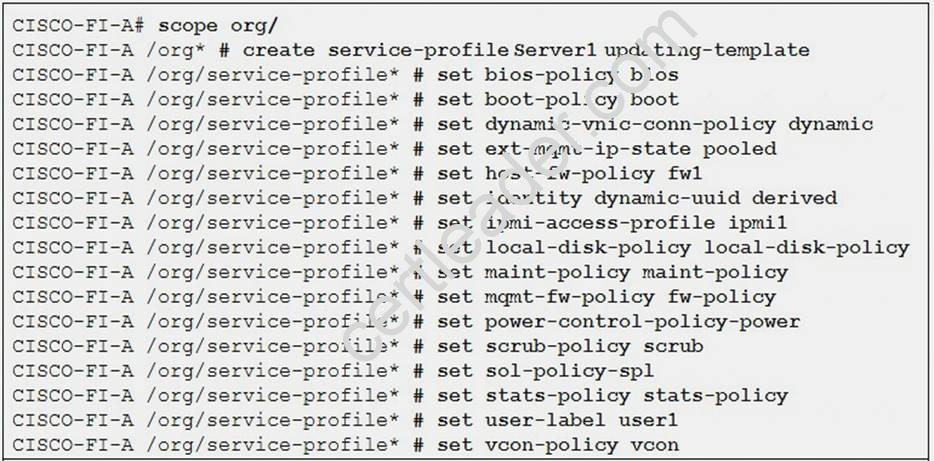

Refer to the exhibit.

You bind the service profile to the updating template. You plan to update the template. Which impact on the service profile when you update the template is true?

• A. Changes to the service profile are locked after the profile is created.
• B. The update to the service profile fails.
• C. The service profile must be updated manually.
• D. The service profile is updated automatically.

Answer: A

NEW QUESTION 9
Your systems engineer has determined all of the firmware versions that the server operating system supports. What steps are taken on Cisco UCS to avoid manual firmware upgrades on the blade servers?

• A. Use Cisco UCS Manager firmware management to upgrade all Cisco UCS blade servers to the same target firmware versions.
• B. Configure host firmware package and management firmware package policies and associate the firmware policies with the service profiles.
• C. Create a BIOS policy and define the host firmware package and management firmware package.
• D. Configure host firmware package and management firmware package policies and associate the firmware policies with the server pools.

Answer: B

NEW QUESTION 10

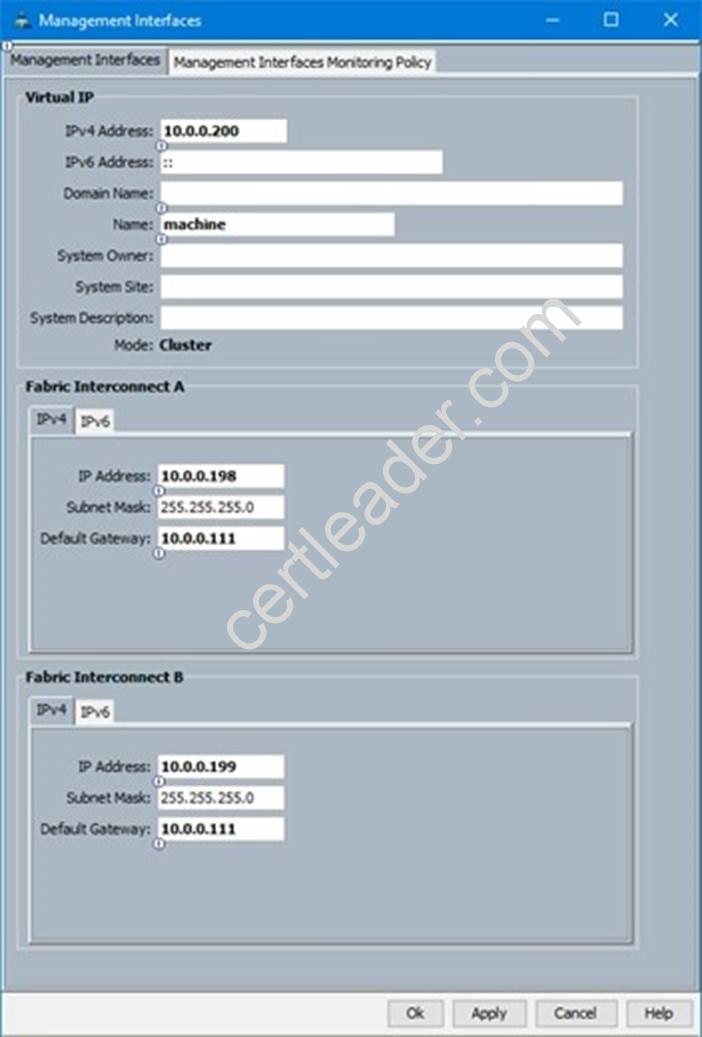

Refer to the exhibit

Fabric Interconnect B is in a primary state. Which IP addresses can you use to connect to Fabric Interconnect B?

• A. 10.0.0.198, 10.0.0.199 and 10.0.0.200
• B. 10.0.0.199 only
• C. 10.0.0.199 and 10.0.0.200 only
• D. 10.0.0.200 only

Answer: C

NEW QUESTION 11
Which of the following supports more than two component-resident versions of firmware?

• A. mezzanine adapters
• B. I/O modules
• C. Cisco UCS fabric interconnects
• D. CIMCs

Answer: C

Explanation: https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-manager/110511-ucs-fw-mgmt-00.h https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/FirmwareMgmt/3

NEW QUESTION 12
What is the maximum number of ports on a VMware vCenter Distributed Virtual Switch?

• A. 64
• B. 128
• C. 1024
• D. 4096
• E. 8192

Answer: D

NEW QUESTION 13
Which two options occur when a server discovery policy is invoked? (Choose two.)

• A. executes the qualification in the server discovery policy against the server
• B. applies the scrub policy to the server
• C. analyzes the inventory of the server
• D. assigns the server to the selected organization, if configured
• E. creates a service profile for the server with the identity burned into the server at time of manufacture

Answer: AB

Explanation: Configuring Server Discovery Policies Server Discovery Policy
This discovery policy determines how the system reacts when you add a new server. If you create a server discovery policy, you can control whether the system conducts a deep discovery when a server is added to a chassis, or whether a user must first acknowledge the new server. By default, the system conducts a full discovery.
If you create a server discovery policy, the following occurs when a new server starts: The qualification in the server discovery policy is executed against the server.
If the server meets the required qualifications, Cisco UCS Manager applies the following to the server:
Depending upon the option selected for the action, either discovers the new server immediately or waits for a user to acknowledge the new server
Applies the scrub policy to the server Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-1/b_UCSM_GUI_Configur

NEW QUESTION 14
Which option lists the features that are needed to install VMware ESXi on a local drive from an image file?

• A. Virtual Media and VMFS
• B. Virtual Media and Virtual KVM
• C. Virtual Boot and VMFS
• D. Virtual KVM and Virtual Boot

Answer: B

Explanation: Reference:
http://www.techrepublic.com/blog/smb-technologist/installing-vsphere-on-cisco-ucs-cseries-servers/

NEW QUESTION 15
Which tool provides automated support capability that provides continuous monitoring, proactive diagnostics, alerts, and remediation recommendations?

• A. Cisco Smart Call Home
• B. snmp
• C. Cisco Director
• D. Cisco Threat Gateway

Answer: A

NEW QUESTION 16
Which policy determines what happens to local disks when they are disassociated from a service profile?

• A. maintenance policy
• B. local disk policy
• C. scrub policy
• D. BIOS policy

Answer: C
