NEW QUESTION 1

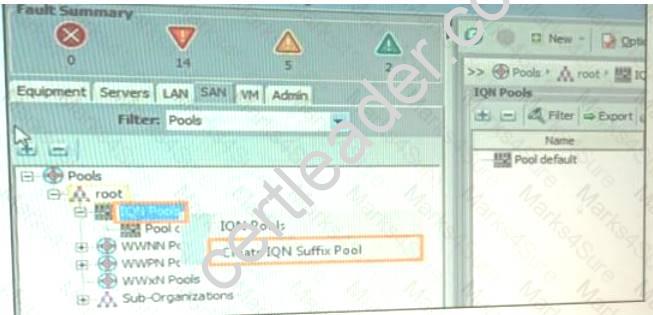

Refer to the Exhibit.

Refer to the Exhibit. Which two components are needed to create an IQN suffix pool?

• A. description
• B. iSCSI vNlC
• C. prefix
• D. IQN block
• E. initiator IP address

Answer: BC

NEW QUESTION 2

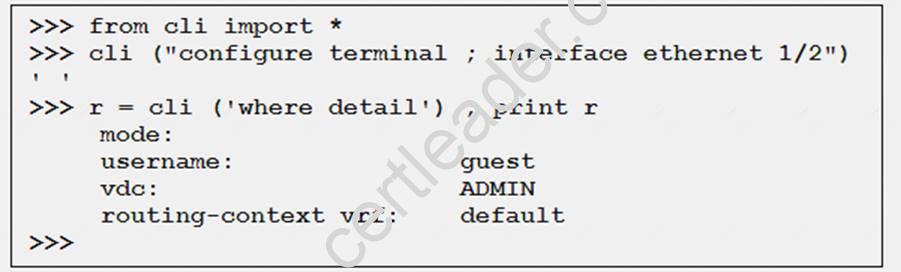

Refer to the exhibit

which script ing tool do you use to create the script?

• A. Python-API
• B. Bach
• C. NX-API
• D. Broadcom shell

Answer: A

NEW QUESTION 3
You have chosen to defer updates to service profiles and to schedule updates. Which option do you modify in the maintenance-policy to accomplish this goal?

• A. Reboot Policy
• B. Schedule
• C. Description
• D. Other

Answer: A

NEW QUESTION 4

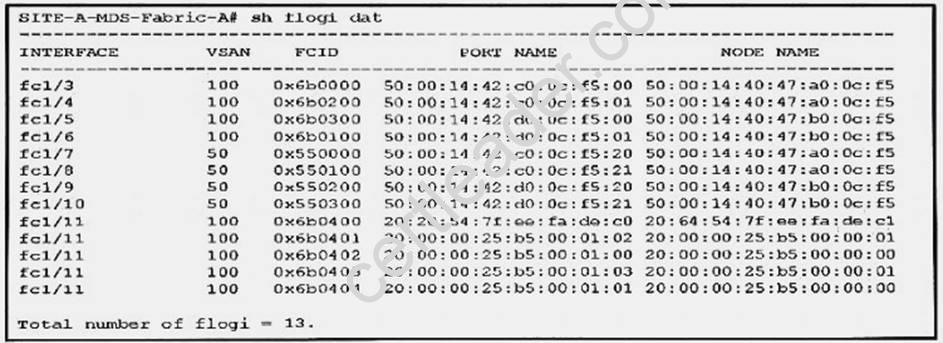

View the Exhibit.

Refer to the exhibit. You need to configure a Fibre Channel device alias named TEST for a device that is attached to port fc 1/9 of a Cisco Nexus Series switch in a Cisco UCS system.
Which command set should you use?

• A. SITE-A-MDS-Fabric-A# configure terminalSITE-A-MDS-Fabric-A (config)# device-alias databaseSITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn 50:00:14:42:d0:0c:f5:20SITE-A-MDS-Fabric-A (config-device-alias-db)# exit
• B. SITE-A-MDS-Fabric-A# configure terminalSITE-A-MDS-Fabric-A (config)# device-alias databaseSITE-A-MDS-Fabric-A(config-device-alias-db)# device-alias name TEST pwwn50:00:14:40:47:b0:0c:f5SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias commit
• C. SITE-A-MDS-Fabric-A# configure terminalSITE-A-MDS-Fabric-A (config)# device-alias databaseSITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias name TEST pwwn 50:00:14:42:d0:0c:f5:20SITE-A-MDS-Fabric-A (config-device-alias-db)# device-alias commit
• D. SITE-A-MDS-Fabric-A# device-alias databaseSITE-A-MDS-Fabric-A (device-alias-db)# device-alias name TEST pwwn 50:00:14:40:47:b0:0c:f5SITE-A-MDS-Fabric-A (config-device-alias-db)#device-alias commit

Answer: B

Explanation: Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/4_1/configuration/guides/cli_4_1/clibo https://community.emc.com/thread/170991?start=0&tstart=0
We need to zone the PWWN (port WWN) of fc1/9, not the NWWN (node WWN) of fc1/9

NEW QUESTION 5
ACisco UCS Administrator is planning to complete a firmware upgrade using Auto install. Which two optionsare prerequisites to run Auto Install? (Choose two.)

• A. Minor fault fixing
• B. Configuration backup
• C. Service profiles unmounted from the blade servers
• D. Time synchronization
• E. Fault suppression started on the blade servers

Answer: BD

Explanation: Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/firmware-mgmt/gui/2-2/b_GUI_Firmware_M

NEW QUESTION 6
You are configuring integration between the Cisco UCS Manager and the VMware vCenter Server Appliance. Which three actions must you perform from the Cisco Configure VMware Integration Wizard? (Choose three.)

• A. Define the virtual machine port profile in the Cisco UCS Manager for virtual machine traffic.
• B. Install and register the Cisco UCS Manager extension as a plug-in in the VMware vCenter.
• C. Install and register the VMware VM Console plug-in in the Cisco UCS Manager.
• D. Apply a port profile (port group) to the virtual machines on the VMware vCenter server.
• E. Apply the Firewall Services Module UCS service profile to Cisco UCS B-Series Blade Server.
• F. Apply a fabric profile to both Cisco Fabric Interconnect uplink ports.

Answer: ABD

Explanation: Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/vm_fex/vmware/gui/config_guide/2-2/b_GUI_

NEW QUESTION 7
Which of the following is true concerning Fibre Channel communications on a Cisco Unified Computing System?

• A. Each VSAN requires a dedicated VLAN to carry FCoE traffic.
• B. FCoE VLANs are created like Ethernet VLANs on Cisco Unified Computing System Manager.
• C. FCoE VLANs may overlap with Ethernet VLANs.
• D. Cisco Unified Computing System Manager supports a maximum of 128 active VSANs.

Answer: A

NEW QUESTION 8
A service profile is created using vHBAs. What will happen if the profile is applied to a server with a mezzanine card without storage capability?

• A. The blade association will fail.
• B. The storage adapter will not be visible to the operating system.
• C. A virtual storage adapter will be created.
• D. A WWNN or a WWPN will be autoselected from the default pool.

Answer: A

Explanation: https://supportforums.cisco.com/t5/data-center-blogs/c-series-resolve-service-profile-association-failure-when/b https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration In addition to any guidelines or recommendations that are specific to policies and pools included in service
profiles and service profile templates, such as the local disk configuration policy, you need to be aware of the following guidelines and recommendations that impact the ability to associate a service profile with a server.

NEW QUESTION 9

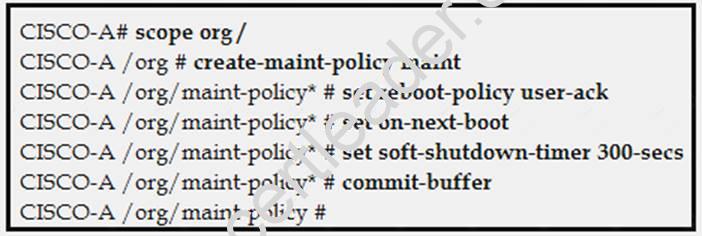

Refer to the exhibit.

Which result of implementing the maintenance policy is true?

• A. The FSM applies the waiting changes when the host OS resets.
• B. The Cisco UCS server reboots as soon as the change is made to the service profile.
• C. The Cisco UCS server reboots at a scheduled time.
• D. The Cisco UCS server reboots 300 seconds after the policy is applied.

Answer: A

NEW QUESTION 10

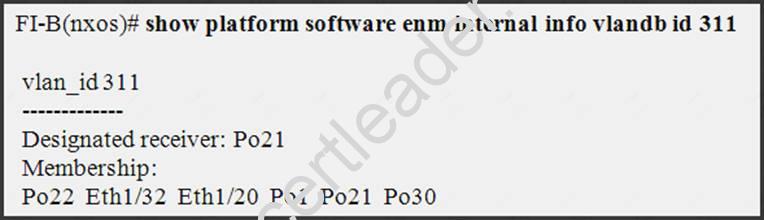

Refer to the exhibit.

Which two statements about the fabric interconnect are true? (Choose two.)

• A. The fabric interconnect forwards all broadcast packets on VLAN 311 out of each interface listed in the Membership.
• B. The fabric interconnect forwards broadcasts on VLAN 311 only when they are received on Po21.
• C. Without any changes to the switch, eth 1/32 could become the designated receiver for VLAN 311.
• D. All multicast traffic from a blade on VLAN 311 goes out of Po21.
• E. IGMP join packets from blades on VLAN 311 goes out Po21.

Answer: BE

NEW QUESTION 11
Which scheduling option sets the number of tasks that can be run?

• A. max number of concurrent tasks
• B. max changes
• C. max number of tasks
• D. max configuration requests

Answer: C

NEW QUESTION 12
Which two Cisco UCS firmware are contained in the Cisco UCS Infrastructure software bundle? (Choose two.)

• A. Cisco I/O module firmware
• B. Cisco UCS IMC
• C. Cisco UCS BIOS
• D. Cisco UCS fabric interconnects firmware
• E. Cisco UCS adapters

Answer: AD

Explanation:
for A, D: "A" BUNDLE
Infrastructure software bundle — This bundle is also called the A bundle. It contains the firmware images that the fabric interconnects, IO Modules, and Cisco UCS Manager require to function.
"B" BUNDLE
B-S eries server software bundle — Also called the B bundle, this bundle contains the firmware images that the B-Series blade servers require to function, such as adapter, BIOS, CIMC, and board controller firmware. Release Bundle Contents for Cisco UCS Manager, Release 3.1 provides details about the contents of the BSeries server software bundle.
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/FirmwareMgmt/3 b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_01.html

NEW QUESTION 13

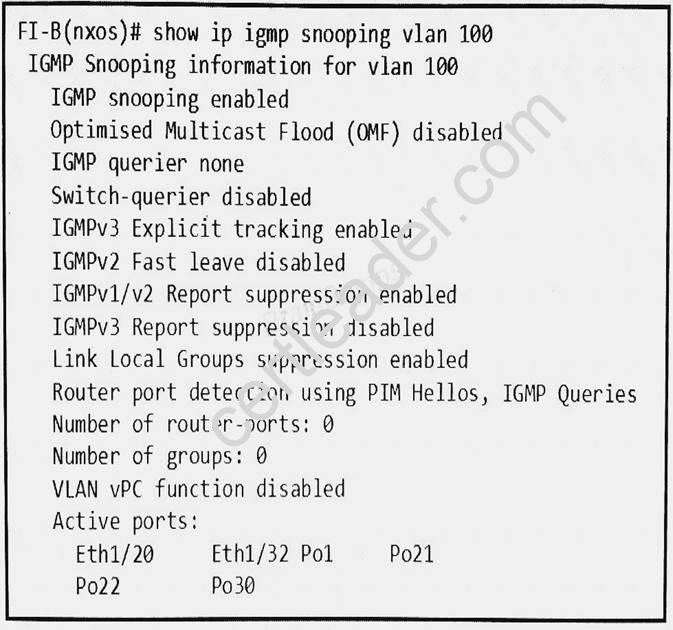

Refer to the exhibit.

Based on the output, which statement about the fabric interconnect is true?

• A. The fabric interconnect floods multicast traffic in VLAN 100.
• B. 10 groups in the fabric interconnect have been configured for VLAN 100 access.
• C. After adding VLAN 100, no other changes were made.
• D. IGMP snooping was enabled by the admin for VLAN 100.

Answer: D

NEW QUESTION 14
Which addressing does Cisco UCS Manager use when communicating with Cisco UCS Central?

• A. IP addresses of the UCS Fabric Interconnects
• B. UCS CIMC
• C. VMware ESXi server
• D. IP address of the UCS KVM

Answer: A

NEW QUESTION 15
Which authentication provider requires a custom attribute?

• A. TACACS+
• B. RADIUS
• C. LDAP
• D. local authentication

Answer: A

Explanation: Reference:
http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration_Guide_141_chapter7.html

NEW QUESTION 16
How many links are there between a second-generation IOM (Cisco UCS 2204 or 2208) and a third-generation half-width blade (Cisco UCS B200 M3 or B22 M3) in a Cisco UCS system?

• A. 1
• B. 2
• C. 4
• D. 8

Answer: C
