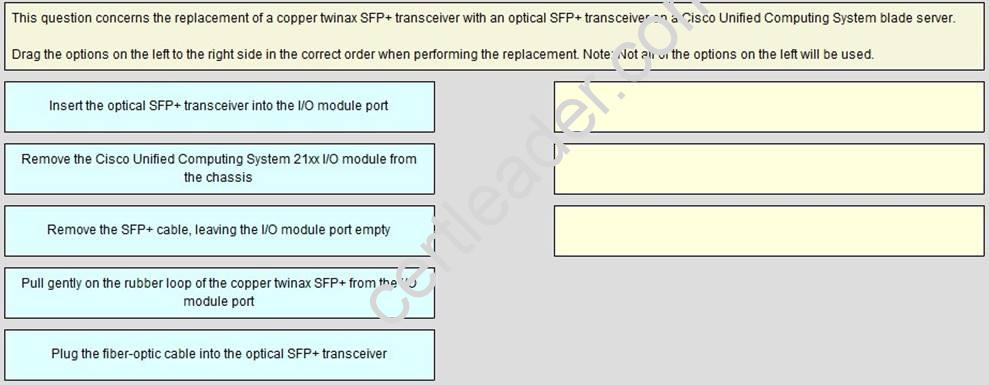

NEW QUESTION 1

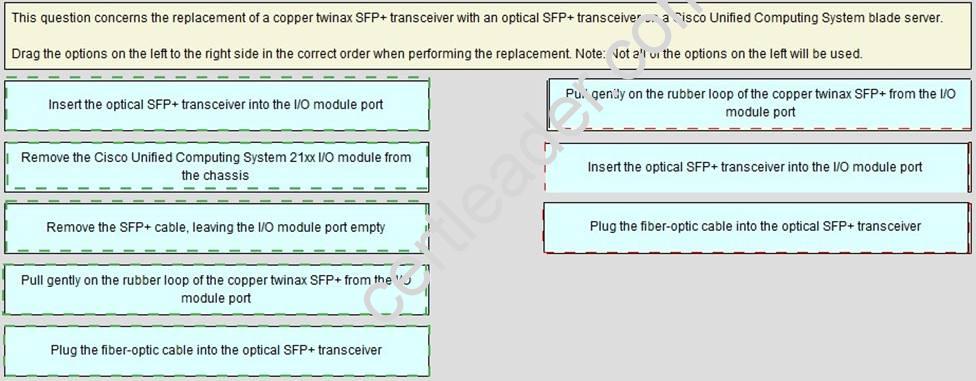

Answer:

Explanation:

NEW QUESTION 2
You plan to configure a SAN boot from the iSCSI storage of a Cisco UCS system. Which statement about an iSCSIvNIC is true?

• A. All iSCSI data traffic is carried over the vNIC after the boot.
• B. An iSCSIvNIC is an iBFT configuration placeholder for the iSCSI boot configuratio
• C. The vNIC exists only during the startup phase.
• D. Only iSCSI control date traffic is carried over the vNIC after the boot.
• E. An iSCSIvNIC is an iBFT configuration placeholder for the iSCSI boot proces
• F. The vNIC exists during and after the startup phase.

Answer: A

NEW QUESTION 3
Which three components are parts of the Cisco UCS -Series Blade Server software bundle? (Choose three.)

• A. the adapter firmware
• B. the Kernel and system firmware for fabric interconnects
• C. the BIOS firmware
• D. the IOM firmware
• E. the Cisco UCS Manager software
• F. the board controller firmware

Answer: ACF

Explanation: Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/firmware-mgmt/gui/2-2/b_GUI_Firmware_Ma

NEW QUESTION 4
In an environment where multiple LDAP servers are used for user authentication, which Cisco UCS Manager feature must be configured?

• A. LDAP Locale
• B. Organization
• C. LDAP Provider Group
• D. Authentication Domain

Answer: D

Explanation: For implementations involving multiple LDAP databases, configure an LDAP instance. Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/sample_configurations/UCSM_1_4_LDAP_w https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/AdminManagem

NEW QUESTION 5

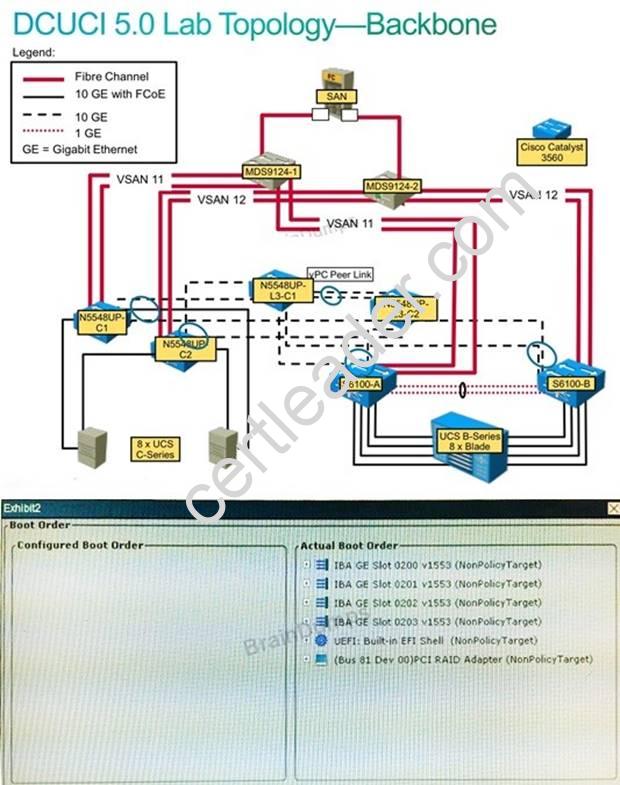

Scenario
In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager. Instructions
To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

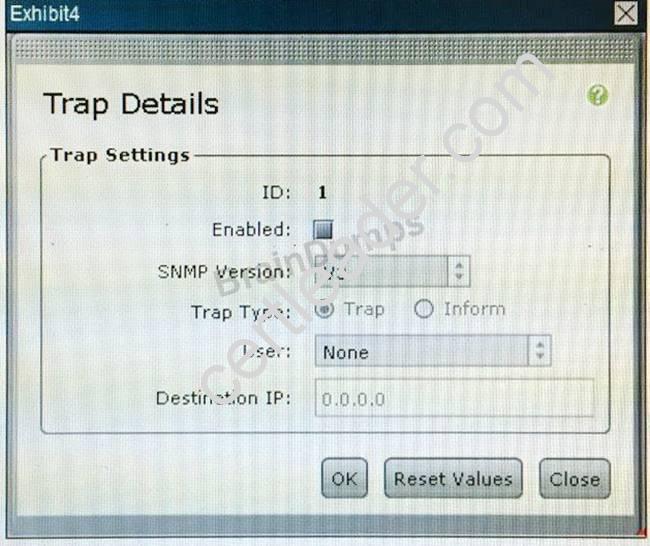

Refer to the screenshot in Exhibit 4. Once you enable an SNMP Trap destination, which SNMP Version is required to configure the Inform Trap Type?

• A. 1
• B. 2
• C. 2c
• D. 3

Answer: D

Explanation: Reference:
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nxos/system_management/configuration/guid

NEW QUESTION 6
Which statement about an iSCSIvNIC when it is created with an overlay NIC is true?

• A. It can have any VLAN allowed on it.
• B. It can be assigned a unique MAC address.
• C. It can have a unique pin group assigned to it.
• D. It can have only the overlays native VLAN associated to it.

Answer: D

NEW QUESTION 7
Which backup option must be performed from the Cisco UCS Manager to allow for a system restore?

• A. Database backup
• B. Logical configuration
• C. System configuration
• D. Full state
• E. All configuration

Answer: D

Explanation: Reference:
http://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Co nfiguration_Guide_141_chapter43.html

NEW QUESTION 8
Which two features in Cisco UCS Manager are required to configure Uplink Ethernet ports? (Choose two.)

• A. vNIC templates
• B. LAN Pin Groups
• C. VLAN groups
• D. adapter policies
• E. link profiles

Answer: AB

Explanation: Reference:
https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-6120xp-20-port-fabricinterconnect/1
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/ b_UCSM_GUI_Configuration_Guide_2_2/using_the_lan_uplinks_manager.html

NEW QUESTION 9
When implementing a Cisco UCS C-series standalone server, which of the following Cisco Integrated Management Controller NIC modes allow use of the least number of physical ports while providing maximum levels of redundancy?

• A. dedicated
• B. shared LOM
• C. shared LOM 10G
• D. Cisco VIC

Answer: D

NEW QUESTION 10
Which two are true with respect to the unified ports on the Cisco Unified Computing System 62XX Fabric Interconnect? (Choose two.)

• A. The port mode is automatically discovered after plugging in a LAN or Fibre Channel-attached cable.
• B. By default, unified ports that are changed to Ethernet port mode are set to uplink Ethernet port type.
• C. Ethernet ports must be grouped together in a block and must start with the first port and end with an odd numbered port.
• D. After making Ethernet and Fibre Channel ports is supported on the expansion module.
• E. After making port mode changes on an expansion module, the module will reboot.
• F. In a standalone configuration, making port mode changes to the fixed module will not cause the fabric interconnect to reboot.

Answer: CE

NEW QUESTION 11
Which BIOS setting is required for a VMware ESXi 5.0 host to support Cisco VM-FEX universal pasthrough mode?

• A. VT for Directed IO
• B. ACPI 10 Support
• C. VEMDPA Agent
• D. Execute Disabled Bit
• E. Processor C State

Answer: A

NEW QUESTION 12
You plan to configure a Fibre Channel port channel on a Cisco UCS system.
What is the maximum number of port channels and ports per port channel on a Cisco UCS 6200 Series device?

• A. fourFibre Channel port channels and 24 Fibre Channel ports per port channel
• B. eightFibre Channel port channels and 24 Fibre Channel ports per port channel
• C. eightFibre Channel port channels and 16 Fibre Channel ports per port channel
• D. fourFibre Channel port channels and 16 Fibre Channel ports per port channel

Answer: D

Explanation: Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/configuration_limits/2-0/b_UCS_Configurati

NEW QUESTION 13

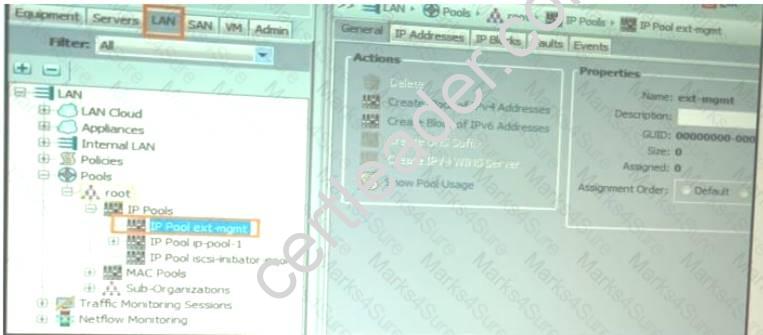

Refer to the Exhibit:

Refer to the exhibit. Which action do you take to ensure that the IP addresses in IP pool ext-mgmt are selected in a random order?

• A. Select the Default option in the Assignment Order property
• B. Delete all the IP pools except for IP pool ext-mgmt
• C. Add another block to IP pool ext-mgmt
• D. Select a pool size that is larger than 0

Answer: A

NEW QUESTION 14
Open the windows by clicking on the minimized at the bottom of the viewing area. Windows can be minimized by clicking on the [X], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Clicking the icon will open a device terminal so you can interact with the hardware.
Open the Questions window and begin by clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario

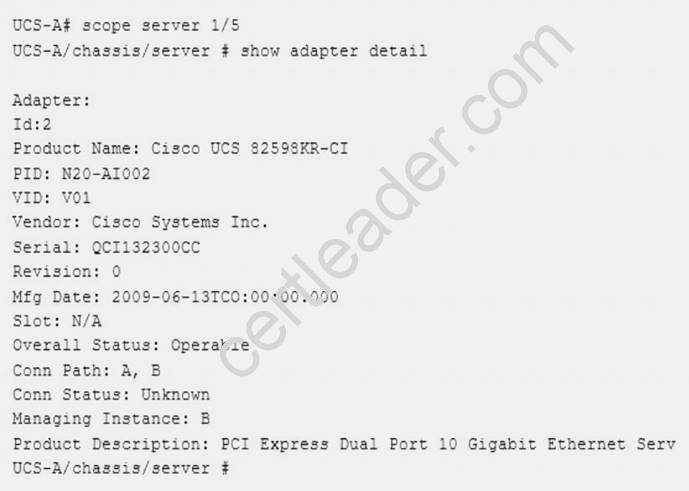

Use your UCS knowledge on Adapter errors ………………………………………configurations.

We are working on which Chassis ID?

• A. 1
• B. 2
• C. 3
• D. 4
• E. 5

Answer: A

NEW QUESTION 15
Which configuration must be made to run the fabric interconnects as a vPC pair?

• A. The Ethernet mode must be set to switching.
• B. The Layer 1 and Layer 2 cables must be configured as a vpc
• C. The fabric interconnects cannot run as a VPC pair
• D. The ethernet mode must be set to end host

Answer: C

Explanation: https://supportforums.cisco.com/t5/unified-computing-system/benefits-to-vpc-on-6200s-fabric-interconnects-inu

NEW QUESTION 16
You need to identify which DCB standard provides those functionalities negotiation capabilities for features, the distribution of parameters from one node to another, and logical link up and down signaling for both Ethernet and fibre Channel interfaces. Which DCB standard should you identity?

• A. ETS
• B. PFC
• C. DCBX
• D. QCN

Answer: C

Explanation: Reference:
https://www.cisco.com/c/dam/en/us/solutions/collateral/data-center-virtualization/ieee-802-1-data-centerbridgin https://www.cisco.com/c/dam/en/us/products/collateral/storage-networking/mds-9700-series-multilayerdirectors
