NEW QUESTION 1
Which two statements about service profile configuration option in the Cisco UCS Manager GUI are true? (Choose two.)

• A. It can be configured by using the chassis connectivity policy.
• B. it can be derived from the chassis discovery policy.
• C. it can be generated automatically from the service profile template.
• D. it can be configured by cloning a virtual machine profile
• E. it can be derived from the initial template or the updating template.

Answer: AB

NEW QUESTION 2
Which protocol is not supported for Cisco UCS backups and imports?

• A. FTP
• B. TFTP
• C. SCP
• D. SFTP
• E. HTTP

Answer: E

NEW QUESTION 3

Answer:

Explanation:

NEW QUESTION 4
Which two are true with respect to the switching modes on the Cisco Unified Computing System 62XX Fabric Interconnect? (Choose two.)

• A. End-host mode presents a link to a northbound uplink switch as a host trunk with loop detection that is provided by STP.
• B. For northbound traffic, server MAC addresses are statically pinned to an uplink; the return path is controlled by the unified fabric switches.
• C. A fabric interconnect port in Ethernet switching mode appears to the uplink switch as a host with many MAC addresses.
• D. Server-to-server traffic on a common VLAN are locally switched by the fabric interconnect and not the northbound switches.
• E. A MAC forwarding table is not used to forward traffic to the uplink switch.
• F. A MAC address forwarding table is maintained for server-to-server communications across VLANs.

Answer: DE

NEW QUESTION 5
You have a Cisco UCS system. You need to create VSAN 100 on 2 Cisco Nexus Series switch and to enable switch port fc1/10 as a member for the VLAN.
Which command set should you use?

• A. SITE-A-MDS-Fabric-A# vsan databaseSITE-A-MDS-Fabric-A (vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS-Fabric-A (vsan-db)# vsan database commit SITE-A-MDS- Fabric-A (vsan-db)# exit
• B. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A (config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# exit
• C. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A (config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# vsan database commit
• D. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A(config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# vsan database commit SITE-A-MDS-Fabric-A (config-vsan-db)# exit

Answer: B

Explanation: Reference:
https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/san-os/quick/guide/qcg_vin.html

NEW QUESTION 6
Which option describes the possible result of a customer configuring a server pool that contains Cisco UCS B200 M2 and B250 M2 blades?

• A. A service profile cannot migrate automatically from one blade to another blade within the server pool due to hardware failure.
• B. You must decommission a blade server for the associated service profile to migrate to another blade in the server pool successfully.
• C. You must uncheck the Restrict Migration box in the service profile to allow service profile migration between blades in the server pool.
• D. After service profile migration, the server fails in boot from SAN due to differences in PCI device IDs.

Answer: D

NEW QUESTION 7
Which item represents a secure method of transmitting fault data with Cisco Call Home?

• A. Cisco Transport Gateway
• B. RSADigital Certificate
• C. IPsec
• D. secure XML

Answer: A

NEW QUESTION 8

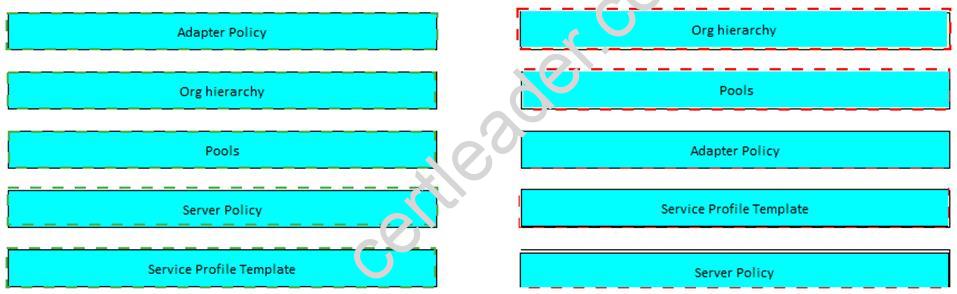

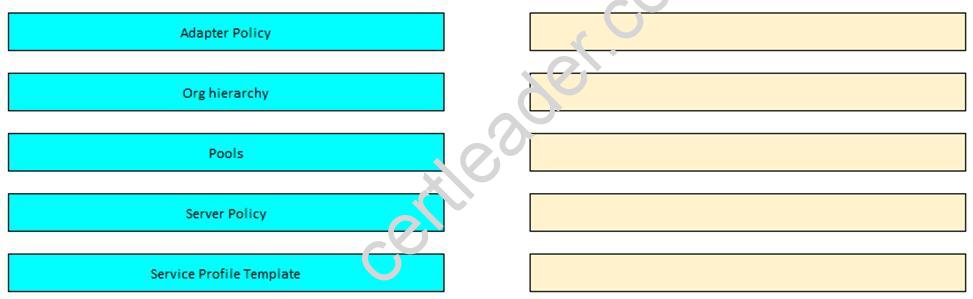

This question concerns provisioning a workload on a Cisco UCS System. Drag the options on the left to the right side in the correct order.

Answer:

Explanation:

NEW QUESTION 9
Which three options are needed when configuring local zoning on the Cisco UCS Fabric Interconnects? (Choose three.)

• A. The fabric interconnects are operating in FC switching mode.
• B. The fabric interconnects are operating in FC end-host mode.
• C. SAN connectivity policy
• D. storage connection policy
• E. FC target endpoints
• F. iSCSI target endpoints

Answer: ADE

NEW QUESTION 10

Answer:

Explanation:

NEW QUESTION 11
Which of the following is true concerning the Global Chassis Discovery policy configuration on the Cisco Unified Computing System Manager when using Cisco Unified Computing System 22XX I/O modules with Cisco UCS 62XX Fabric Interconnects?

• A. The link grouping preference should be set to discrete mode when the number of northbound links are not a power of 2.
• B. Set the action policy-count higher than the actual number of uplinks; otherwise, the Cisco Unified Computing System servers will not be discovered.
• C. For Cisco Unified Computing System implementations that mix I/O modules with different numbers of links, it is best to manually reacknowledge the chassis in order to use all available links.
• D. Automatic reacknowledgement due to chassis discovery is never disruptive.

Answer: C

NEW QUESTION 12
Which statement about Adapter FEX is true?

• A. Adapter FEX extends the fabric into the server.
• B. Adapter FEX extends the fabric into the hypervisor.
• C. Adapter FEX extends the fabric down to the FEX port.
• D. Adapter FEX extends the fabric down to the VM.

Answer: A

NEW QUESTION 13
Which two settings are required when utilizing DirectPath I/O? (Choose two.)

• A. CPU pinning
• B. full memory reservation
• C. Set port profile performance to "high".
• D. vCPU pinning
• E. VM queue modification
• F. adapter profile update
• G. Install DirectPath VIB on host.
• H. Enable VMQ with the "enable-netadaptervmq" cmdlet.

Answer: BC

NEW QUESTION 14
Open the windows by clicking on the minimized title at the bottom of the viewing area. Windows can be minimized by clicking on the [-], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Click the icon to open a device terminal to interact with the hardware.
Open the Questions window and begin with clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario
Use your UCS knowledge on Fabric Interconnect Failover to answer the questions associated with the UCS cluster.

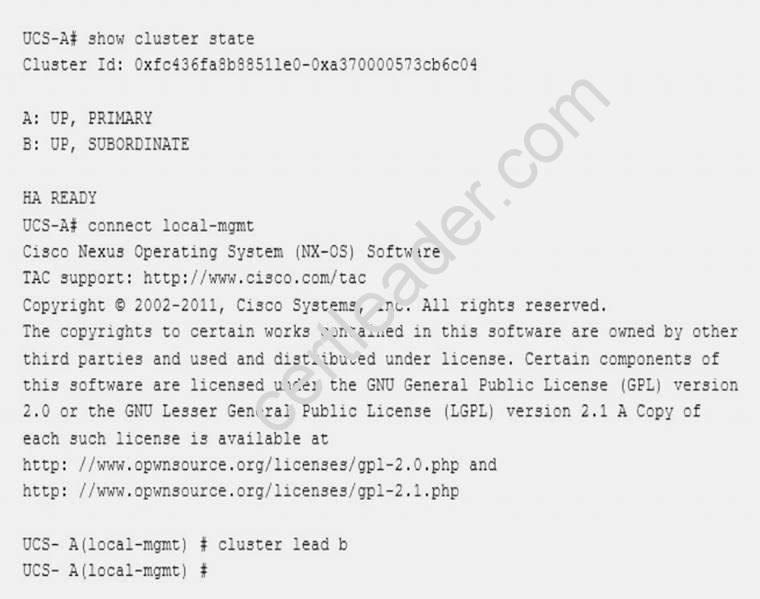

Exhibit.

The cluster lead b command represents:

• A. The cluster will go into a subordinate state.
• B. The cluster will switch fabric interconnect b from subordinate to lead or primary.
• C. The cluster will only use fabric interconnect to.
• D. The cluster will load balance traffic over Fabric Interconnects a and b.

Answer: B

NEW QUESTION 15
When adding a VMware ESXi host to the Distributed Virtual Switch, what are two risks of migrating a VMNIC that is associated to vSwitch 0? (Choose two.)

• A. loss of access to the management IP interface
• B. duplicate IP address error
• C. duplicate MAC address error
• D. loss of VMware ESXi communication with VMware vCenter
• E. DVS port group will not appear in the VM network settings
• F. DVS port group will overwrite the port groups in vSwitch 0

Answer: AD

NEW QUESTION 16

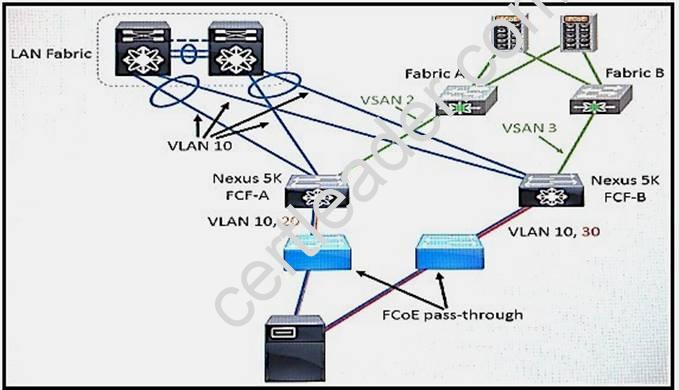

View the Exhibit.

Refer to the exhibit. Which type of FCoE topology is displayed?

• A. direct-attach
• B. remote-attach
• C. vPC
• D. FCoE with Cisco 2232 Fabric Extenders

Answer: B

Explanation: Reference:
https://www.cisco.com/c/en/us/products/collateral/switches/nexus-7000-series-switches/white_paper_c11-56040
