NEW QUESTION 1
Which two statements describe the Cisco UCS Manager full state type of backup? (Choose two.)

• A. The file created can be used for an import.
• B. The file created cannot be used to restore the system during disaster recovery.
• C. The file created can only be used to restore a system that is running the same version as the system from which the backup file was exported.
• D. It creates an XML file.
• E. It creates binary file.

Answer: CE

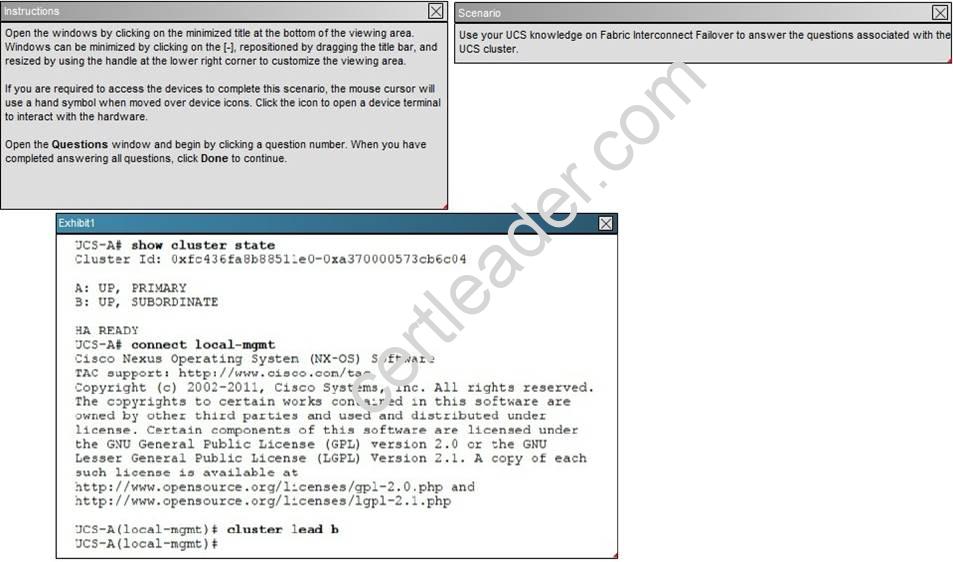

NEW QUESTION 2

Answer:

Explanation: The fabric interconnect b changes from subordinate to primary

NEW QUESTION 3
Which two policies can specify that a port channel be configured between the fabric extender and fabric interconnect? (Choose two.)

• A. Chassis or fabric extender discovery policy
• B. Rack server discovery policy
• C. Rack management connection policy
• D. Server inheritance policies
• E. Autoconfig policies
• F. Chassis connectivity policy

Answer: AF

Explanation: Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/20/b_UCSM_GUI_Configura

NEW QUESTION 4

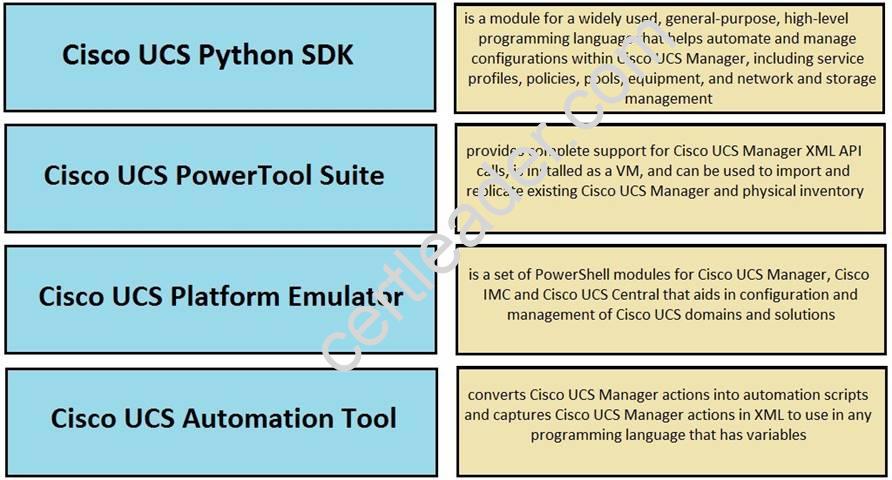

Drag and drop the scripting tools on the left to the correct definitions on the right.

Answer:

Explanation: Cisco UCS Python SDK
(provides complete suppport for cisco ucs manager XML PAI calls,is installed as a Vm,and can be used to import and replicate existing cisco ucs manager and physical inventory )
Cisco UCS Platform Emulator
(is a module for widely used,general-purpose,high-level programming language that helps automate and manage configuration within cisco ucs manager ,including service profiles,policies ,pools,equipment,am=nd network and storage management)
Cisco UCS Automation Tool
(converts Cisco UCS Manager actions into automation scripts and captures Cisco UCS Manager actions in XML to use in any programming language that has variables )
Cisco UCS PowerTool Suite
(is a set of Powershell modules for cisco ucsmanager,cisco IMC and cisco ucs Central that aids in configuration and management of cisco ucs domains and solutions )

NEW QUESTION 5
Which description of an import operation in Cisco UCS Manager is true?

• A. You can choose to merge or replace the existing UCS configuration during an import.
• B. You can import only a configuration file that was exported from the same Cisco UCS Manager.
• C. You can import a configuration from a higher release to a lower release.
• D. You can schedule an import operation.

Answer: B

NEW QUESTION 6
After staging a VEM file on a VMware ESXi 5.0 host in the /tmp directory, what is the correct command syntax to install the VEM?

• A. esxcli software vib install –d /tmp/VEM500-20110825132140-BG-release.zip-maintenance-mode
• B. esxcli software vib install –v /tmp/VEM500-20110825132140-BG-release.zip-maintenance-mode
• C. esxupdate software vib install –d /tmp/VEM500-20110825132140-BG-release.zip-maintenance-mode
• D. esxupdate software vib install –v /tmp/VEM500-20110825132140-BG-release.vib-maintenance-mode

Answer: A

NEW QUESTION 7
Which two statements about the service profile configuration options in the Cisco UCS Manager GUI are true? (Choose two.)

• A. It can be generated automatically from the service profile template.
• B. It can be derived from the chassis discovery policy.
• C. It can be derived from the initial template or the updating template.
• D. It can be configured by cloning a virtual machine profile.
• E. It can be configured by using the chassis connectivity policy.

Answer: AC

Explanation: Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration

NEW QUESTION 8
Which option describes what Cisco Integrated Management Controller Network Security provides?

• A. protection against DDoS on the Cisco IMC
• B. a whilelist that specifies the servers allowed to access the Cisco IMC
• C. 802.1x support, allowing the Cisco IMC to log in to a port security network
• D. user-configured ACLs to block known bad servers from accessing the Cisco IMC

Answer: A

NEW QUESTION 9
Which feature must be configured for Linux VMs to be able to transition from Cisco VM-FEX standard mode to universal passthrough mode?

• A. RSS
• B. MSI Interrupt Mode
• C. VEMDPA Agent
• D. Execute Disabled Bit
• E. Processor C State

Answer: B

NEW QUESTION 10

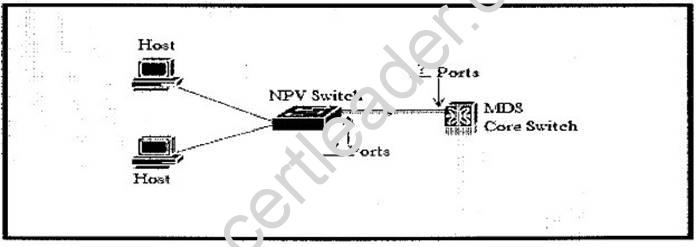

View the Exhibit.

Refer to the exhibit. An engineer is implementing a new network design that includes a port channel to connect an MDS core switch and an NPV switch.
Which two Fibre Channel port types must be used to create the Fibre Channel port channel? (Choose two.)

• A. F Port
• B. NP Port
• C. NL Port
• D. E Port
• E. N Port
• F. TL Port

Answer: AB

Explanation: Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/4_1/configuration/guides/cli_4_1/clibo

NEW QUESTION 11
Which three statements about default settings for fabric interconnect uplink ports are true? (Choose three.)

• A. When a VLAN is configured, it is trunked on all uplinks.
• B. Specific VLANs are trunked on specific uplinks.
• C. UDLD is enabled.
• D. UDLD is disabled.
• E. Cisco Discovery Protocol is enabled.
• F. Cisco Discovery Protocol is disabled.
• G. They connect to the I/O modules.

Answer: ADE

NEW QUESTION 12
If there are four I/O module links from the Cisco Unified Computing System 5108 Blade Chassis to the Cisco Unified Computing System 6248UP Fabric Interconnect, which dynamic vNICs can be defined?

• A. 9
• B. 16
• C. 24
• D. 48
• E. 54
• F. 112

Answer: E

NEW QUESTION 13
You need to upgrade the firmware on 15 Cisco UCS C-Series Rack Servers. Ten of the servers are integrated in a Cisco UCS cluster, and the other five servers are used in standalone mode. The Cisco UCS C-Series Rack-Mount Server Software Bundle is available.
Which set of statements about the upgrade process is true?

• A. You cannot upgrade the firmware on the servers in standalone mod
• B. You must cluster the servers first over LAN or via cluster interface
• C. After the firmware upgrade, you can revert the five servers to standalone mode.
• D. You cannot use the Cisco UCS C-Series Rack-Mount Server Software Bundle with Cisco UCS C-Series Servers in standalone mod
• E. You must download and use the Cisco UCS C-Series Rack-Mount Standalone Server Software package.
• F. First, you must integrate the standalone servers into the Cisco UCS syste
• G. Then, you can upgrade the firmware on all 15 servers from Cisco UCS Manage
• H. Finally, you can revert the five servers to standalone mode.
• I. You can upgrade the firmware on all of the Cisco UCS C-Series Rack Servers by using the Cisco UCS C-Series Rack-Mount Standalone Server Softwar
• J. You can upgrade the 10 servers that are integrated in a Cisco UCS cluster in Cisco UCS Manager, and you can upgrade the five standalone servers one by one.

Answer: D

Explanation: Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c-series_integration/ucsm3-1/b_C-SeriesIntegrati

NEW QUESTION 14
Which two statements about the provisioning of Cisco VM-FEX DirectPath I/O mode are true? (Choose two.)

• A. The VT-D feature on the ESX host server must be disabled before you can enable VMDirectPath.
• B. VM-FEX standard mode is the same as VM-FEX high-performance mode.
• C. Enabling high performance turns on VMDirectPath mode.
• D. VMDirectPath mode prevents the use of VMware vMotion.
• E. To use Cisco VM-FEX DirectPath I/O mode, a virtual machine must have a dynamic vNIC and two static vNICs on the VIC adapter.

Answer: CE

Explanation: Reference:
http://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/unifiedcomputing/vm_fex_best_pra

NEW QUESTION 15
Where would you disable or enable Cisco Discovery Protocol?

• A. LAN connectivity policy
• B. service profile
• C. network control policy
• D. LAN uplinks manager

Answer: C

NEW QUESTION 16
In which situation would you be required to change a Cisco UCS system from end-host mode to switching mode?

• A. Design requirements call for the use of fabric failover.
• B. Fabric interconnect is connecting to disjoint Layer 2 networks upstream.
• C. HSRP routers are directly connected to the fabric interconnect.
• D. Upstream Cisco Nexus 5000 is configured for vPC.

Answer: C
